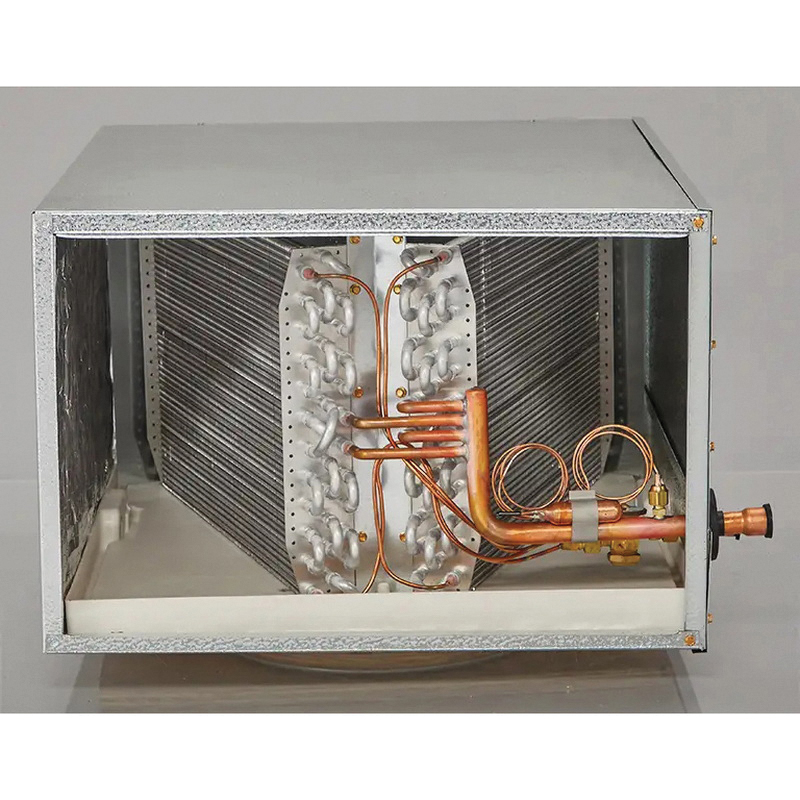

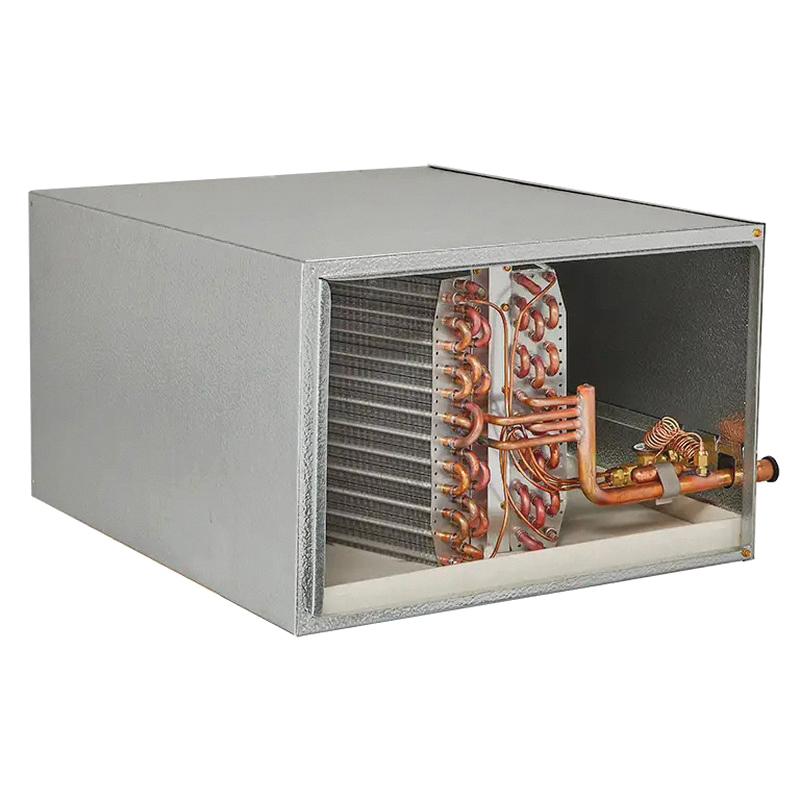

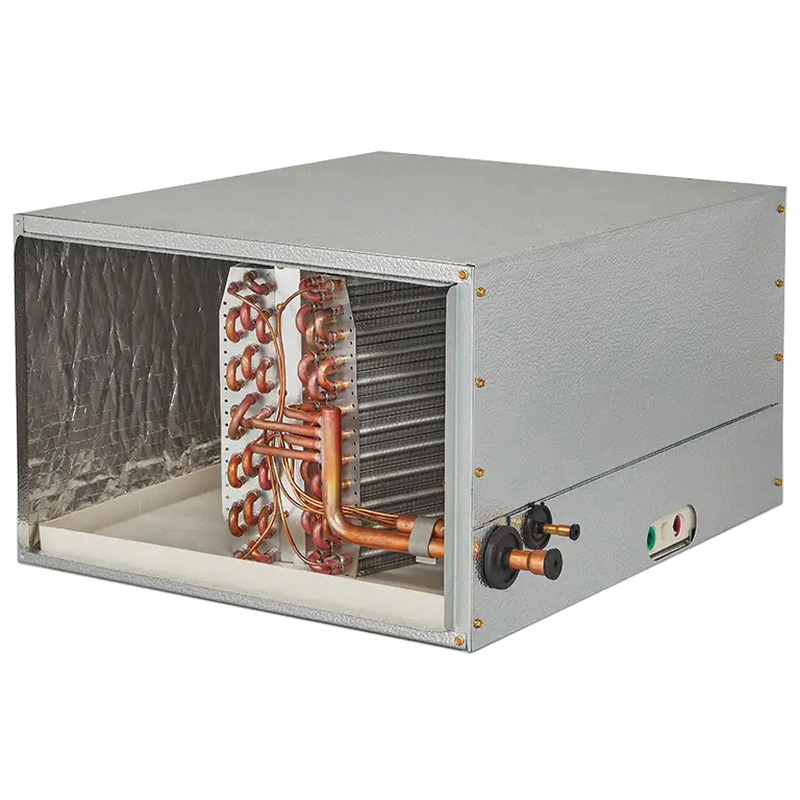

ADP® HD19660E210B2647AP HD Series Evaporator Coil, 3.5 to 5 ton, 60000 Btuhr, 1400 to 2000 cfm, Copper
ADP® HD19660E210B2647AP HD Series Evaporator Coil, 3.5 to 5 ton, 60000 Btuhr, 1400 to 2000 cfm, Copper
Manufacturer: Advanced Distributor Products
Brand: ADP®
Part #: 307019
MPN: HD19660E210B2647AP
CPN:
| BTU Rating | : | 60000 Btu/hr |
| CFM Rating | : | 1400 to 2000 cfm |
| Color | : | Embossed |
| Configuration | : | Horizontal |
| Connection Size | : | 3/8 x 7/8 in |
| Connection Type | : | ODF |
| Dimensions | : | 26-1/2 in L x 21-1/2 in W x 21 in H |
| Finish | : | Galvanized |
| Material | : | Copper |
| Piston Size | : | #93 |
| Pressure Rating | : | 500 psi |
| Refrigerant Type | : | R-410A |
| Series | : | HD Series |
| Suitable For Use With | : | A1 Refrigerants |
| Temperature Rating | : | 450 deg F |
| Tonnage | : | 3.5 to 5 ton |
ADP® Evaporator Coil, HD Series, 60000 Btu/hr, Horizontal, 1400 to 2000 cfm, Tonnage: 3.5 to 5 ton, R-410A Refrigerant, 3/8 x 7/8 in Connection, ODF Connection, #93 Piston, 500 psi, 450 deg F, Copper, Finish: Galvanized, Embossed, 26-1/2 in L x 21-1/2 in W x 21 in H, For Use With: A1 Refrigerants
- FlexCoil: Engineered for all refrigerants
- Dedicated horizontal coils offering the perfection solution for crawl spaces
- Counterflow capable to meet any airflow direction
- Side refrigerant connections for easy access to coil
- Built-in plenum flanges with rounded corners for fast and safe installation
