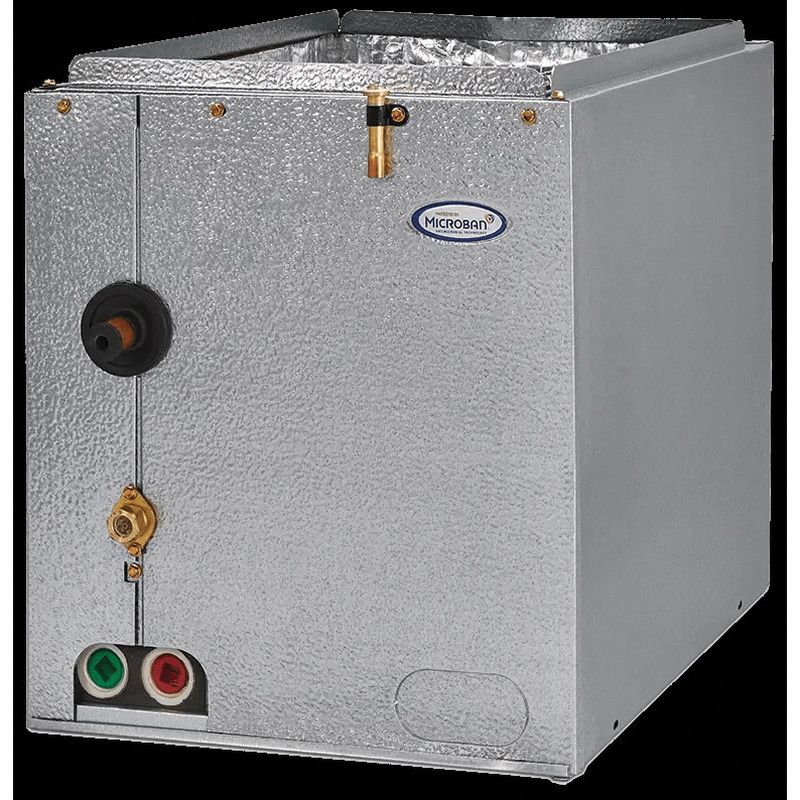

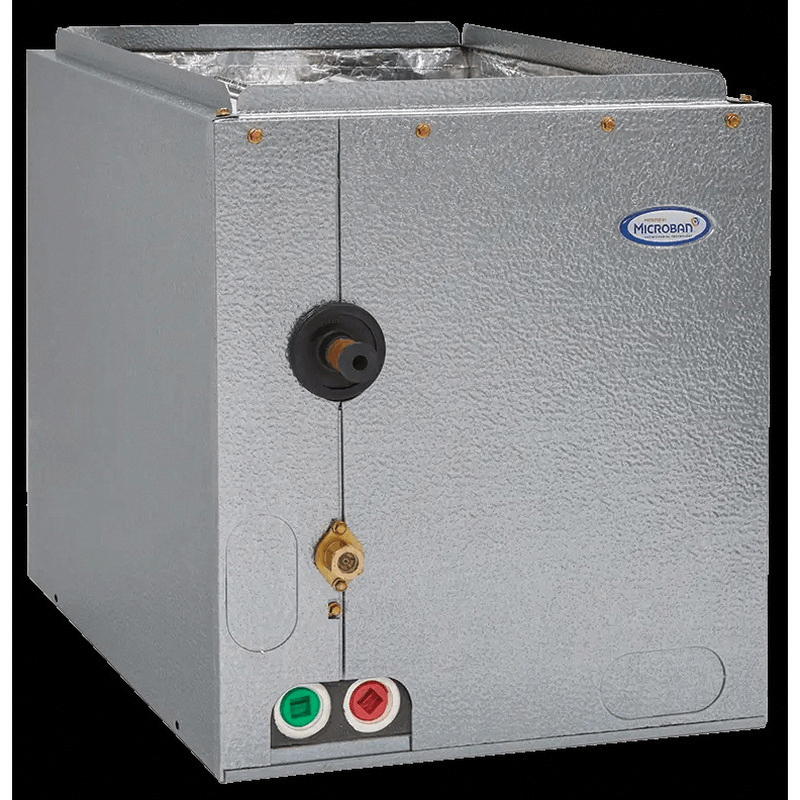

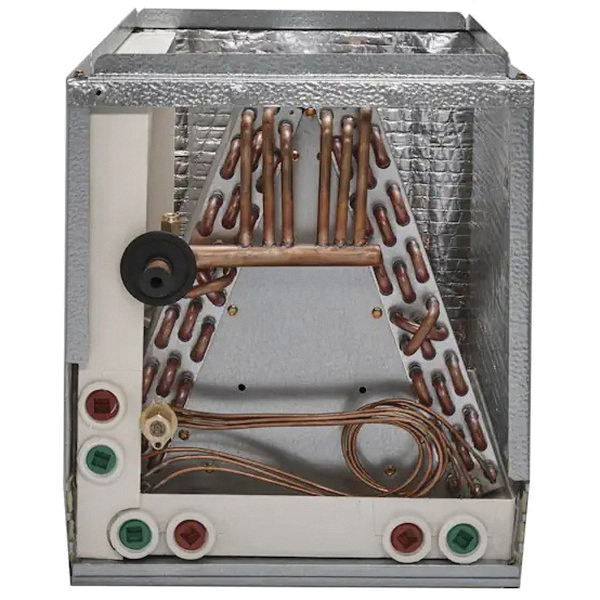

ADP® HE36936C145B2522AP HE Series Evaporator Coil, Left Hand Cased, Multi-Position Coil, 36000 Btuhr, 1200 cfm, Copper
ADP® HE36936C145B2522AP HE Series Evaporator Coil, Left Hand Cased, Multi-Position Coil, 36000 Btuhr, 1200 cfm, Copper
Manufacturer: Advanced Distributor Products
Brand: ADP®
Part #: 307032
MPN: HE36936C145B2522AP
CPN:
| BTU Rating | : | 36000 Btu/hr |
| CFM Rating | : | 1200 cfm |
| Coil Type | : | Left Hand Cased, Multi-Position |
| Color | : | Embossed |
| Configuration | : | Multi-Position |
| Connection Size | : | 3/4 in |
| Connection Type | : | ODF |
| Dimensions | : | 25-1/2 in H x 14-1/2 in W x 20-1/2 in D |
| Domestic/Import | : | Domestic |
| Finish | : | Galvanized |
| Material | : | Copper |
| Piston Size | : | #67 |
| Pressure Rating | : | 500 psi |
| Refrigerant Type | : | R-410A |
| Series | : | HE Series |
| Suitable For Use With | : | A1 Refrigerants |
| Temperature Rating | : | 450 deg F |
ADP® Evaporator Coil, HE Series, 36000 Btu/hr, Multi-Position, 1200 cfm, R-410A Refrigerant, Left Hand Cased, Multi-Position Coil, 3/4 in Connection, ODF Connection, #67 Piston, 500 psi, 450 deg F, Copper, Finish: Galvanized, Embossed, 25-1/2 in H x 14-1/2 in W x 20-1/2 in D, Domestic/Import: Domestic, For Use With: A1 Refrigerants
- FlexCoil: Engineered for all refrigerants
- Lower heights and variable widths for a perfect furnace fit
- Cased, uncased, multi-position and upflow/ downflow configurations
- Built-in plenum flanges with rounded corners for fast and safe installation
- Front panel with only four screw access and non-captive refrigerant lines for fast and easy coil access
- Painted cabinet options for furnace color coordination
