| BTU Rating | : | 48000 Btu/hr |
| CFM Rating | : | 1600 cfm |
| Coil Type | : | Left Hand Cased |
| Configuration | : | Multi-Position |
| Connection Size | : | 7/8 in |
| Connection Type | : | ODF |
| Dimensions | : | 25-1/2 in H x 24-1/2 in W x 20-1/2 in D |
| Domestic/Import | : | Domestic |
| Material | : | Copper |
| Piston Size | : | #76 |
| Pressure Rating | : | 500 psi |
| Refrigerant Type | : | R-410A |
| Suitable For Use With | : | A1 Refrigerants |
| Temperature Rating | : | 450 deg F |

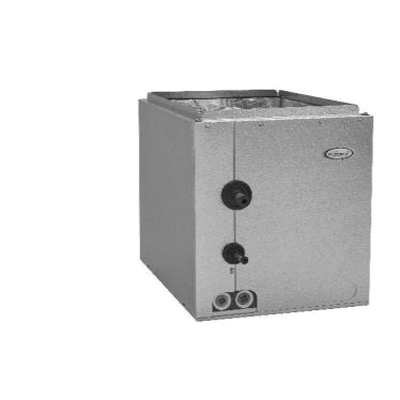

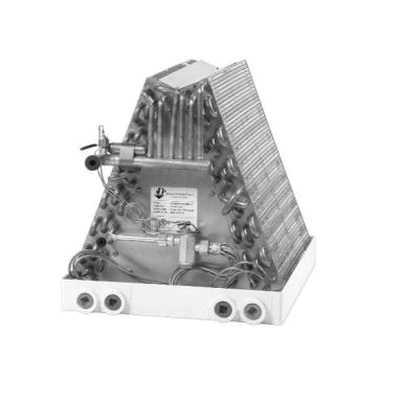

ADP® Evaporator Coil, 48000 Btu/hr, Multi-Position, 1600 cfm, R-410A Refrigerant, Left Hand Cased Coil, 7/8 in Connection, ODF Connection, #76 Piston, 500 psi, 450 deg F, Copper, 25-1/2 in H x 24-1/2 in W x 20-1/2 in D, Domestic/Import: Domestic, For Use With: A1 Refrigerants
- High efficiency lanced fin design
- All coils have durable packaging with bar coded labels on the box
- Threaded expansion valves available factory installed or as a field installed kit
- Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air
- Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan
- UV resistant drain pans are molded of high temperature (450 deg. F) engineered polymer
- Dual 3/4" FPT condensate drains on front-left and front-right side of drain pans
- Patented HydroTEC™ low water retention drain pan
- Copper refrigerant connections for easy brazing on both copper and aluminum slab models
- Intertek lab tested 1% or less cabinet air leakage for better efficiency
- Cased coil cabinets are fully lined with 5/8" foil faced insulation.
- Optional painted or embossed galvanized steel cabinets
- Short cabinet with easy access
- Non-captive refrigerant lines with long stubs make for easy installation
- Enhanced refrigerant pipe grommets: secure, tight, and easy to install
- Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV
- Expansion valve with improved temperature sensing
- Multi-position coils are upflow, left or right airflow capable
- Cabinet insulation hold down tabs for easy drain pan removal
- Interlocking doors reduce air leakage and allow for easy access
