| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 48,000 BTU/h |
| BTU Cooling Rating | : | 48,000 BTU/h |
| CFM Airflow (Custom) | : | 1,100~1,200~1,300~1,400~1,500~1,600~1,700~1,800~1,900~2,000 CFM |
| CFM Airflow | : | 1,157-1,918 CFM |
| Depth | : | 24 in |
| Drain Pan Material | : | Composite / Polymer |
| Filter Size | : | 20 x 22 in |
| Height | : | 54.5 in |
| Integrated Mitigation Control | : | Yes |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | BIVA |
| Motor Type | : | Constant Torque ECM |
| Number of Speeds | : | 4 |
| Packaged Depth | : | 27.688 in |
| Packaged Height | : | 60.625 in |
| Packaged Width | : | 24.688 in |
| Phase | : | 1 ph |
| Product Family | : | IDS Ultra |
| Product Weight | : | 154 lbs |
| Refrigerant Type | : | R-454B |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 185 lbs |
| Sound Level | : | 78 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 22 in |

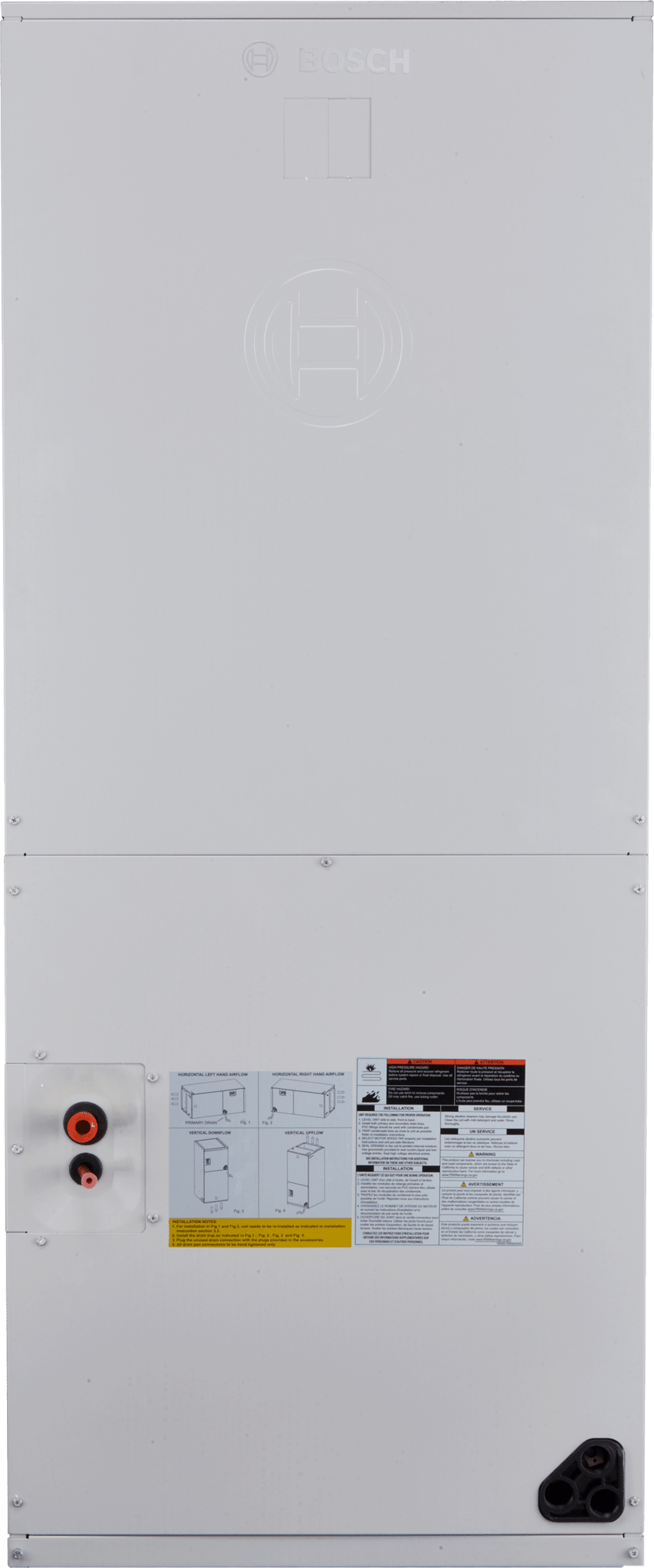

The Bosch IDS Ultra Air Handler is the indoor component designed to pair with the BOVA Ultra Series outdoor unit, creating a highly efficient heat pump system. It utilizes the low-GWP refrigerant R-454B and is engineered to deliver precise temperature and humidity control for residential applications.This unit's 4-stage ECM motor adjusts airflow to match heating and cooling demands, resulting in improved energy savings and quiet operation. Its versatile, multi-position cabinet and factory-installed TXV allow for flexible installation in new construction or retrofit projects.
- Variable-Speed Motor:Features a constant torque, multi-speed ECM motor designed for 4-stage operation to enhance comfort and humidity control.
- Durable Evaporator Coil:Includes an all-aluminum evaporator coil for superior corrosion resistance and long service life.
- Installation Flexibility:Supports multi-position installation, including upflow, downflow, and horizontal configurations to fit various applications.
- Low-Leakage Cabinet:Built with a factory-sealed, fully-insulated cabinet certified to achieve an air leakage rate of 2% or less for improved efficiency.

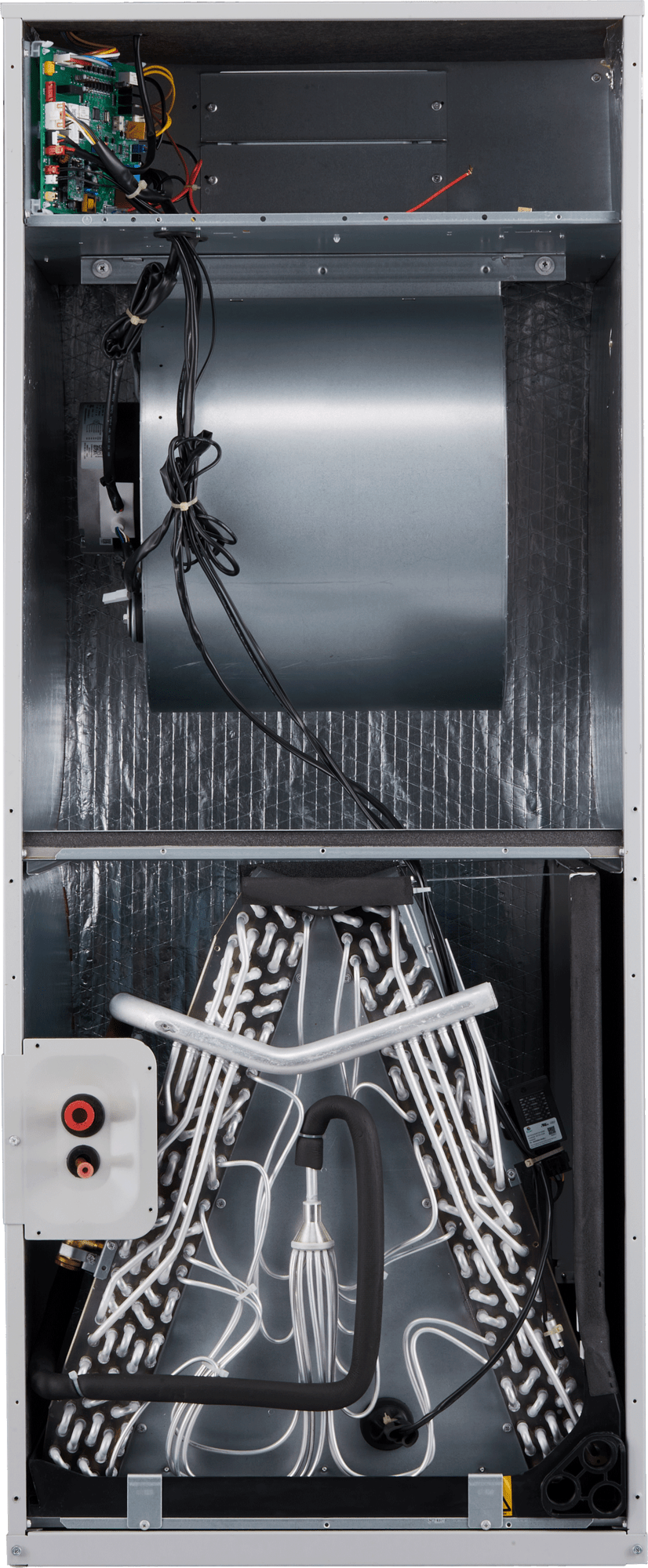

- Service-Friendly Design:Designed for ease of maintenance with a dual front panel, a slide-out blower and coil, and tool-less filter access.
- Advanced Communication:Compatible with both standard 4-wire and 2-wire digital communication for enhanced control and system performance when paired with an IDS Ultra outdoor unit.
