| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Rating | : | 36,000 BTU/h |
| Coil Casing | : | Cased |
| Coil Material | : | Aluminum Fin~Aluminum Tube |
| Depth | : | 21 in |
| Drain Pan Material | : | Plastic |
| Height | : | 20 in |
| Liquid Line Size | : | 3/8 in |
| Model Number | : | BMAC |
| Packaged Depth | : | 21 in |
| Packaged Height | : | 27 in |
| Packaged Width | : | 25 in |
| Product Family | : | BMAC Series |
| Product Weight | : | 48 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 66 lbs |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Width | : | 17.5 in |

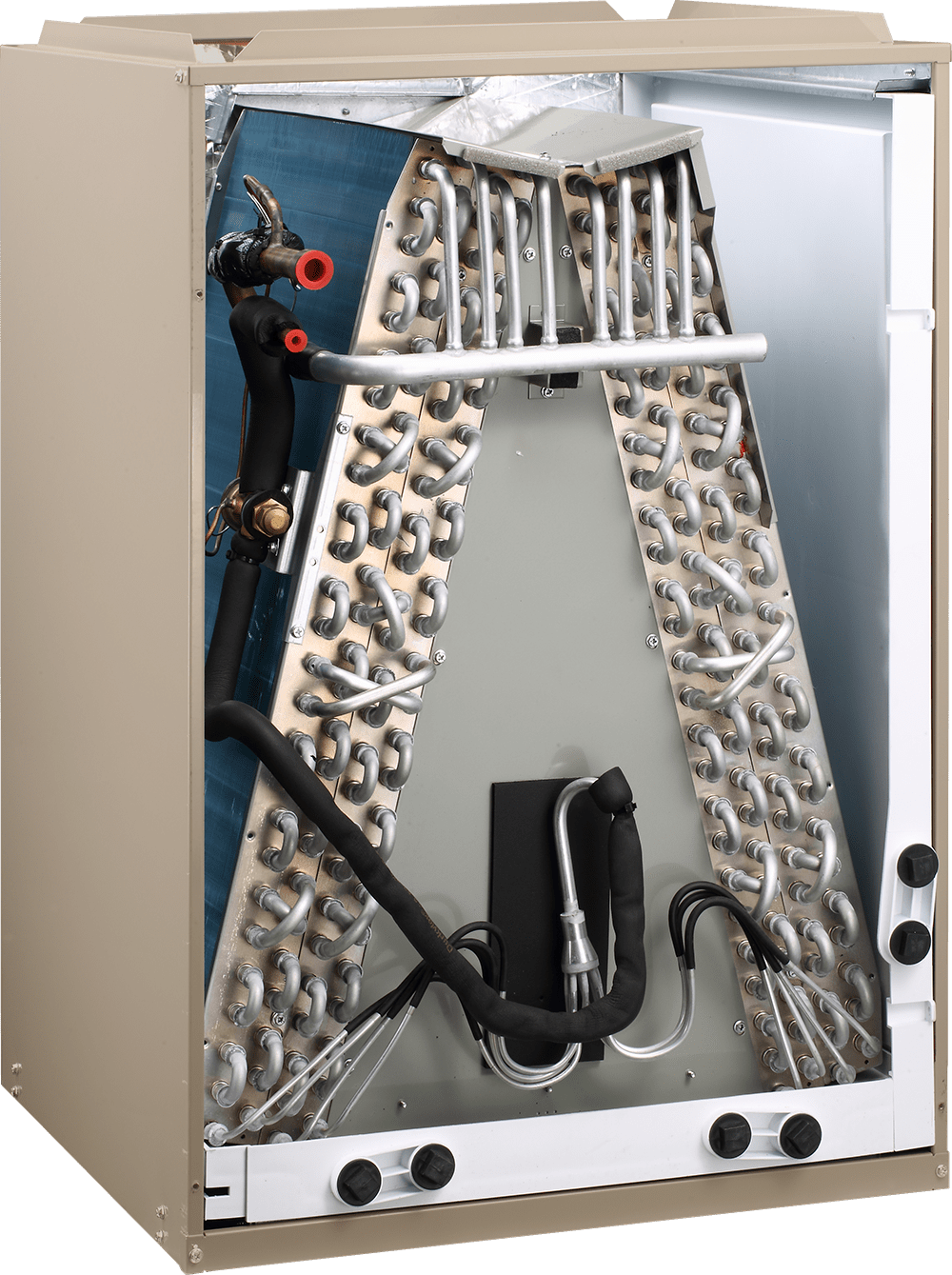

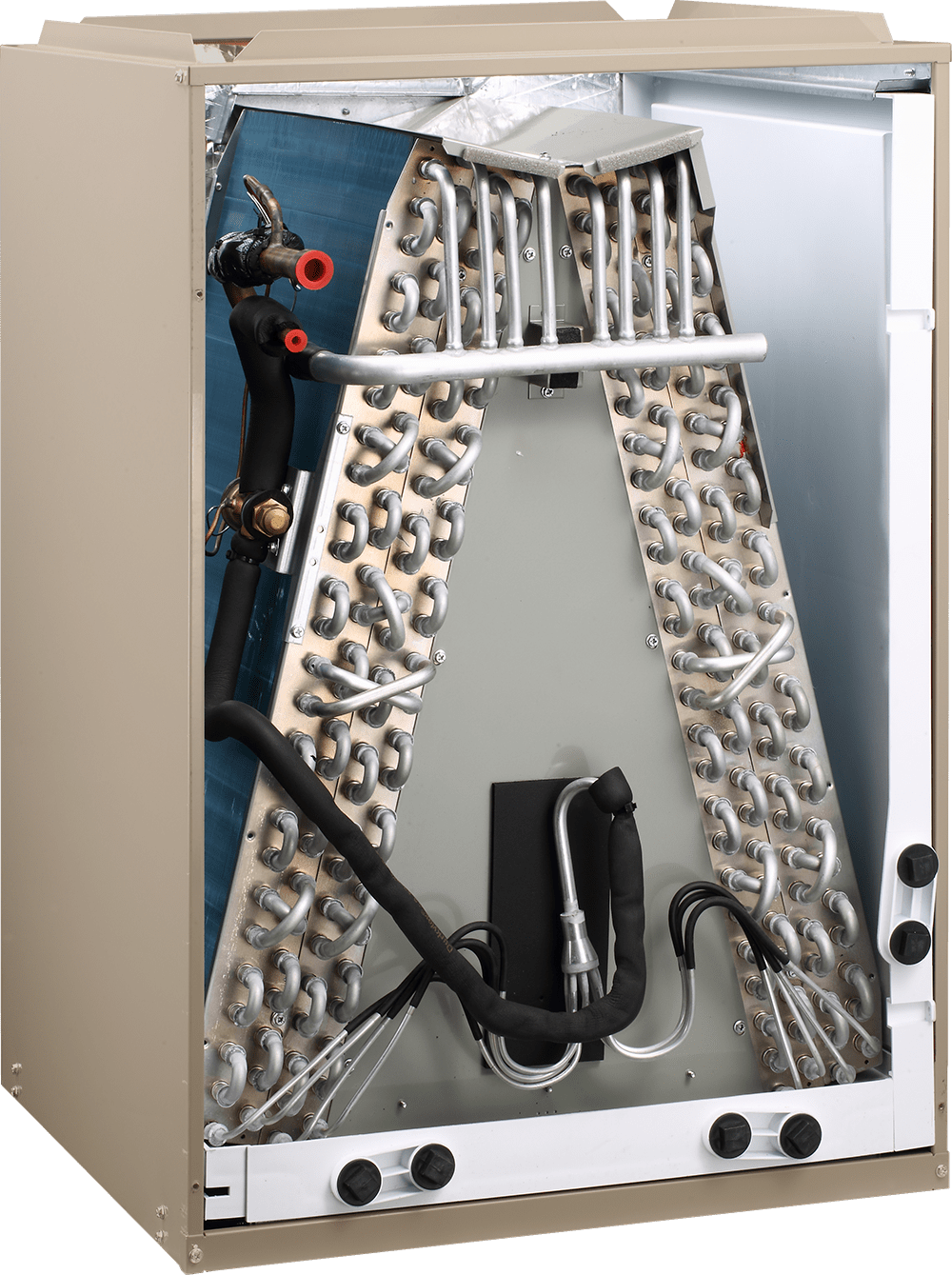

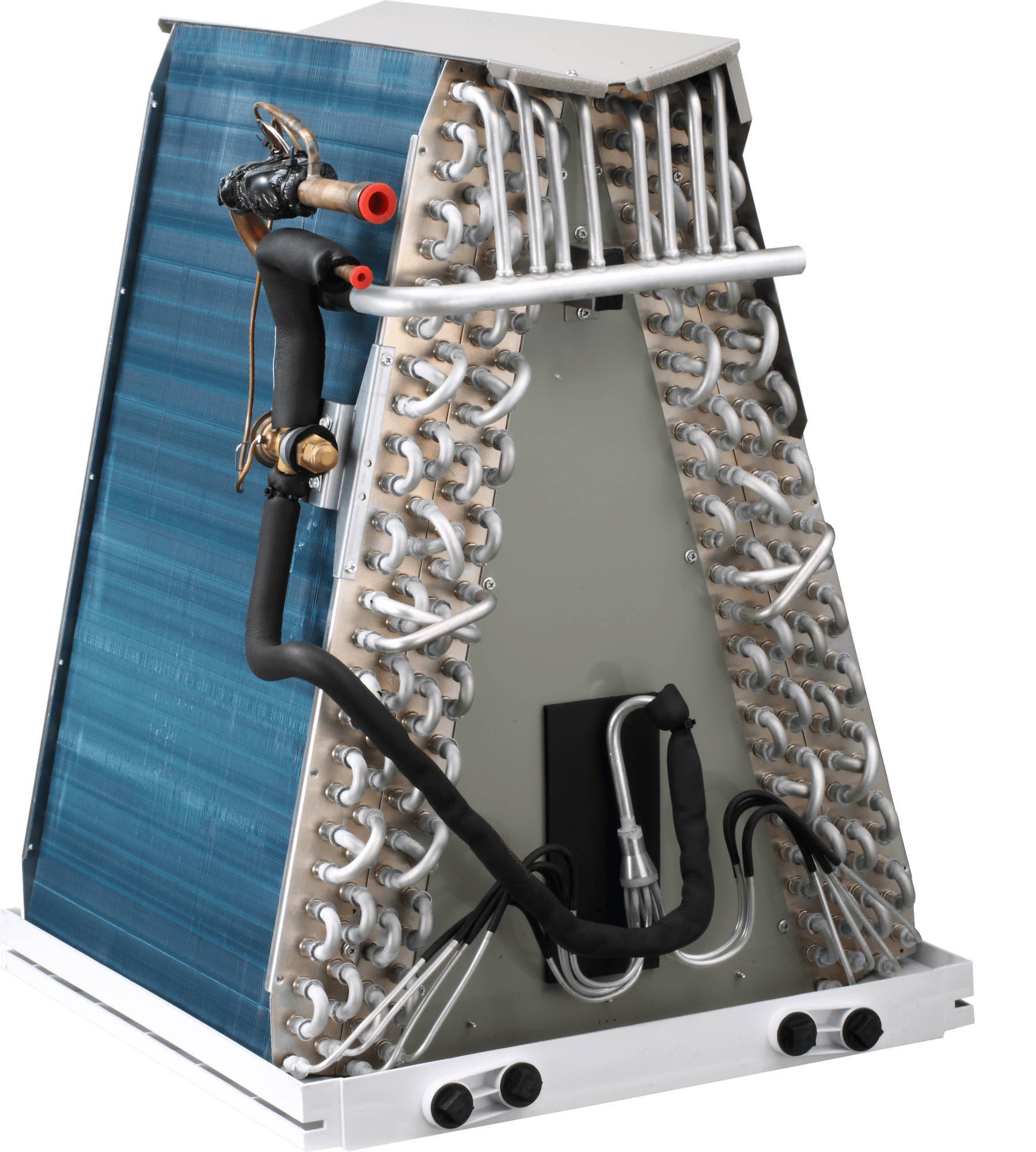

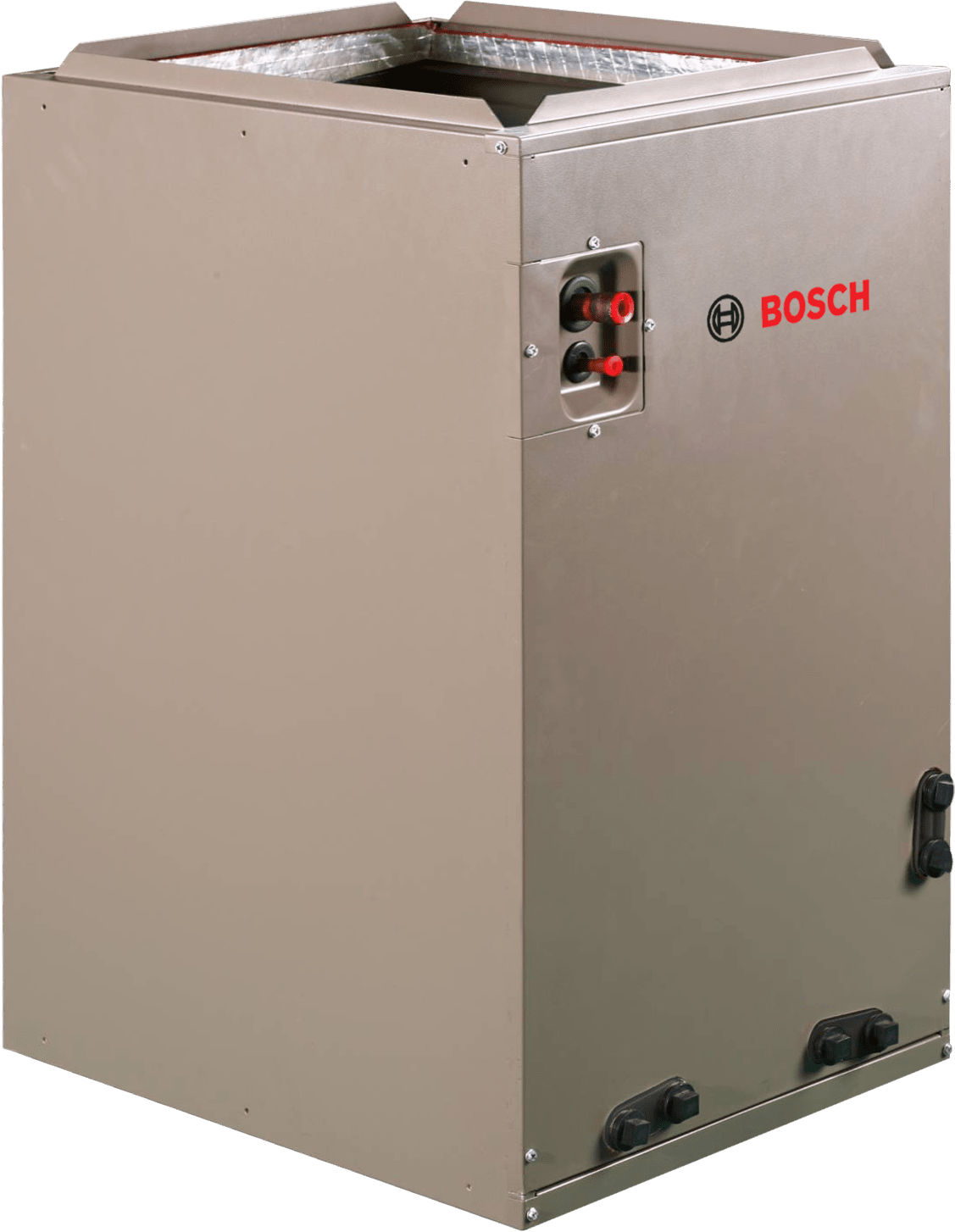

The Bosch BMAC Series is a cased A-coil designed for simple and flexible installation in a variety of applications. Its multi-position design allows for upflow, downflow, or horizontal configurations to meet specific system requirements.This unit is engineered to pair seamlessly with the Bosch BOVA 2.0 heat pump condensing section, BGH96 furnace, or SM Split geothermal condensing section, providing a complete and efficient comfort system.
