| BTU Rating | : | 44500 Btu/hr |
| CFM Rating | : | 1700/1800/1500/1800 cfm |
| Coil Type | : | Cased |
| Configuration | : | Down Flow, Horizontal Left, Horizontal Right, Up Flow |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT |
| Dimensions | : | 30 in H x 17-1/2 in W x 21 in D |
| Flow Rate | : | 1150 cfm |
| Material | : | Aluminum |
| Mounting Type | : | Horizontal, Vertical |
| Nominal Capacity | : | 48000 Btu/hr |
| Refrigerant Type | : | R-410A |
| Series | : | BMAC Series |
| Tonnage | : | 4.5 ton |

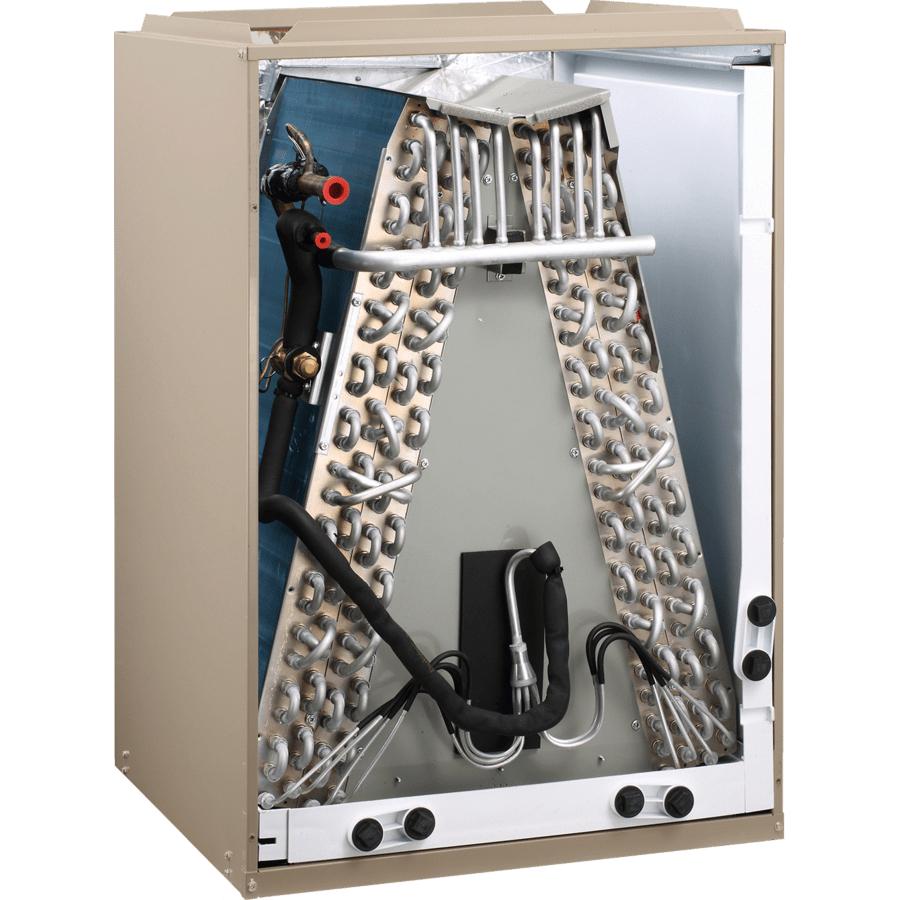

BOSCH Coil, BMAC Series, 48000 Btu/hr Nominal Capacity, 44500 Btu/hr, Down Flow, Horizontal Left, Horizontal Right, Up Flow, 1700/1800/1500/1800 cfm, Tonnage: 4.5 ton, R-410A Refrigerant, Horizontal, Vertical Mounting, Cased Coil, 3/4 in Connection, FNPT Connection, 1150 cfm Flow Rate, Aluminum, 30 in H x 17-1/2 in W x 21 in D
- Air source heat pump and geothermal accessory from Bosch
- Complete product range from 2 to 5 ton
- All Aluminum coils for superior corrosion resistance
- Multi-position drain pan to meet most application needs

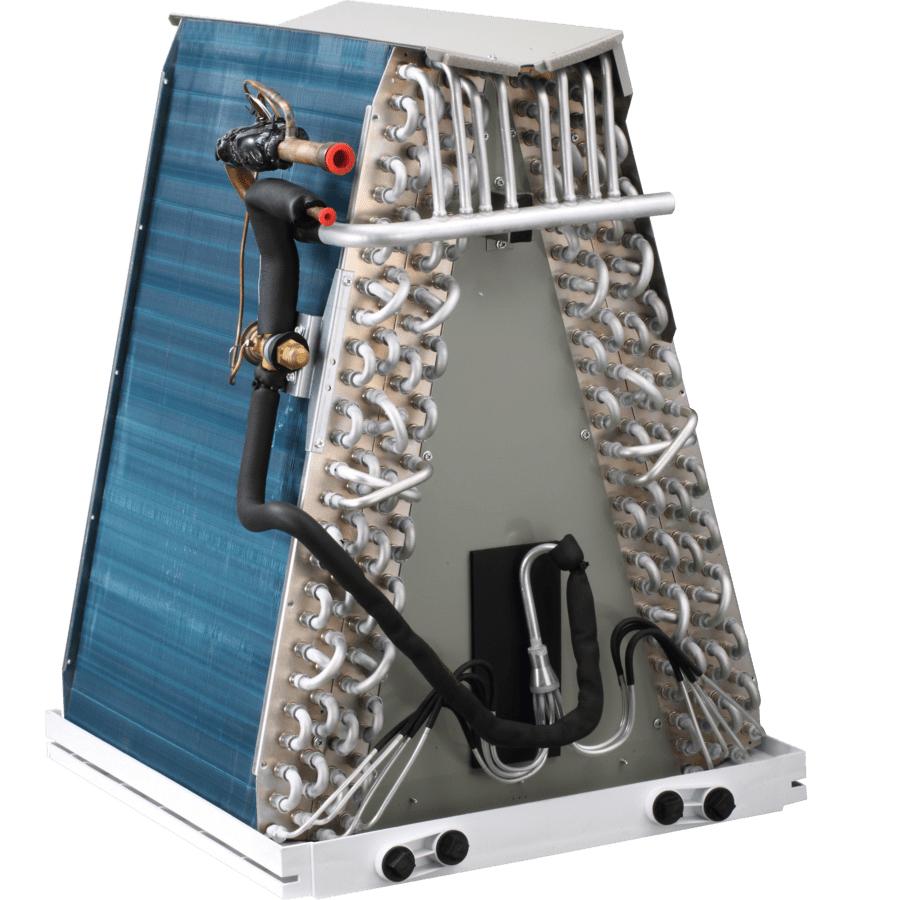

- Compact Design - Bosch Cased Coil and Uncased Coil units (BMAC) deliver unmatched performance and efficiency levels. Bosch offers a complete range of evaporator coils, from 2-5 tons, to fit your needs and deliver maximum comfort to homeowners
- Easy, Flexible Install - This unit is designed to pair easily with Bosch ASHP Condensing Section (BOVA2.0), Bosch 96% AFUE Furnace (BGH96) or Bosch WSHP Condensing Section (SM Split). Built for simple installation across a number of applications (HZ or VT), the Bosch Cased Coil and Uncased Coils will provide comfort and peace of mind
