| BTU Cooling Rating (Custom) | : | 48,000 BTU/h |
| BTU Cooling Rating | : | 47,000 BTU/h |
| BTU Heating Rating (Custom) | : | 48,000 BTU/h |
| BTU Heating Rating | : | 49,000 BTU/h |
| Compressor Type | : | Rotary |
| Depth | : | 16.34 in |
| EER (Custom) | : | 11.0~12.0 |
| EER2 (Custom) | : | 11.0~12.0 |
| EER2 | : | 11.7-12.0 |
| EER | : | 11.7-12.0 |
| ENERGY STAR Certified | : | Yes |
| HSPF (Custom) | : | 11.0 |
| HSPF2 (Custom) | : | 9.0~10.0~11.0 |
| HSPF2 | : | 9.0-11.0 |
| HSPF | : | 11.0 |
| Height | : | 52.48 in |
| Liquid Line Size | : | 1/4 in |
| Max Breaker Size | : | 40 A |
| Model Number | : | BMS500 |
| Number of Stages | : | Variable-Stage |
| Number of Zones | : | 6 |
| Packaged Depth | : | 37.48 in |
| Packaged Height | : | 52.48 in |
| Packaged Width | : | 16.34 in |
| Phase | : | 1 ph |
| Product Family | : | Climate 5000 |
| Product Type | : | Heat Pump |
| Product Weight | : | 246.47 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 (Custom) | : | 20.0~21.0~22.0~23.0 |
| SEER2 | : | 20.4-23.0 |
| Shipping Weight | : | 276.68 lbs |
| Sound Level | : | 65 dB(A) |
| Suction Line Size | : | 3/8~1/2 in |
| Tonnage (Custom) | : | 4.0 Ton |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 37.48 in |

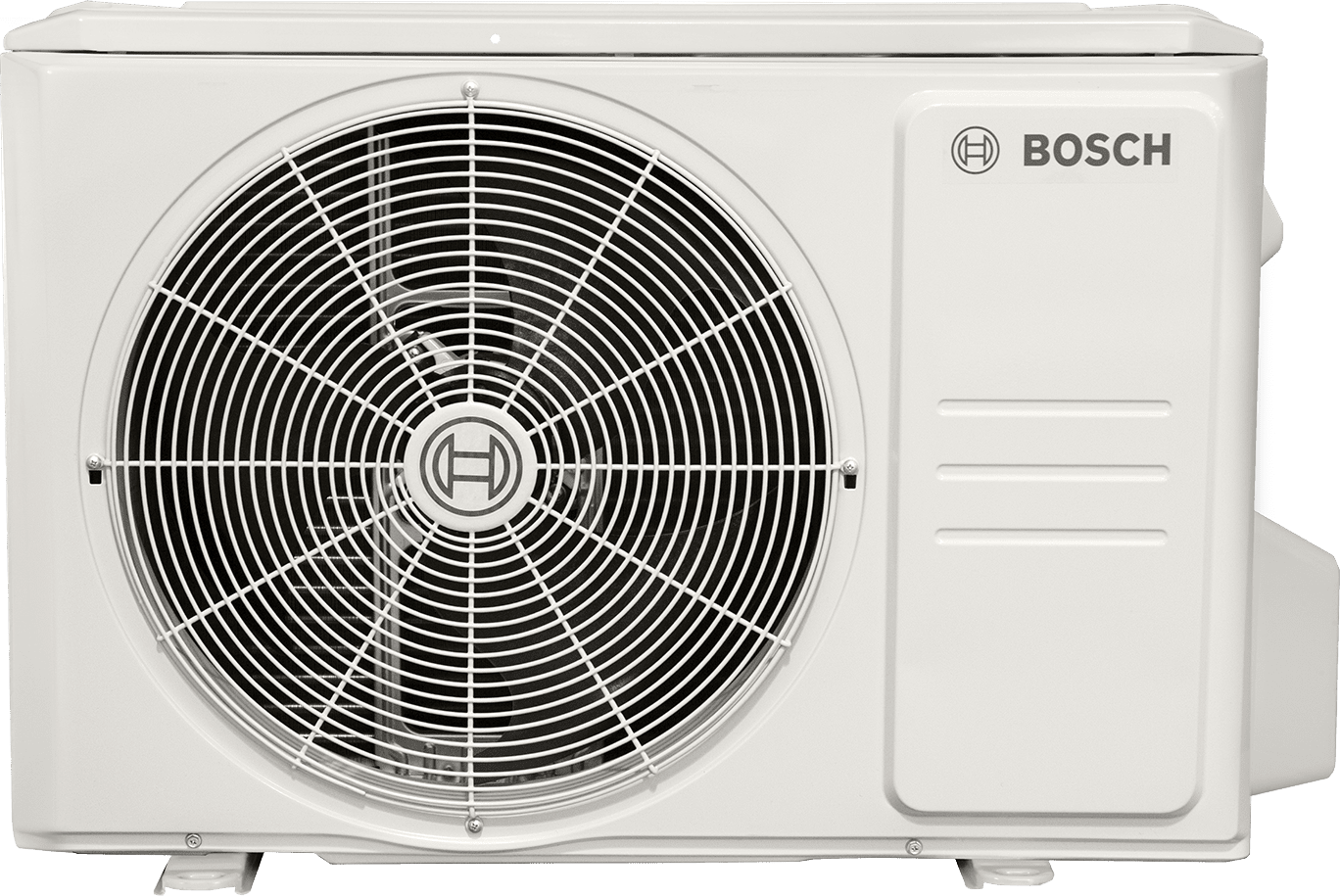

The Bosch Climate 5000 is a high-efficiency, multi-zone outdoor heat pump designed for flexible, ductless climate control in residential and light commercial spaces. This ENERGY STAR certified unit delivers significant energy savings while providing reliable heating and cooling performance, even in demanding weather conditions.Its variable-speed inverter technology allows for precise temperature management across multiple zones, ensuring consistent comfort. This makes it an ideal solution for both new installations and retrofitting existing buildings where ductwork is not feasible.
- Low-Ambient Performance:Delivers reliable heating and cooling in extreme temperatures, operating down to -22°F and providing 100% heating capacity at temperatures as low as -5°F.
- Flexible Zoning:Connects up to 6 indoor units to a single outdoor unit, providing customized comfort for multiple rooms or zones.
- Durable Compressor:Features a twin-rotary compressor design that ensures quiet, efficient, and reliable variable-stage operation.
- Base Pan Heater:Includes a factory-installed base pan heater to prevent ice buildup and ensure proper drainage during defrost cycles.
- Smart Thermostat Ready:Compatible with the Bosch Connected Control (BCC) family of Wi-Fi thermostats for convenient remote system management.
- Residential Warranty:Backed by a 10-year limited warranty on both the compressor and parts for residential applications.
