BOSCH BMS500-AAS012-1CSXHB Climate 5000 Series Mini-Split Heat Pump, 208/230 V, 9 A, 12000 Btu/hr Cooling, 1 Ph
BOSCH BMS500-AAS012-1CSXHB Climate 5000 Series Mini-Split Heat Pump, 208/230 V, 9 A, 12000 Btu/hr Cooling, 1 Ph
Manufacturer: Robert Bosch
Brand: BOSCH
Part #: 306759
MPN: BMS500-AAS012-1CSXHB
CPN:
| Amperage Rating | : | 9 A |
| Compressor Type | : | Twin-Rotary |
| Cooling BTU Rating | : | 12,000 Btu/hr |
| Cooling CFM Rating | : | 1177 cfm |
| Cooling Operating Temperature | : | -22 to 122 deg F |
| Cooling Sound Level | : | 56 dBA |
| Domestic/Import | : | Domestic |
| EER Rating | : | 12.5 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HSPF Rating | : | 10.6 |
| Heating BTU Rating | : | 12,000 Btu/hr |
| Heating Operating Temperature | : | -22 to 86 deg F |
| Liquid Line Size | : | 1/4 in |
| Mounting Type | : | Wall |
| Overall Height | : | 21.8 in |
| Overall Length | : | 13.1 in |
| Overall Width | : | 31-1/2 in |
| Phase | : | 1 ph |
| Power Rating | : | 870 W |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 19.5 |
| Series | : | Climate 5000 Series |
| Suction Line Size | : | 1/2 in |
| Tonnage | : | 1 Ton |
| Voltage Rating | : | 208/230 V |
BOSCH Mini-Split Heat Pump, Climate 5000 Series, 208/230 V, 9 A, 870 W, 60 Hz, 1 ph, 12000 Btu/hr Heating, 12000 Btu/hr Cooling, 1177 cfm Cooling CFM Rating, 12.5 EER Rating, 19.5 SEER, 10.6 HSPF, Twin-Rotary Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 1/2 in Suction Line, 15 A Fuse Rating, Tonnage: 1 ton, 56 dBA Cooling Sound Level, Wall Mounting, -22 to 86 deg F Heating Operating Temperature, -22 to 122 deg F Cooling Operating Temperature, 13.1 in Overall Length, 31-1/2 in Overall Width, 21.8 in Overall Height, Domestic/Import: Domestic
- Efficient (up to 25 SEER rating) and super quiet (as low as 20 dBA)
- Simplified installation and maintenance, no ductwork required
- Intelligent Eye infrared sensor saves energy and provides improved humidity control

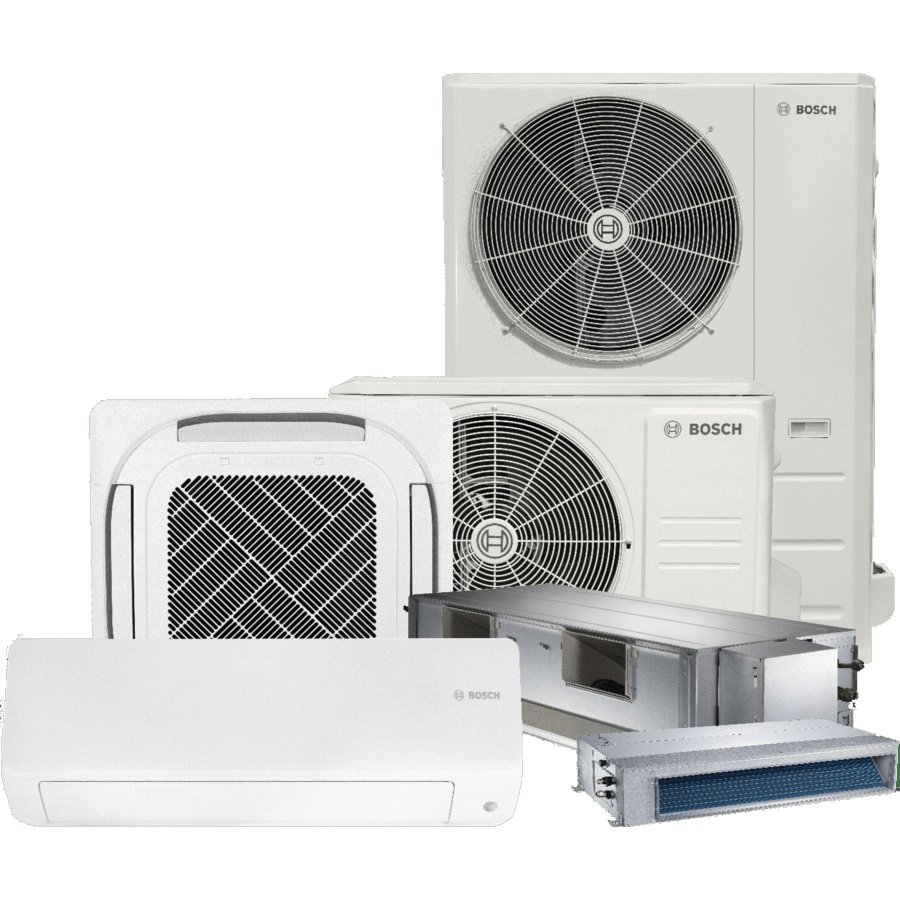

- Single and Multi Zone configurations for maximum indoor comfort
