| BTU Cooling Rating (Custom) | : | 18,000 BTU/h |
| BTU Cooling Rating | : | 16,800 BTU/h |
| BTU Heating Rating (Custom) | : | 18,000 BTU/h |
| BTU Heating Rating | : | 18,000 BTU/h |
| CFM Airflow (Custom) | : | 100~200~300~400~500 CFM |
| CFM Airflow | : | 147.2-447.3 CFM |
| Depth | : | 22.44 in |
| EER2 (Custom) | : | 12.0 |
| EER2 | : | 12.5 |
| ENERGY STAR Certified | : | Yes |
| HSPF2 (Custom) | : | 11.0~12.0 |
| HSPF2 | : | 11.4-12.3 |
| Height | : | 9.65 in |
| Liquid Line Size | : | 1/4 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | BMS500 |
| Motor Type | : | ECM |
| Number of Speeds | : | 3 |
| Packaged Depth | : | 25.2 in |
| Packaged Height | : | 11.61 in |
| Packaged Width | : | 28.15 in |
| Phase | : | 1 ph |
| Product Family | : | Climate 5000 |
| Product Type | : | Ceiling Cassette |
| Product Weight | : | 35.27 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 (Custom) | : | 20.0 |
| SEER2 | : | 20.7 |
| Shipping Weight | : | 41.89 lbs |
| Sound Level | : | 48 dB(A) |
| Suction Line Size | : | 1/2 in |
| Tonnage (Custom) | : | 1.5 Ton |
| Tonnage | : | 1.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 22.44 in |

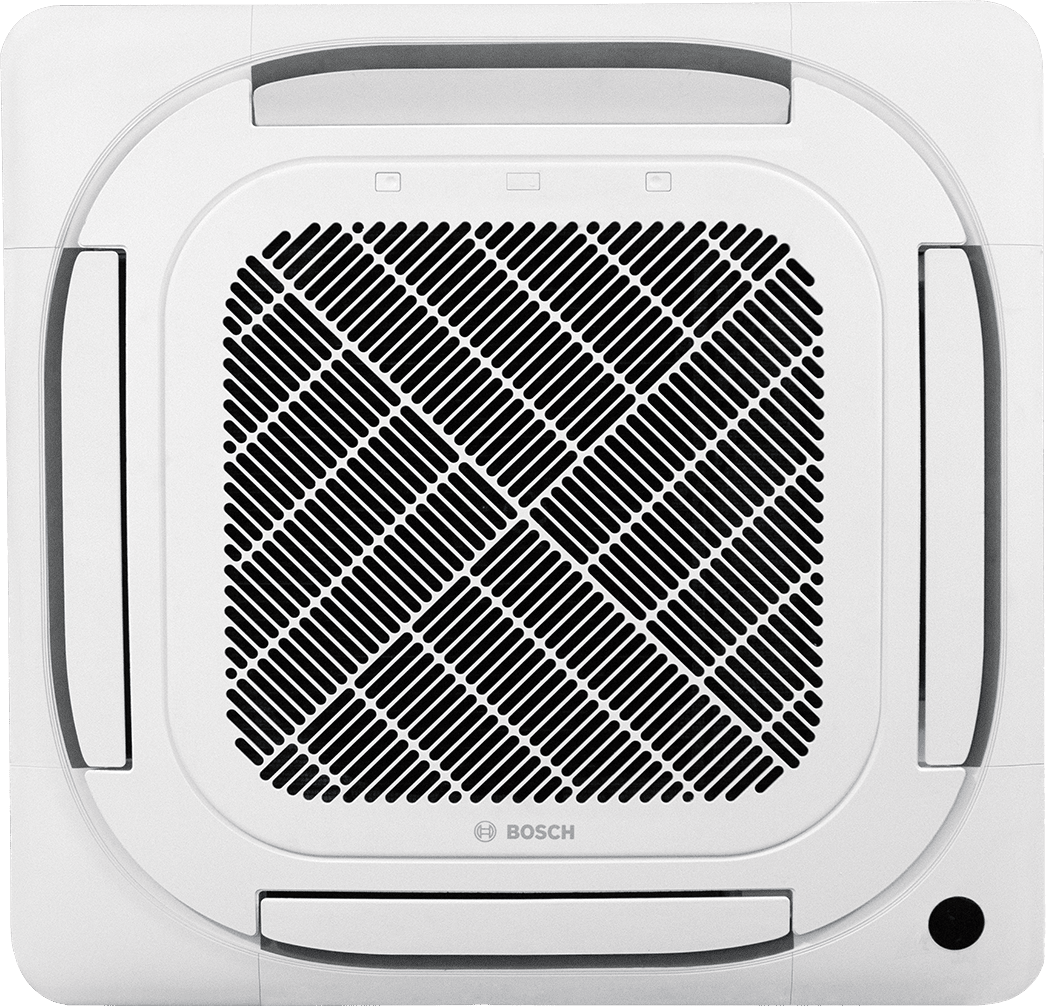

The Bosch Climate 5000 Series ceiling cassette is an indoor unit designed to provide high-efficiency heating and cooling for single-zone applications. Achieving a 20.7 SEER2 rating and ENERGY STAR certification, it delivers consistent comfort while minimizing energy consumption.Engineered for versatile placement, this 4-way cassette fits seamlessly into both drop ceilings and open-concept spaces. Its quiet operation and efficient ECM blower motor ensure a comfortable indoor environment, making it an ideal solution for residential or light commercial use.
- Built-In Condensate Pump:Simplifies installation in various ceiling environments by automatically managing and removing condensate.
- 4-Way Air Distribution:Delivers conditioned air in four directions for even temperature distribution and enhanced comfort in open spaces.
- Self-Cleaning Function:Helps maintain indoor air quality and system efficiency with minimal manual intervention.
- Quiet Performance:Operates at sound levels as low as 24.5 d
- B(A), making it suitable for noise-sensitive environments.
- Flexible Control:Includes a wireless remote and supports an optional wired wall thermostat or 24
- V interface for integration with third-party controls.
