| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 36,000 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| CFM Airflow (Custom) | : | 700~800~900~1,000~1,100~1,200 CFM |
| CFM Airflow | : | 712-1,184 CFM |
| Depth | : | 21.625 in |
| Drain Pan Material | : | Composite / Polymer |
| Filter Size | : | 18 x 20 in |
| Height | : | 46.5 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | BVA |
| Motor Type | : | PSC |
| Number of Speeds | : | 3 |
| Packaged Depth | : | 25.375 in |
| Packaged Height | : | 52.563 in |
| Packaged Width | : | 22.313 in |
| Phase | : | 1 ph |
| Product Family | : | BVA Series |
| Product Weight | : | 128 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 156 lbs |
| Sound Level | : | 65 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 19.625 in |

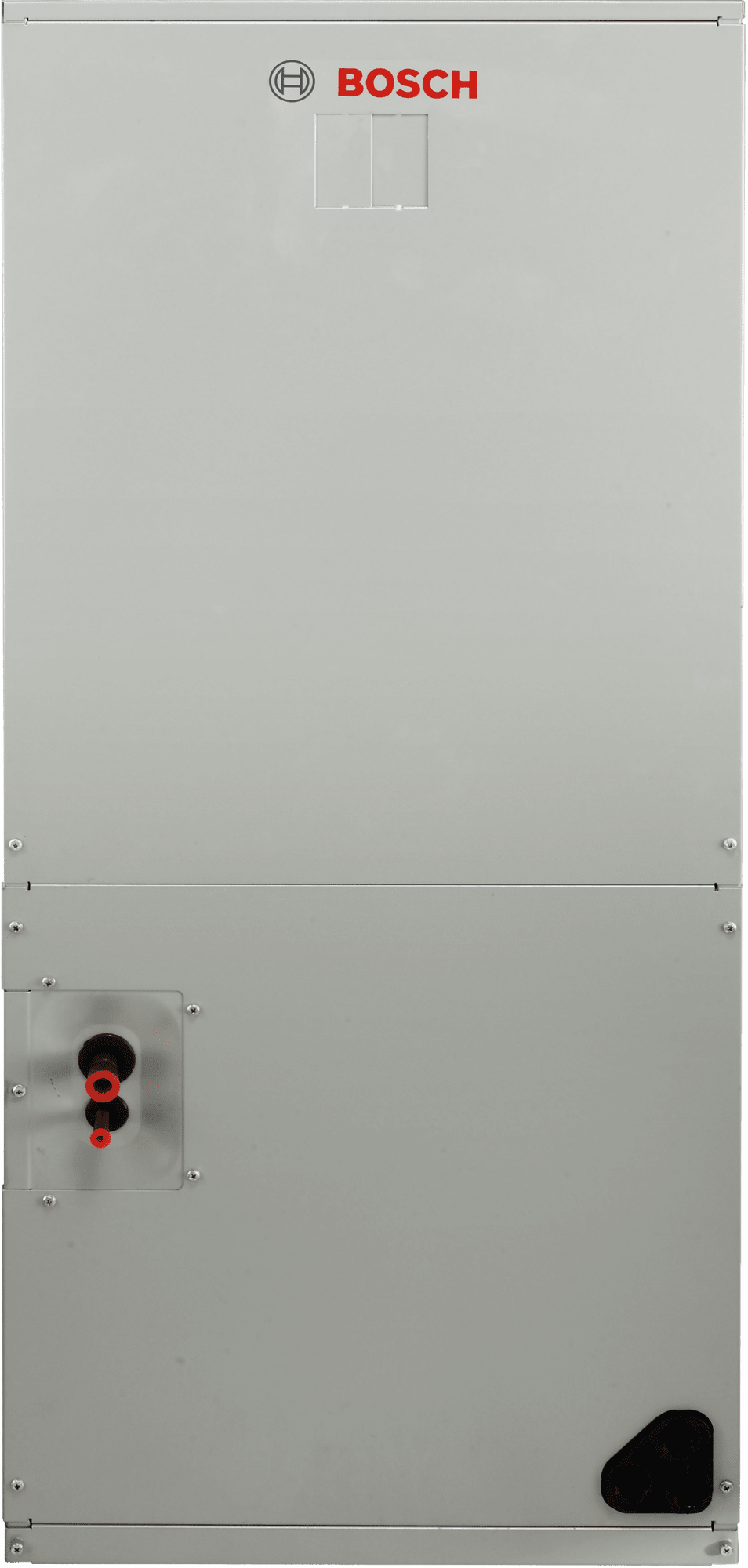

The BVA Series air handler is a versatile and reliable solution for residential applications. Its multi-position design provides installation flexibility for upflow, downflow, and horizontal configurations, making it suitable for a wide range of system setups.Built for durability and serviceability, this unit features an all-aluminum evaporator coil to resist corrosion and a fully-insulated cabinet to ensure efficient operation. Maintenance is streamlined thanks to a dual-panel design with easy slide-out access to the blower and coil.
- Durable Coil:Features an all-aluminum evaporator coil for superior corrosion resistance and long service life.
- Flexible Airflow:Equipped with a 3-speed PSC motor to meet various airflow requirements.
- Versatile Installation:Multi-position design supports upflow, downflow, and horizontal configurations to fit various installation requirements.
- Easy Maintenance:A dual front panel design and slide-out blower and coil assembly provide easy access for service.
- Efficient Cabinet:The fully-insulated, factory-sealed cabinet is certified for an air leakage rate of 2% or less.
- Precise Metering:Comes with a factory-installed TXV for optimized refrigerant control and system performance.
