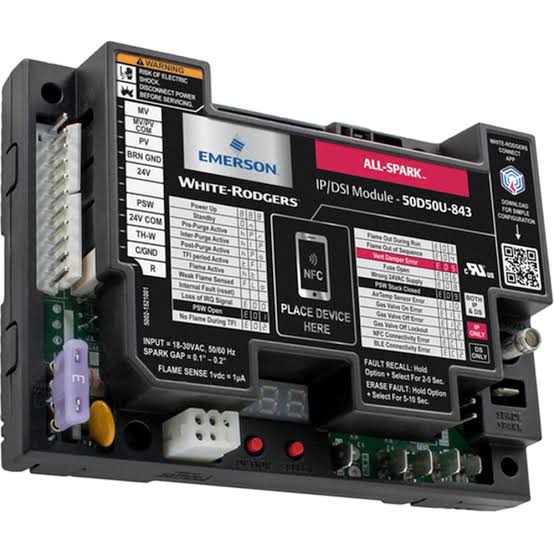

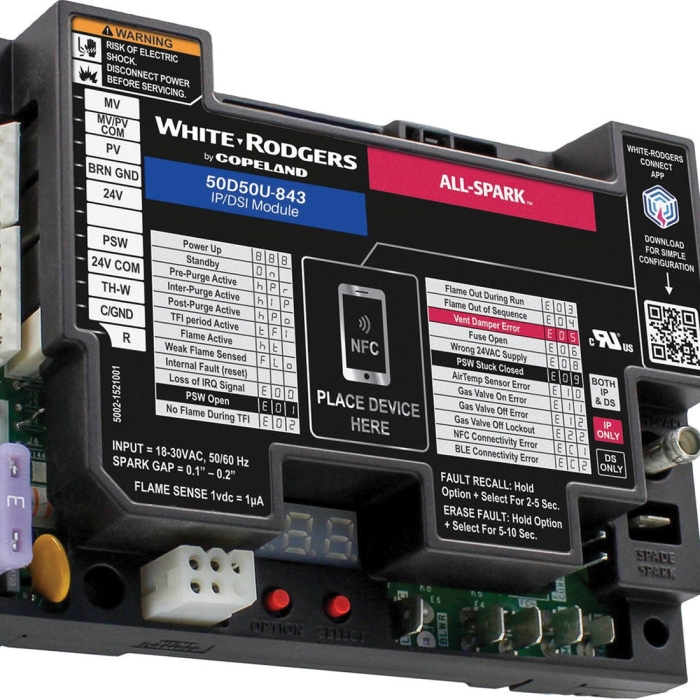

Copeland™ All-Spark™ 50D50U-843 Ignition Module, Intermittent/Proven Pilot Ignition, 1 Stages, 24/120 V, 800 mA
Copeland™ All-Spark™ 50D50U-843 Ignition Module, Intermittent/Proven Pilot Ignition, 1 Stages, 24/120 V, 800 mA
Manufacturer: Copeland LP
Brand: Copeland™
Part #: 405278
MPN: 50D50U-843
CPN:
| Amperage Rating | : | 800 mA |
| Function Type | : | Module |
| Ignition Type | : | Intermittent/Proven Pilot |
| Number of Stages | : | 1 |
| Product Family | : | All-Spark™ |
| Product Type | : | Module |
| Voltage Rating | : | 24/120 V |
All-Spark universal intermittent pilot/direct spark 24V ignition module. Integrated NFC for configuration and diagnostics using the White-Rodgers Connect app. Replaces over 1000 24V IP + DSI part numbers.
Copeland™ Ignition Module, Intermittent/Proven Pilot Ignition, 1 Stages, 24/120 V, 800 mA, All-Spark™, Module Function Type
- Configurable for both 24V intermittent pilot and direct spark ignition modules
- Streamline inventory by replacing over 1000+ 24V IP/DSI part numbers
- Quick configuration without power and simple diagnostics with the White-Rodgers Connect app
- 7-Segment display provides additional configuration options and expanded fault code message reporting
- Rajah and spade spark terminals on-board eliminate the need for an external adapter
- Applications include gas furnaces, water heaters, boilers, cooking and laundry equipment, unit heaters, infrared and tube heaters
- Easy install harness converts old board wiring to fit All-Spark
- Use F67-8535 (sold separately) to maintain temperature without an external thermostat in infrared and tube heaters
