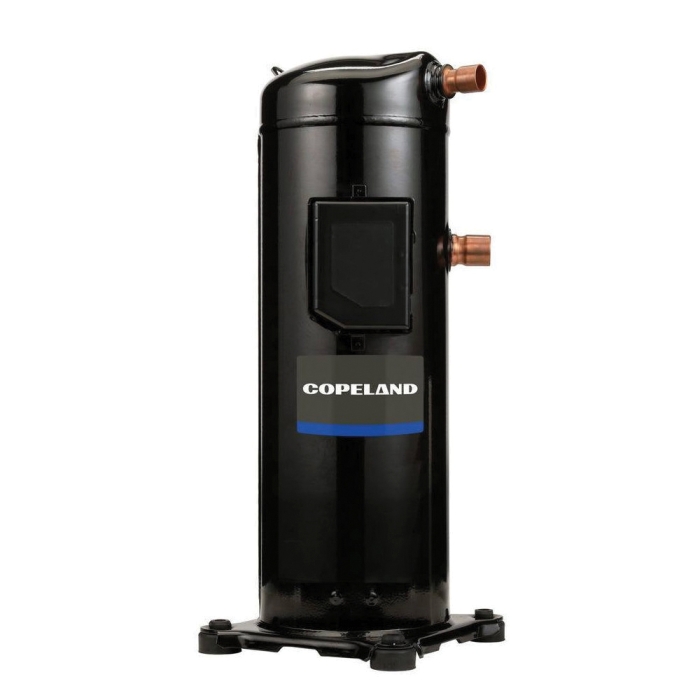

Copeland™ ZPS83KCE-TF5-250 2-Stage Compressor, R-410A Refrigerant, 200/220/230 V, 3 ph, 39700 to 102000 Btu/hr Cooling
Copeland™ ZPS83KCE-TF5-250 2-Stage Compressor, R-410A Refrigerant, 200/220/230 V, 3 ph, 39700 to 102000 Btu/hr Cooling
Manufacturer: Copeland LP
Brand: Copeland™
Part #: 406159
MPN: ZPS83KCE-TF5-250
CPN:
| BTU Cooling Rating | : | 39700 to 102000 Btu/hr |
| Compressor Oil Type | : | 3MA |
| Compressor Type | : | Scroll |
| Depth | : | 10.11 in |
| Discharge Line Size | : | 1/2 in |
| EER | : | 10.4 to 20 |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Compressor |
| Height | : | 17.76 in |
| Initial Oil Charge | : | 58 oz |
| Minimum Circuit Ampacity (MCA) | : | 13.2 to 19.65 A |
| Phase | : | 3 ph |
| Product Weight | : | 91.45 lb |
| Refrigerant Type | : | R-410A |
| Suction Line Size | : | 7/8 in |
| Voltage Rating | : | 200/220/230 V |
| Width | : | 9.79 in |
The 2nd generation Copeland Scroll two-stage compressor is built upon the proven Copeland Scroll platform and is typically used in split and packaged air conditioning or heat pump systems.
Copeland™ 2-Stage Compressor, R-410A Refrigerant, 200/220/230 V, 3 ph Phase, 39700 to 102000 Btu/hr Cooling, Scroll Compressor, 13.2 to 19.65 A Minimum Circuit Ampacity, 7/8 in Suction Line, 1/2 in Discharge Line, 3MA Compressor Oil, 17.76 in H, 9.79 in W, 10.11 in D, Compressor Function Type, 10.4 to 20 EER, 58 oz Initial Oil Charge, 50/60 Hz Frequency
- Two stages of capacity; either 67% or 100%
- Low complexity modulation
- Proven performance and reliability of Copeland Scroll two-stage compressors
- Easy transition to 2018, 2023 regulations
