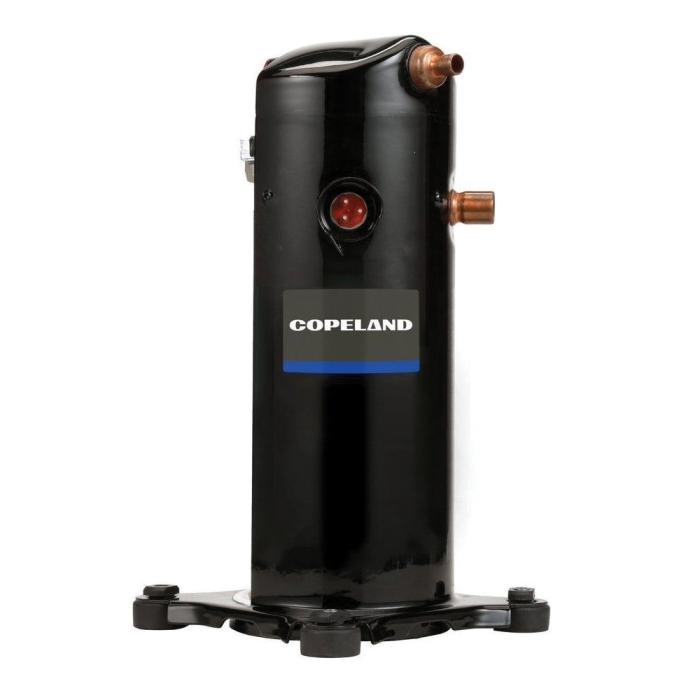

Copeland™ ZR48K5E-TF5-800 Compressor, R-22, R-407C Refrigerant, 200/220/230 V, 3 ph, 38500 to 62500 Btu/hr Cooling
Copeland™ ZR48K5E-TF5-800 Compressor, R-22, R-407C Refrigerant, 200/220/230 V, 3 ph, 38500 to 62500 Btu/hr Cooling
Manufacturer: Copeland LP
Brand: Copeland™
Part #: 308616
MPN: ZR48K5E-TF5-800
CPN:
| BTU Cooling Rating | : | 38500 to 62500 Btu/hr |
| Compressor Oil Type | : | 3MA |
| Compressor Type | : | Scroll |
| Depth | : | 9.7 in |
| Discharge Line Size | : | 1/2 in |
| EER | : | 11.1 to 11.6 |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Compressor |
| Height | : | 16.4 in |
| Initial Oil Charge | : | 42 oz |
| Minimum Circuit Ampacity (MCA) | : | 11.85 to 12.15 A |
| Phase | : | 3 ph |
| Product Weight | : | 69.1 lb |
| Refrigerant Type | : | R-22, R-407C |
| Suction Line Size | : | 7/8 in |
| Voltage Rating | : | 200/220/230 V |
| Width | : | 9.7 in |
Copeland Scroll ZRK5 compressor has been built upon the proven Copeland Scroll platform and over 30 years of scroll technology development.
Copeland™ Compressor, R-22, R-407C Refrigerant, 200/220/230 V, 3 ph Phase, 38500 to 62500 Btu/hr Cooling, Scroll Compressor, 11.85 to 12.15 A Minimum Circuit Ampacity, 7/8 in Suction Line, 1/2 in Discharge Line, 3MA Compressor Oil, 16.4 in H, 9.7 in W, 9.7 in D, Compressor Function Type, 11.1 to 11.6 EER, 42 oz Initial Oil Charge, 50/60 Hz Frequency
- Legacy Copeland Scroll fixed speed compressor
- Low-pressure applications (R-22, R-407C)
