| Function Type | : | Wire Nut |
| Height | : | 1.25 in |
| Insulated | : | Yes |
| Insulation Material | : | Thermoplastic |
| Length | : | 4.75 in |
| Operating Temperature Rating | : | 221 F |
| Package Quantity | : | 100 |
| Product Family | : | 72B Series |
| Product Type | : | Wire Nut |
| Product Weight | : | 0.2 lbs |
| UL Listed | : | No |
| Voltage Rating | : | 300 V |
| Width | : | 2.74 in |
| Wire Size | : | 22-14 AWG |

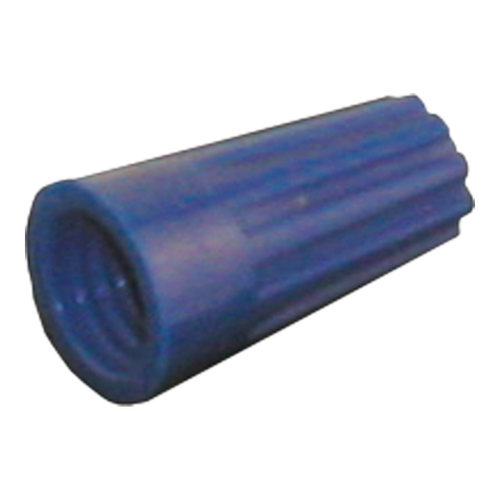

These 72B Series blue screw-on wire connectors provide a fast and dependable solution for splicing wires in HVAC and electrical applications. The color-coded design simplifies selection, while the robust thermoplastic shell ensures a secure connection with positive continuity. Each connector is engineered to protect splices from environmental factors and ensure a safe, professional installation.
- Color-coded blue for easy wire size identification (Size 72B).
- Provides quick and secure screw-on connections for positive continuity.
- High-dielectric thermoplastic shell resists chemicals like hydrocarbons, dilute acids, and alkaline solutions.
- Deep skirt design prevents bare wire exposure for enhanced safety.
- UL Listed and CSA Certified, rated up to 221°F (105°C) and 300V.
- Designed for 16-22 AWG copper-to-copper wire connections.
