EWC® 10 CLBD Controls CLBD Series Constant Load Bypass Damper, 700 CFM, 10 Diameter, Manual, Barometric Bypass, Round, Round Duct Connection, In-Duct Mount, 0.3 In. Wc. - 0.8 In. Wc. Adjustable Pressure Rating
EWC® 10 CLBD Controls CLBD Series Constant Load Bypass Damper, 700 CFM, 10 Diameter, Manual, Barometric Bypass, Round, Round Duct Connection, In-Duct Mount, 0.3 In. Wc. - 0.8 In. Wc. Adjustable Pressure Rating
Manufacturer: EWC® Controls, Inc
Brand: EWC®
Part #: 303398
MPN: 10 CLBD
CPN:
| CFM Rating | : | 700 CFM |
| Connection Type | : | Round Duct |
| Control Type | : | Manual, Barometric Bypass |
| Diameter | : | 10 " |
| Domestic/Import | : | Domestic |
| Finish | : | Galvanized |
| Height | : | 12 |
| Length | : | 12 " |
| Material | : | Galvanized Steel |
| Model | : | 10 CLBD |
| Mounting Type | : | In-Duct Mount |
| Pressure Rating | : | 0.3 in. wc. - 0.8 in. wc. (Adjustable) |
| Series | : | CLBD Series |
| Shape | : | Round |
| Size | : | 10" Diam x 12" L |
| Width | : | 12 |

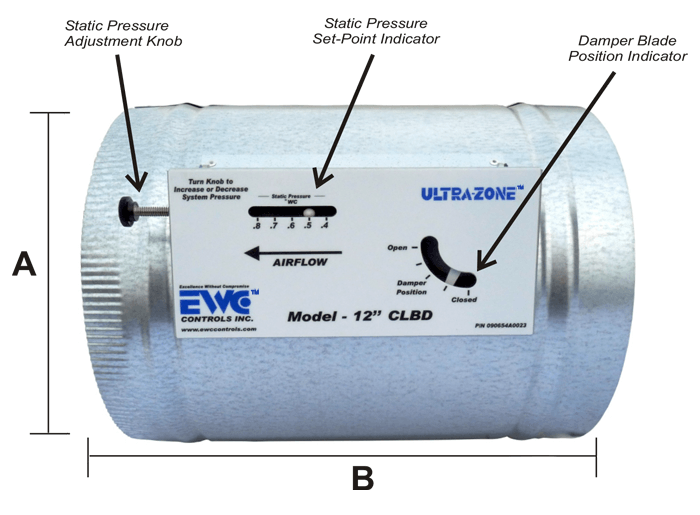

EWC® Controls Constant Load Bypass Damper, Model: CLBD Series, 700 CFM, 10" Diameter, Manual, Barometric Bypass, Round, Round Duct Connection, In-Duct Mount, 0.3 In. Wc. - 0.8 In. Wc. (Adjustable) Pressure Rating, Galvanized Steel, 12" Length, Domestic, Galvanized
- Provides an economical solution for managing static pressure in zoned HVAC systems.
- Features easy adjustment of static pressure settings from 0.3" WC to 0.8" WC.Unique constant load design and magnetic latch allow installation in any position.
- Minimizes bypass air volume while preventing static pressure from exceeding the set point.
- Suitable for both constant speed and variable speed zoned HVAC systems.
- Rated for 700 CFM airflow capacity.
- Factory set to 0.5" WC static pressure for quicker setup.
