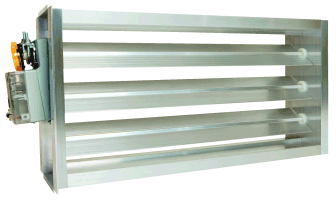

EWC® 12X16 ND Controls ND Series Rectangular Motorized Damper, 12 x 16 Opening Size, Rectangular, 24 VAC, Slip-In, SideBottom Mount Motor, 1.5 In. Wc. Pressure Rating, Power OpenPower Close, Non-Spring Return, 18 in-lb
EWC® 12X16 ND Controls ND Series Rectangular Motorized Damper, 12 x 16 Opening Size, Rectangular, 24 VAC, Slip-In, SideBottom Mount Motor, 1.5 In. Wc. Pressure Rating, Power OpenPower Close, Non-Spring Return, 18 in-lb
| Amperage Rating | : | 1.5 A |
| Blade Type | : | Overlapping Parallel |
| Color | : | Silver |
| Dimensions | : | 16" H x 12" W x 4" D |
| Domestic/Import | : | Domestic |
| Electrical Connection | : | Quick Connecting Terminal Block, 3-Wire |
| Finish | : | Mill Finish (Extruded Aluminum) |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Height | : | 21 |
| Length | : | 14 |
| Material Standard | : | UL Listed (Motor Actuator), NEMA 1 (Motor Housing) |
| Material | : | Extruded Aluminum (Frame/Blades), Nylon (Bearings) |
| Model | : | 12X16 ND |
| Motor Specifications | : | 24 VAC, 3-Wire Power Open/Power Close (Floating Function), 18 in-lb Torque, NEMA 1 Housing, UL Listed |
| Motor Type | : | Power Open/Power Close, Non-Spring Return |
| Mounting Type | : | Slip-In, Side/Bottom Mount (Motor) |
| Opening Size | : | 12" x 16" |
| Phase | : | 1 |
| Pressure Rating | : | 1.5 in. wc. |
| Rated Velocity | : | 1,500 fpm |
| Series | : | ND Series |
| Shape | : | Rectangular |
| Size | : | 12" x 16" |
| Temperature Rating | : | 185 °F (Maximum, Operating) |
| Timing Range | : | 40 seconds |
| Torque Rating | : | 18 in-lb |
| Voltage Rating | : | 24 VAC |
| Width | : | 7 |
EWC® Controls Rectangular Motorized Damper, Model: ND Series, 12" x 16" Opening Size, Rectangular, 24 VAC, Slip-In, Side/Bottom Mount (Motor), 1.5 In. Wc. Pressure Rating, Power Open/Power Close, Non-Spring Return, 18 in-lb, 40 Seconds Timing Range, 24 VAC, 3-Wire Power Open/Power Close (Floating Function), 18 in-lb Torque, NEMA 1 Housing, UL Listed, 16" H x 12" W x 4" D Dimensions, Quick Connecting Terminal Block, 3-Wire Electrical Connection, Extruded Aluminum (Frame/Blades), Nylon (Bearings), UL Listed (Motor Actuator), NEMA 1 (Motor Housing), Mill Finish (Extruded Aluminum), Silver, Overlapping Parallel, 1,500 FPM, 1.5 A, 185 °F (Maximum, Operating), 50 Hz, 60 Hz, 1 Phase, Domestic
- Constructed from heavy-duty 0.80" extruded aluminum with quiet nylon bearings.
- Features an overlapping parallel blade design for low leakage performance.
- Operates reliably in systems up to 1.5" w.c. static pressure and 1500 FPM air velocity.
- Driven by a UL Listed, 24 VAC, 3-wire power-open/power-close motor delivering 18 in-lb torque.
- Includes integrated end stops for adjusting minimum closed leakage and maximum open position.
- Bright LED indicators visually confirm the damper's open or closed status.
- Quick-connect terminal block simplifies wiring installation.
