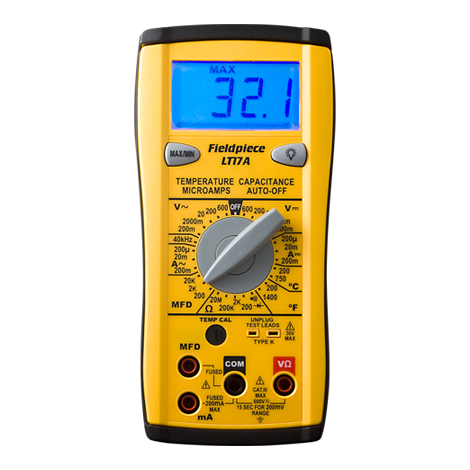

Fieldpiece LT17A Instruments LT Series Digital Multimeter, 600 V, 400 A, LCD, Yes Diode Test, 0.1 mV Resolution, 0.5% 1 Digit, 1.0% 1 Digit Current Accuracy
Fieldpiece LT17A Instruments LT Series Digital Multimeter, 600 V, 400 A, LCD, Yes Diode Test, 0.1 mV Resolution, 0.5% 1 Digit, 1.0% 1 Digit Current Accuracy
Manufacturer: Fieldpiece Instruments
Brand: Fieldpiece
Part #: 307222
MPN: LT17A
CPN:
| Amperage Rating | : | 400 A |
| Battery Type | : | 9V |
| Capacitance Accuracy | : | 4% + 10 digits |
| Capacitance | : | 20,000,000 MFD |
| Color | : | Yellow |
| Current Accuracy | : | 1.0% + 1 digit |
| Dimensions | : | 9-1/2" L x 7" W x 3-2/5" D |
| Diode Accuracy | : | 1.5% + 3 digits |
| Diode Test | : | Yes |
| Display Type | : | LCD |
| Frequency Accuracy | : | 0.1% + 3 digits |
| Frequency Rating | : | 10 - 40,000 Hz |
| Humidity Rating | : | 70 % |
| Material | : | ABS, Rubber (Boot) |
| Model | : | LT17A |
| Resistance Accuracy | : | ±1.0% + 4 Digits |
| Resistance | : | 40,000,000 Ohms |
| Resolution | : | 0.1 mV |
| Series | : | LT Series |
| Temperature Accuracy | : | ±1°F |
| Temperature Rating | : | 32-122 °F |
| Voltage Accuracy | : | 0.5% + 1 digit |
| Voltage Rating | : | 600 V |
Fieldpiece Instruments Digital Multimeter, Model: LT Series, 600 V, 400 A, LCD, Yes Diode Test, 0.1 mV Resolution, 0.5% + 1 Digit, 1.0% + 1 Digit Current Accuracy, ±1.0% + 4 Digits Resistance Accuracy, 0.1% + 3 Digits Frequency Accuracy, ±1°F Temperature Accuracy, 4% + 10 Digits Capacitance Accuracy, 1.5% + 3 Digits, 10 - 40,000 Hz, 0.1 x (Specified Accuracy)1°F/°c, 40,000,000 Ohms, 20,000,000 MFD, 32-122 °F Temperature Rating, ≤70% Humidity Rating, 9-1/2" L x 7" W x 3-2/5" D Dimensions, ABS, Rubber (Boot), Yellow, 9V
- Measures key HVACR parameters including AC/DC voltage (up to 600
- V), AC current (up to 400
- A with included clamp), resistance, capacitance, frequency, and temperature.
- Features a microamps DC range specifically for testing flame rectification sensors.
- Includes a K-type thermocouple for direct temperature measurement up to 1400°F.Bright blue backlight, tilt stand, and magnetic hanger allow for easy viewing and hands-free operation.
- Compatible with Fieldpiece accessory heads to expand measurement capabilities.
- Rugged ABS case with protective rubber boot ensures durability on the job site.
- Auto power-off function conserves battery life (approx. 150 hours typical).

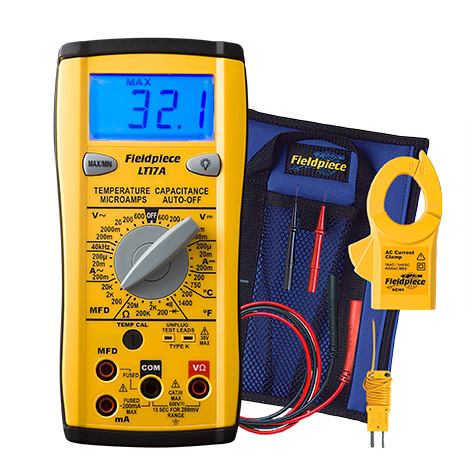

- Includes deluxe silicone test leads, 400
- A clamp accessory, thermocouple, alligator clips, and carrying case.
