| AC Amps Accuracy | : | ±(2% + 10) |
| AC Amps Range / Resolution | : | 0-400 A |
| Battery Life | : | 100 hrs |
| Battery Type | : | 9V |
| Capacitance Accuracy | : | ±(3% + 15) (5µF)~±(3% + 5) (50µF-500µF)~±(5% + 20) (5mF) |
| Capacitance Range / Resolution | : | 0-5 MFD |
| DC Amps Accuracy | : | ±(1.0% + 2) |
| DC Amps Range / Resolution | : | 0.0001-0.5 mA |
| Depth | : | 1.97 in |
| Display Counts | : | 5,000 |
| Display Type | : | Backlit LCD |
| Height | : | 11.32 in |
| Jaw Capacity | : | 1.2 in |
| Maximum Voltage | : | 600 V |
| Operating Temperature Rating | : | 32-122 F |
| Package Quantity | : | 1 |
| Power Source | : | Battery |
| Product Family | : | SC640 Series |
| Product Type | : | METERS, GAUGES, & ACCESSORIES |
| Product Weight | : | 0.99 lbs |
| Resistance Accuracy | : | ±(1.0% + 5) (500Ω-500kΩ)~±(1.5% + 5) (5MΩ)~±(3.0% + 5) (50MΩ) |
| Resistance Range / Resolution | : | 0-50 MOhm |
| Shipping Weight | : | 21 lbs |
| UL Listed | : | Yes |
| VAC Accuracy | : | ±(1.2% + 8) (500mV-500V)~±(1.5% + 8) (600V) |
| VAC Measurement Range / Resolution | : | 0-600 VAC |
| VDC Accuracy | : | ±(0.5% + 2) |
| VDC Measurement Range / Resolution | : | 0.001-600 VDC |
| Width | : | 3.13 in |

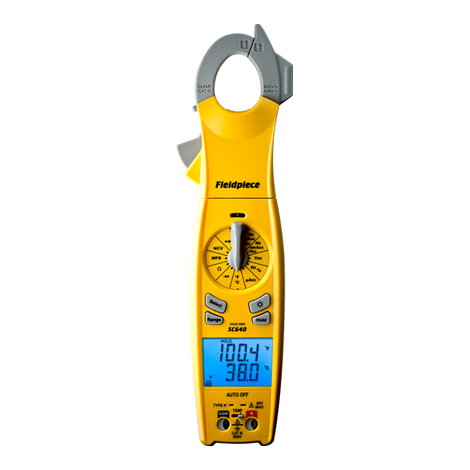

The Fieldpiece SC640 Series is a fully-loaded clamp meter designed to handle the diverse electrical measurements required by HVAC/R technicians. It provides accurate True RMS readings for both AC voltage and current, and includes specialized functions like inrush current for diagnosing motor starts and microamps DC for flame rectification testing.Built for demanding job site conditions, its rugged construction is complemented by user-friendly features that simplify testing in challenging environments. The SC640 is a reliable, all-in-one tool for comprehensive system analysis.
