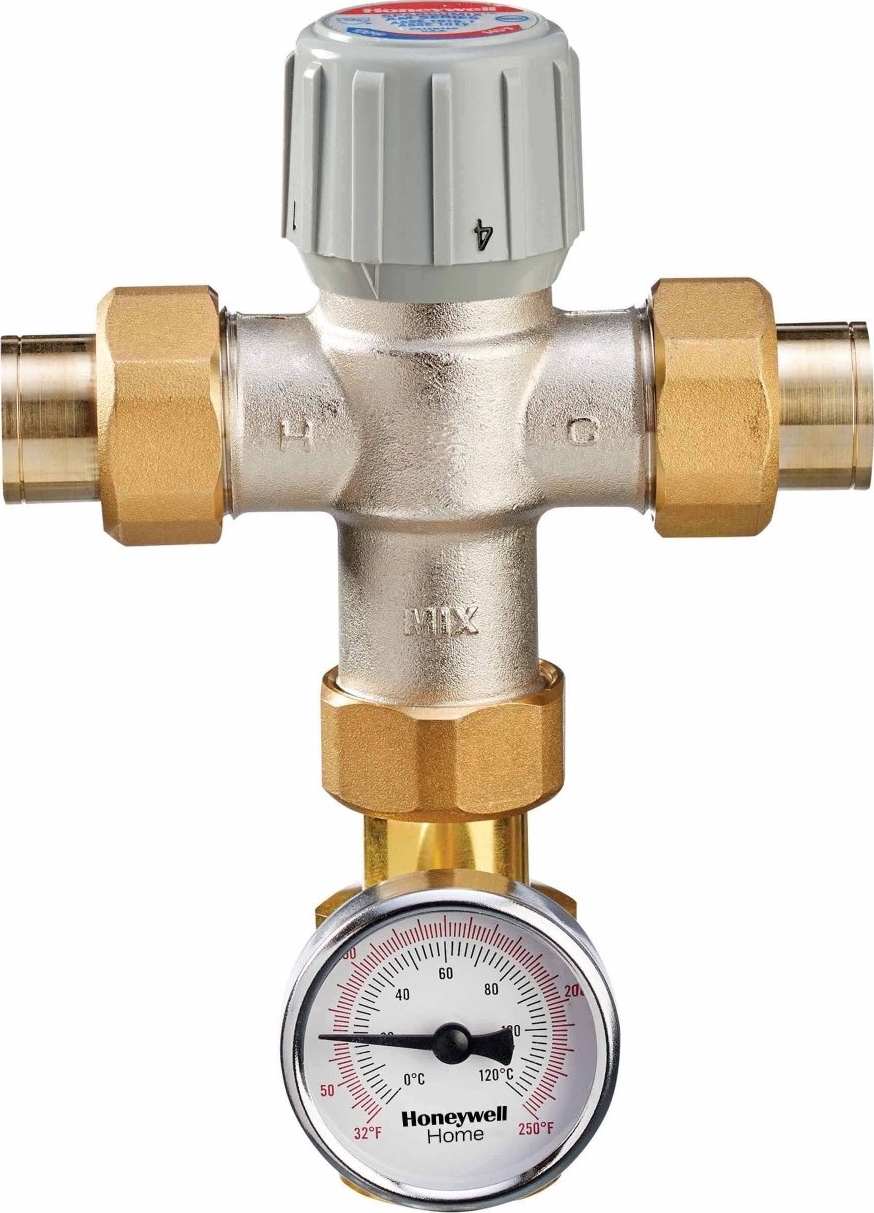

Honeywell AM101-USTG-1LF/U AM100 Series 3/4 x 3/4 x 3/4 in Mixing Valve w/ Temperature Gauge - Sweat x Sweat x Sweat Union, Brass
Honeywell AM101-USTG-1LF/U AM100 Series 3/4 x 3/4 x 3/4 in Mixing Valve w/ Temperature Gauge - Sweat x Sweat x Sweat Union, Brass
Manufacturer: Honeywell International Inc
Brand: Honeywell
Part #: 306611
MPN: AM101-USTG-1LF/U
CPN:
| Body Material | : | Brass |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Size 3 | : | 3/4 in |
| Connection Sizes (Custom) | : | 3/4~3/4~3/4 in |
| Connection Type 1 | : | Sweat Union |
| Connection Type 2 | : | Sweat Union |
| Connection Type 3 | : | Sweat Union |
| Connection Types (Custom) | : | Sweat Union~Sweat Union~Sweat Union |
| Depth | : | 4.9 in |
| Flow Coefficient | : | 3.9 Cv |
| For Use With | : | Water Heater |
| Function Type | : | Mixing Valve |
| Height | : | 7.3 in |
| Maximum Fluid Temperature | : | 212 F |
| Maximum Working Pressure | : | 150 PSI |
| Media / Fluid Type | : | Potable Water~Non Potable Water |
| Minimum Fluid Temperature | : | 39 F |
| NSF Certified | : | Yes |
| Number of Ports | : | 3 |
| Number of Positions | : | 3 |
| Operator Type | : | Handwheel |
| Package Quantity | : | 1 |
| Packaged Depth | : | 3.6 in |
| Packaged Height | : | 3.7 in |
| Packaged Width | : | 6.1 in |
| Pressure Range | : | 150 PSI |
| Product Family | : | AM100 Series |
| Product Type | : | Mixing Valve |
| Shipping Weight | : | 2.7 lbs |
| Temperature Range | : | 70-145 F |
| Width | : | 4.9 in |
This AM100 Series thermostatic mixing valve accurately controls water temperature for domestic hot water systems. It allows for a higher storage temperature in the water heater, increasing the amount of usable hot water, while consistently delivering water at a safe, pre-set temperature to fixtures. The internal thermostatic element automatically adjusts the mix of hot and cold water to protect against temperature fluctuations and provide reliable performance.
