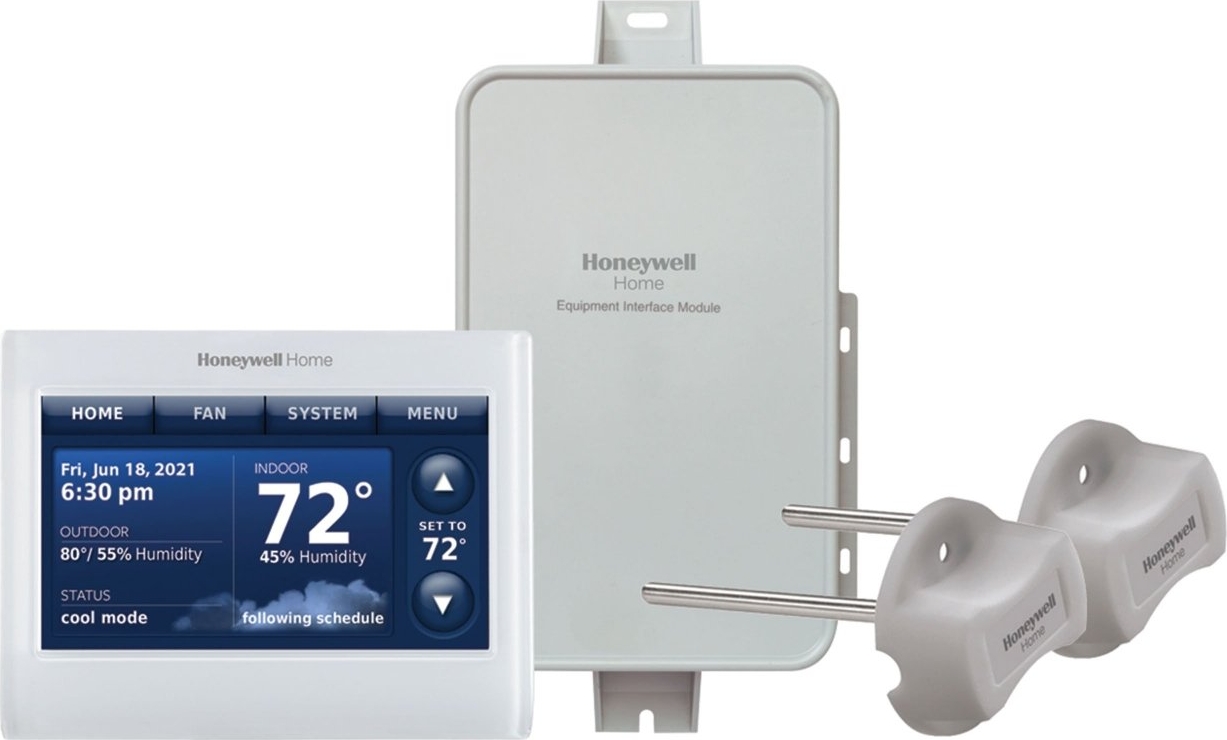

Honeywell YTHX9421R5085WW/U Prestige IAQ Kit w/ Programmable Thermostat - 4H/2C / 3H/2C, Touchscreen / Color LCD, Battery, White
Honeywell YTHX9421R5085WW/U Prestige IAQ Kit w/ Programmable Thermostat - 4H/2C / 3H/2C, Touchscreen / Color LCD, Battery, White
Manufacturer: Honeywell International Inc
Brand: Honeywell
Part #: 308587
MPN: YTHX9421R5085WW/U
CPN:
| Accuracy | : | 1.5 F |
| Ambient Temperature Rating | : | 32-120 F |
| Amperage Rating | : | 1~0.6~0.5 A |
| Auto Changeover | : | Yes |
| Auxiliary Heat Support | : | Yes |
| Battery Type | : | CR2032 |
| Color | : | White |
| Compatible Models | : | THM6000R7001/U |
| Depth | : | 1.5 in |
| Differential Temperature | : | 1 F |
| Display Type | : | Touchscreen~Color LCD |
| ENERGY STAR Certified | : | Yes |
| For Use With | : | HVAC Systems |
| Function Type | : | Temperature Control |
| Height | : | 3.56 in |
| Humidity Control | : | Yes |
| Humidity Rating | : | 5-90 % RH |
| Installation / Mounting Type | : | Wall Mount |
| Number of Fan Speeds | : | 1 |
| Number of Stages | : | 4H/2C~3H/2C |
| Package Quantity | : | 1 |
| Power Source | : | Battery |
| Product Family | : | Prestige |
| Setpoint Temperature Range | : | 40-99 F |
| Terminal Designations | : | R~RC~RH~C~W-O/B~W2-AUX1~W3-AUX2~Y~Y2~G~A-L/A~U1~U1~U2~U2~U3~U3~S1~S1~S2~S2~S3~S3~S4~S4~A~B~C~D |
| Voltage Rating | : | 24 V |
| Width | : | 5.81 in |
The Honeywell Prestige IAQ Kit provides comprehensive control over heating, cooling, and indoor air quality for residential and light commercial applications. This 7-day programmable system is built around a high-definition color touchscreen thermostat that offers intuitive setup and operation for managing complex HVAC systems.Featuring integrated RedLINK® technology, the thermostat communicates wirelessly with the included Equipment Interface Module and can be expanded with other RedLINK® accessories. With advanced staging options and dedicated control for humidity and ventilation, this kit offers the flexibility to handle virtually any system configuration.
- Control heating, cooling and IAQ equipment with only 2-wires at the thermostat, heating, cooling and IAQ equipment wires to the equipment interface module
- Smart schedule - programs in seconds for any lifestyle
- Patented interview based programming and installer setup
- RedLink wireless communication
- Customizable service reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts
- Red LINK internet gateway, portable comfort control (pcc), wireless outdoor sensor, wireless indoor sensor, wireless entry/exit remote, wireless vent and filter boost remote, true steam humidifier with wireless adapter and TrueZone zoning panel with wireless adapter
- Delta T alerts and diagnostics informs customers when their system is not performing as expected with instructions to contact the dealer, provides a sense of security and greater comfort while generating repeat business
- All prestige IAQ kits come standard with a return and discharge air temperature sensor to measure delta T
- Alerts and user interactions log - keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error
- Performance logs - keeps a history of heating and cooling performance
- Increase profit per job by including RedLink accessories that provide comfort and convenience
- USB port for transferring installer setup, customizable reminders, custom events and holidays to multiple thermostats
- USB port for adding the dealer's full color business logo on the screen
- (3) assignable outputs to control humidification, dehumidification, ventilation and a stage of heating or cooling
- 4-assignable inputs on the equipment interface module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak
- Extend wireless range of the equipment interface module by connecting a THM4000R1000 wireless adapter to the ABCD terminals
- Precise temperature control (+/- 1 deg F) for reliable and consistent temperature
- Multiple staging options to provide comfort or energy savings
- Lithium metal batteries contained in equipment
- 40 - 80% RH cooling and 10 - 60% RH heating humidification setting range, 40 - 80% RH dehumidification setting range
