| Ambient Temperature Rating | : | 122 F |
| Amperage Rating | : | 0.5 A |
| Depth | : | 2.125 in |
| For Use With | : | HVAC Systems |
| Function Type | : | Wire Adapter |
| Height | : | 3.375 in |
| Installation / Mounting Type | : | Surface Mount |
| Operating Temperature Rating | : | 122 F |
| Package Quantity | : | 1 |
| Power Source | : | Hardwired |
| Product Family | : | UT-SWM Series |
| Product Type | : | Wire Adapter |
| Product Weight | : | 4.2 lbs |
| Voltage Rating | : | 24 V |
| Wi-Fi/Smart Home Enabled | : | No |
| Width | : | 2.25 in |

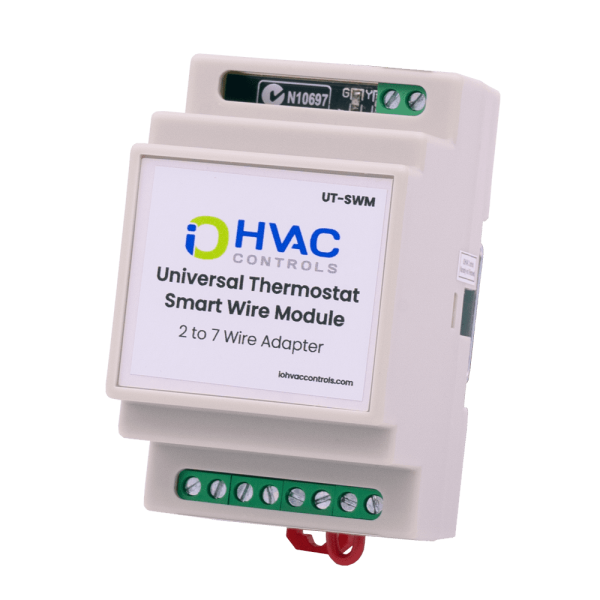

The UT-SWM Universal Thermostat Smart Wire Module is an innovative, cost-effective solution for retrofit applications where additional thermostat wires are needed but not available. It allows technicians to expand system control without the time and expense of pulling new cable between the thermostat and the indoor air handling unit.This module converts signals from up to five thermostat outputs to be sent across a single pair of wires, making it ideal for system upgrades or adding accessories when existing wiring is insufficient.
