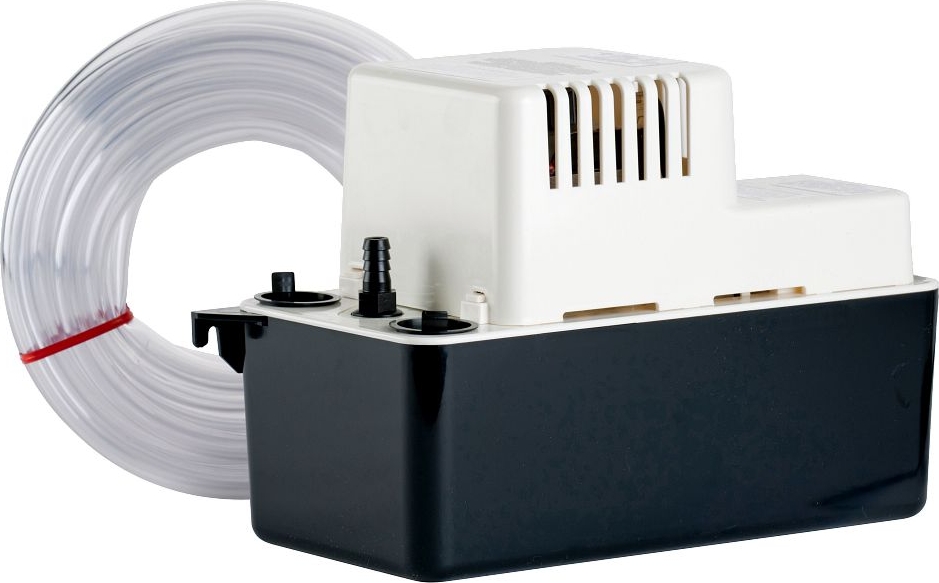

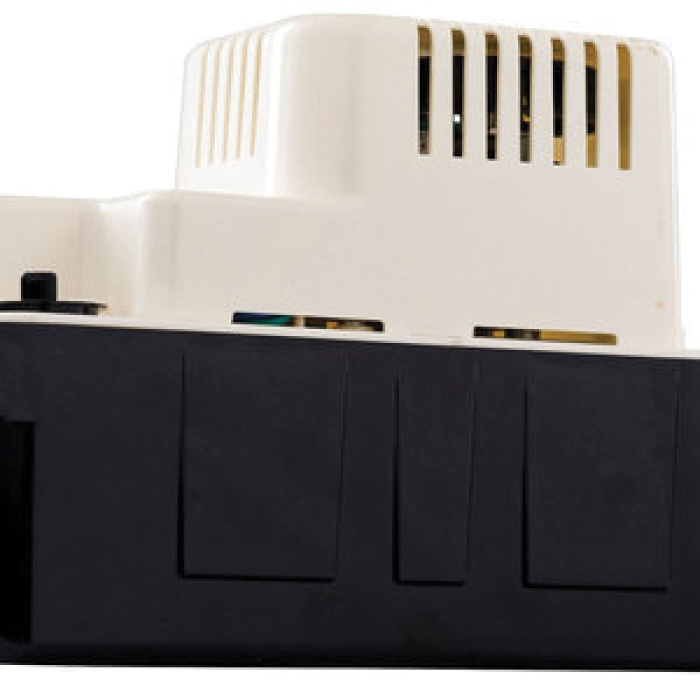

Little GIANT® 554425 Condensate Pump, 115 V, 1 ph, 1.33 gpm Flow Rate, 20 ft Maximum Head, 1/2 gal Tank, 1.5 A
Little GIANT® 554425 Condensate Pump, 115 V, 1 ph, 1.33 gpm Flow Rate, 20 ft Maximum Head, 1/2 gal Tank, 1.5 A
Manufacturer: Franklin Electric
Brand: Little GIANT®
Part #: 305183
MPN: 554425
CPN:
| Amperage Rating | : | 1.5 A |
| Body Material | : | Plastic |
| Depth | : | 5 in |
| Discharge Connection Size | : | 3/8 in |
| Flow Rate | : | 1.33 gpm |
| Height | : | 7 in |
| Includes Safety Switch | : | Yes |
| Maximum Fluid Temperature | : | 75 deg F |
| Maximum Head | : | 20 ft |
| Maximum Working Pressure | : | 8.7 psi |
| Motor HP | : | 1/30 hp |
| Packaged Depth | : | 5 in |
| Packaged Height | : | 7.13 in |
| Packaged Width | : | 12 in |
| Phase | : | 1 ph |
| Product Family | : | VCMA-20 Series |
| Product Weight | : | 4.1 lb |
| Shipping Weight | : | 4.6 lb |
| Tank Capacity | : | 1/2 gal |
| Voltage Rating | : | 115 V |
| Watts | : | 93 W |
| Width | : | 11 in |
The VCMA-20ULS is ideal for automatic collection and removal of condensate from air conditioning, refrigeration and de-humidification equipment when gravity drainage is not possible or practical.
Little GIANT® Condensate Pump, 115 V, 1 ph Phase, 1.33 gpm Flow Rate, 20 ft Maximum Head, 1/2 gal Tank, Yes, 3/8 in Discharge, 1.5 A, 93 W, 1/30 hp Motor HP, Plastic Body, 7 in Height, 11 in Width, 5 in Depth, 75 deg F Maximum Fluid Temperature, 8.7 psi Maximum Working Pressure, VCMA-20 Series
- Vertical centrifugal pump design
- Stainless steel motor shaft
- Automatic start and stop operation
- Some models equipped with float (solid polymer) activated switch for automatic high-level water detection (overflow detection switch)
- For models with overflow detection switch: dual function NO and NC operation (set to NO from factory for equipment shut down connection)
- Models equipped with overflow detection switch include two 5" switch lead wires
- 3/8" O.D. barbed discharge adapter with built-in check valve
- Three 1-1/8" diameter inlet openings (two fitted with removable cap plug)
- Thermally protected, fan cooled moto
- Built-in wall mount tabs on tank
- Removable pump float locking tab for safety during transportation (remove at time of installation)
- 6 ft, 3-conductor cable with grounded 3-prong plug
