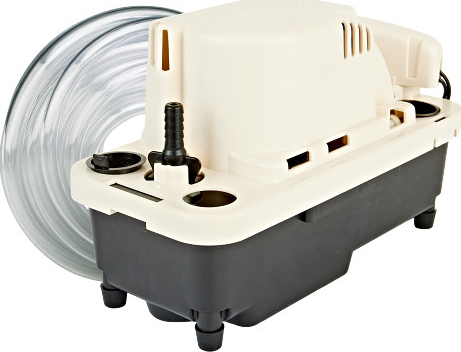

Little GIANT® VCMA-20ULST-PRO 230V VCMA-20-PRO Series 230V Condensate Pump - 20 ft Lift, 3 Inlets, 140 F
Little GIANT® VCMA-20ULST-PRO 230V VCMA-20-PRO Series 230V Condensate Pump - 20 ft Lift, 3 Inlets, 140 F
Manufacturer: Franklin Electric
Brand: Little GIANT®
Part #: 308492
MPN: VCMA-20ULST-PRO 230V
CPN:
| Amperage Rating | : | 1.5 A |
| Body Material | : | ABS |
| Depth | : | 10.23 in |
| Discharge Connection Size | : | 3/8 in |
| Flow Rate | : | 80 GPH |
| Height | : | 6.46 in |
| Includes Safety Switch | : | Yes |
| Inlet Connection Size | : | 1-1/8 in |
| Maximum Fluid Temperature | : | 140 F |
| Maximum Head | : | 20 ft |
| Maximum Working Pressure | : | 8.6 PSI |
| Motor HP | : | 1/30 HP |
| Number of Inlets | : | 3 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 12 in |
| Packaged Height | : | 6.81 in |
| Packaged Width | : | 7 in |
| Phase | : | 1 ph |
| Product Family | : | VCMA-20-PRO Series |
| Product Type | : | CONDENSATE HANDLING |
| Product Weight | : | 5.5 lbs |
| Tank Capacity | : | 0.5 gal |
| Voltage Rating | : | 230 V |
| Watts | : | 75 W |
| Width | : | 4.75 in |
The Little Giant VCMA-20-PRO Series is a high-performance condensate pump designed for the automatic collection and removal of wastewater from air conditioning, high-efficiency gas furnaces, condensing boilers, and other equipment where gravity drainage is not possible.This model features a 1/30 HP thermally protected, fan-cooled motor for reliable operation. For added safety and convenience, it includes an integrated overflow detection switch to prevent property damage and comes with 20 feet of 3/8" vinyl tubing for immediate installation.
