| Amperage Rating | : | 11.5 A |
| Bearing Type | : | Ball |
| Depth | : | 6.66 in |
| Enclosure Type | : | OAO |
| Function Type | : | Blower Motor |
| Height | : | 5.5 in |
| Motor HP | : | 1/2~1 HP |
| Motor Type | : | Constant Torque ECM |
| NEMA Frame Size | : | 48 |
| Number of Shafts | : | 1 |
| Number of Speeds | : | 5 |
| Package Quantity | : | 1 |
| Phase | : | 1 ph |
| Product Family | : | AZURE ECM |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 4.94 in |
| Shipping Weight | : | 16.5 lbs |
| Voltage Rating | : | 120~240 V |
| Width | : | 5.5 in |

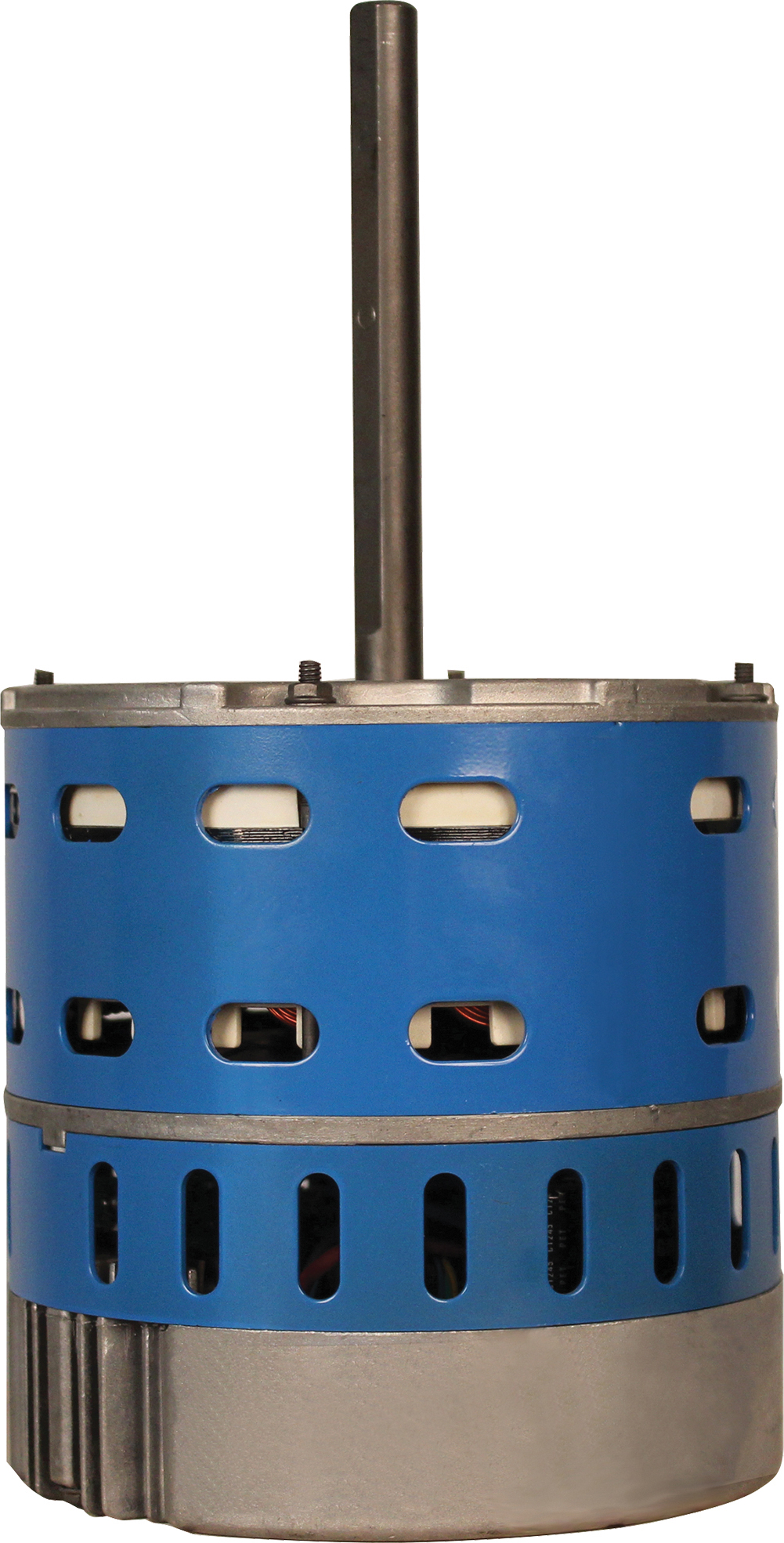

The Mars® AZURE ECM Digi-Motor is a high-efficiency, direct-drive blower motor designed as a versatile replacement for standard PSC and Genteq X-13 motors. Its multi-horsepower (1/2 to 1 HP) and dual-voltage (120V/240V) capabilities make it an ideal solution for a wide range of applications, reducing the need to carry multiple motor models.This motor simplifies installation with an innovative auto-sizing learn mode. During startup, it automatically measures the system's external static pressure and programs itself to deliver the optimal torque and airflow, ensuring peak performance without complex adjustments.
