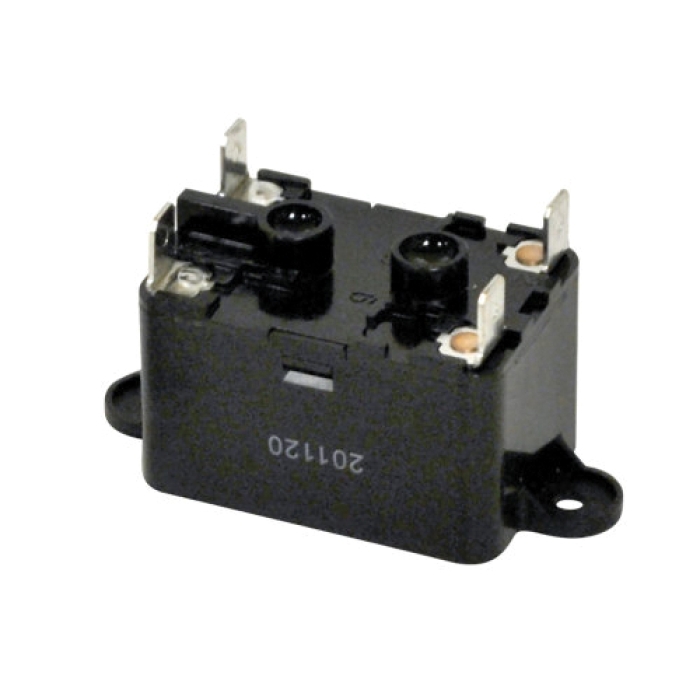

Mars® 90291 General-Purpose Switching Relay, 110/120 V Control, 1 -Pole, SPST, 1NO Switch Contact, 50/60 Hz, 2.38 in H
Mars® 90291 General-Purpose Switching Relay, 110/120 V Control, 1 -Pole, SPST, 1NO Switch Contact, 50/60 Hz, 2.38 in H
Manufacturer: RectorSeal
Brand: Mars®
Part #: 306405
MPN: 90291
CPN:
| Contact Configuration | : | SPST |
| Control Voltage | : | 110/120 V |
| Depth | : | 1-1/2 in |
| Frequency | : | 50/60 Hz |
| Function Type | : | Relay |
| Height | : | 2.38 in |
| Number of Poles | : | 1 |
| Package Quantity | : | 1 Case |
| Packaged Depth | : | 16.3 in |
| Packaged Height | : | 8.8 in |
| Packaged Width | : | 12.4 in |
| Product Family | : | 903 Series |
| Product Type | : | Relay |
| Shipping Weight | : | 17.1 lb |
| Switch Contact Type | : | 1NO |
| Switching Current | : | 7/8/12 A |
| Switching Voltage | : | 120/240/277 V |
| UL Listed | : | Yes |
| VA Rating | : | 3 VA, 5 VA |
| Width | : | 1.63 in |
The MARS Series 903 relays are among the most popular relays used in air conditioning today. They will replace the WR/Essex/RBM Type 84 (90-290 thru 90-295) quick-connect and screw terminal versions.
Mars® General-Purpose Switching Relay, Relay, 110/120 V Control, 1 -Pole, SPST, 1NO Switch Contact, 120/240/277 V Switching Voltage, 7/8/12 A Switching Current, 50/60 Hz, 2.38 in H, 1.63 in W, 1-1/2 in D, 3 VA, 5 VA VA, Yes, 903 Series, 17.1 lb, 8.8 in, 12.4 in, 16.3 in, 1 Case, Relay
- The most popular relays used in air conditioning
- Replaces WR/Essex/RBM Type 84
- Tab bracket, Non-positional
