| Adjustable | : | Yes |
| Amperage Rating | : | 1 A |
| Depth | : | 3.6 in |
| Electrical Connection Type | : | Quick Connect Terminal |
| Frequency | : | 50/60 Hz |
| Function Type | : | Timer |
| Height | : | 1-1/2 in |
| Package Quantity | : | 1 Case |
| Packaged Depth | : | 15.8 in |
| Packaged Height | : | 16.6 in |
| Packaged Width | : | 13 in |
| Product Type | : | Timer |
| Product Weight | : | 0.1 lb |
| Shipping Weight | : | 23.8 lb |
| Voltage Rating | : | 18-240 V |
| Width | : | 2.3 in |

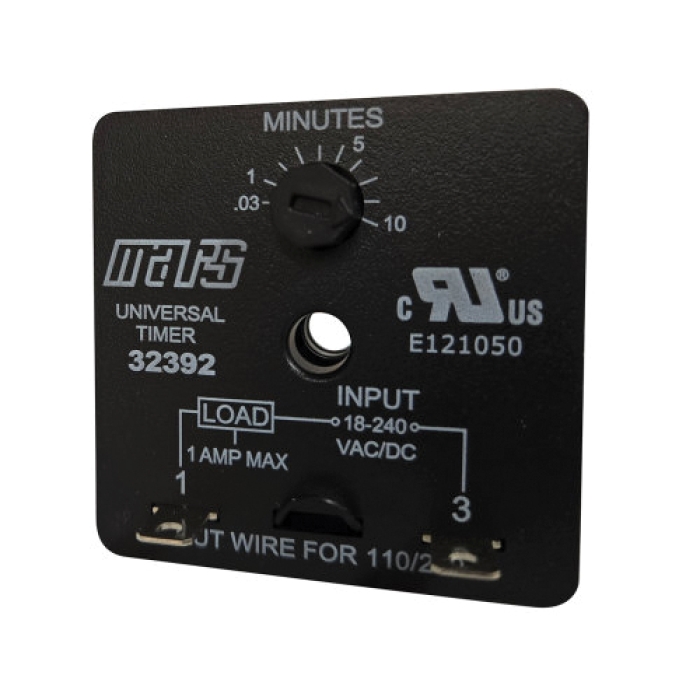

MARS solid state delay on break timers are designed to prevent short cycling of air conditioning, refrigeration and heat pump compressors. Upon application of power the load is energized. When the thermostat opens, or if there is a momentary loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. MARS number 32392 is a versatile two wire timer that features adjustable timing and can be used with any voltage from 18 thru 240 VAC, 50 or 60 Hz.
Mars® Delay-On-Break Timer, 18-240 V, 1 A, Quick Connect Terminal Electrical Connection, Adjustable: Yes, 50/60 Hz Frequency, 1-1/2 in Height, 2.3 in Width, 3.6 in Depth, Timer Function Type
- 1 to 3 second random re-start
- Dial adjustable
- Compact size
- Mounts in any position
- .25 in. quick connect terminals
- Proven reliability
- MARS delay-on-break timers are not load sensitive
