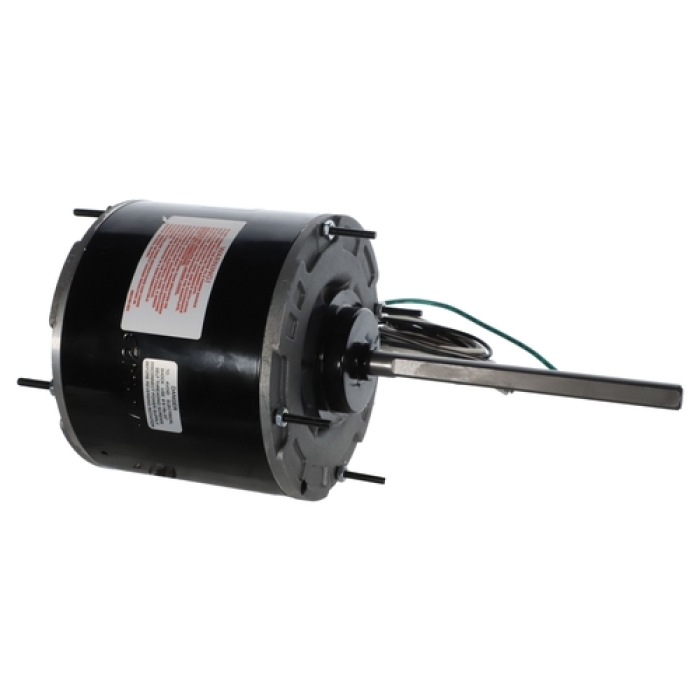

Packard 40825 Condenser Fan Motor, 1/4 hp Motor, 208-230 V, 1 ph, 825 rpm Motor, PSC Motor, 48 NEMA, 1-Speed, 60 Hz
Packard 40825 Condenser Fan Motor, 1/4 hp Motor, 208-230 V, 1 ph, 825 rpm Motor, PSC Motor, 48 NEMA, 1-Speed, 60 Hz
Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 304028
MPN: 40825
CPN:
| Amperage Rating | : | 1.3 A, 1.4 A |
| Bearing Type | : | Ball |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Condenser Fan Motor |
| Motor HP | : | 1/4 hp |
| Motor RPM | : | 825 rpm |
| Motor Type | : | PSC |
| Mounting Type | : | Ring Thru Bolt |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 14.1 in |
| Packaged Height | : | 7.3 in |
| Packaged Width | : | 6.9 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 6-1/2 in |
| Shipping Weight | : | 13.85 lb |
| Voltage Rating | : | 208-230 V |
| Width | : | 5-5/8 in |
The Packard 40825, 1/4 HP 825 208-230V condenser fan motor provides a reliable aftermarket replacement for numerous OEM blower motors. The PSC design provides efficiency while the mounting options and long leads allow for easy and adaptable installation options.
Packard Condenser Fan Motor, 1/4 hp Motor HP, 208-230 V, 1 ph, 825 rpm Motor RPM, PSC Motor, 48 Frame, 1 Speed, 1/2 in Shaft Diameter, 6-1/2 in Shaft Length, 5-5/8 in Width, Reversible Rotation Direction, 1.3 A, 1.4 A, Ball Bearing, 60 Hz Frequency, Ring Thru Bolt Mounting
- PSC Design
- Water proof reversing plug
- Totally enclosed
