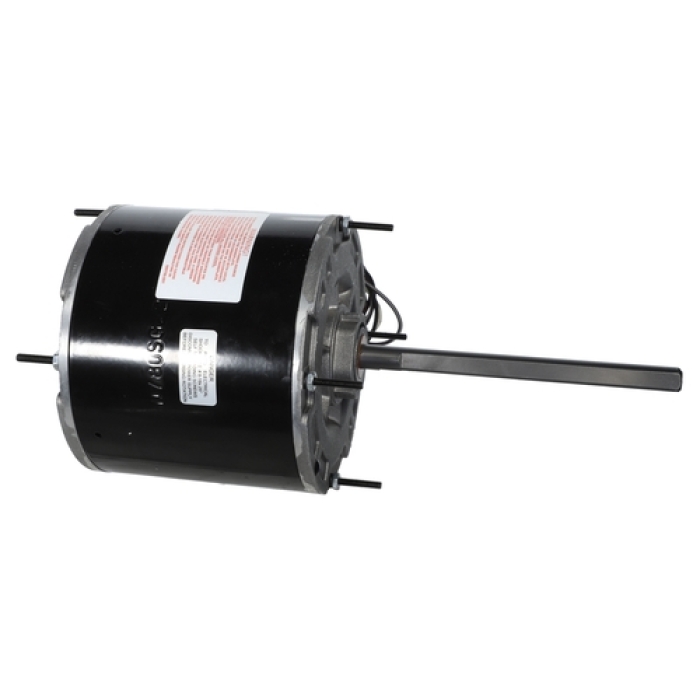

Packard 45488B Multi-Horsepower Condenser Fan Motor, 1/4 hp, 1/5 hp, 1/6 hp, 1/8 hp Motor, 208-230 V, 1 ph, PSC Motor
Packard 45488B Multi-Horsepower Condenser Fan Motor, 1/4 hp, 1/5 hp, 1/6 hp, 1/8 hp Motor, 208-230 V, 1 ph, PSC Motor
Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 304397
MPN: 45488B
CPN:
| Amperage Rating | : | 1.8 A |
| Bearing Type | : | Ball |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Condenser Fan Motor |
| Motor HP | : | 1/4 hp, 1/5 hp, 1/6 hp, 1/8 hp |
| Motor RPM | : | 825 rpm |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 13.9 in |
| Packaged Height | : | 6.8 in |
| Packaged Width | : | 6.8 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 6-1/2 in |
| Shipping Weight | : | 14.6 lb |
| Voltage Rating | : | 208-230 V |
The Packard 45488B, PkdMulti-HPCondenserFanMtr covers a range of condenser fan motor applications. A reversing plug and multiplel mounting options add to the Multi-HP motor's flexibility.
Packard Multi-Horsepower Condenser Fan Motor, 1/4 hp, 1/5 hp, 1/6 hp, 1/8 hp Motor HP, 208-230 V, 1 ph, 825 rpm Motor RPM, PSC Motor, 48 Frame, 1 Speed, 1/2 in Shaft Diameter, 6-1/2 in Shaft Length, Reversible Rotation Direction, 1.8 A, Ball Bearing, 60 Hz Frequency
- All angle mounting
- Electrically reversible
- Totally enclosed
