| Amperage Rating | : | 0.39 A |
| Bearing Type | : | Ball |
| CFM Rating | : | 80 cfm, 100 cfm |
| Color | : | White |
| Duct Size | : | 4 in |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 13 sq-in |
| Height | : | 3-3/8 in |
| Length | : | 10-1/4 in |
| Material | : | Steel |
| Motor Specifications | : | ECM Motor |
| Mounting Type | : | Ceiling, Wall |
| Noise Rating | : | <0.3 sones, 0.06 sones, 0.5 sones, 0.4 sones, 0.8 sones, 0.9 sones, 1.3 sones |
| Power Rating | : | 4.5 W, 8.5 W, 12.4 W |
| Pressure Rating | : | 0.1 to 0.37 in-WG |
| Series | : | WhisperValue® DC™ |
| Speed Rating | : | 954 rpm, 1176 rpm, 1300 rpm, 856 rpm, 1114 rpm, 1270 rpm, 805 rpm, 1088 rpm, 1260 rpm, 770 rpm, 1076 rpm, 1250 rpm, 733 rpm, 1050 rpm, 1230 rpm, 723 rpm, 1037 rpm, 1215 rpm, 711 rpm, 1033 rpm, 1200 rpm |
| Voltage Rating | : | 120 V |
| Width | : | 10-1/4 in |

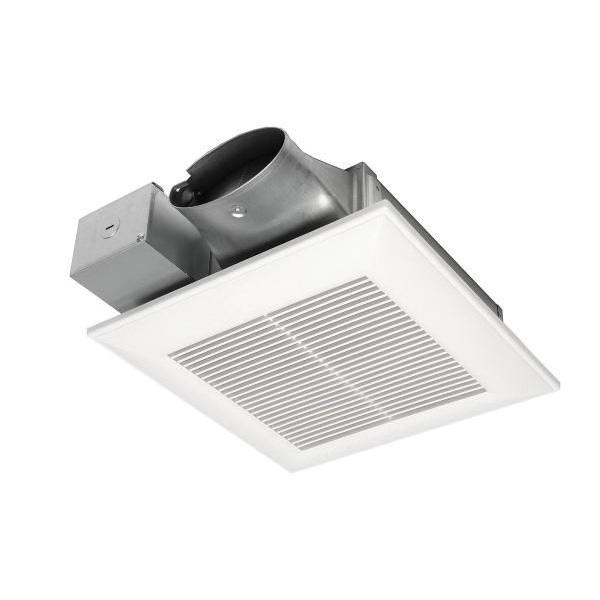

Panasonic Ventilation Fan, Series: WhisperValue® DC™, 120 V, 0.39 A, 60 Hz, 4.5 W, 8.5 W, 12.4 W, 0.1 to 0.37 in-WG, Steel, White, Ceiling, Wall Mounting, 10-1/4 in Length, 10-1/4 in Width, 3-3/8 in Height, 13 sq-in Grille, Ball Bearing, 80 cfm, 100 cfm Rating, 4 in Duct, Motor Specifications: ECM Motor, <0.3 sones, 0.06 sones, 0.5 sones, 0.4 sones, 0.8 sones, 0.9 sones, 1.3 sones Noise Rating, 954 rpm, 1176 rpm, 1300 rpm, 856 rpm, 1114 rpm, 1270 rpm, 805 rpm, 1088 rpm, 1260 rpm, 770 rpm, 1076 rpm, 1250 rpm, 733 rpm, 1050 rpm, 1230 rpm, 723 rpm, 1037 rpm, 1215 rpm, 711 rpm, 1033 rpm, 1200 rpm
- Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
- Pick-A-Flow™ airflow selector one fan, you choose the cfm 80 or 110
- Built-in multi-speed control for ASHRAE 62.2 compliance
- Multi-speed control with 20 min time delay for ASHRAE 62.2 compliance
- Elegant grille design compliments the aesthetics of any bathroom
- Lighted models incorporate one 10 W dimmable LED chip panel with <1 W LED night light for warm, energy efficient illumination night light must be wired separately
- 3-3/8 in housing depth lowest profile ENERGY STAR® fan available fits anywhere
- Unique L-shaped bracket simplifies installation and provides strong support
- UL approved for ceiling or wall-mount actually fits in a 2 x 4 stud wall
- Wall installation reduces cost by eliminating the need to incorporate a radiation damper when penetrating fire rated ceilings, making it ideal for multi-family applications
