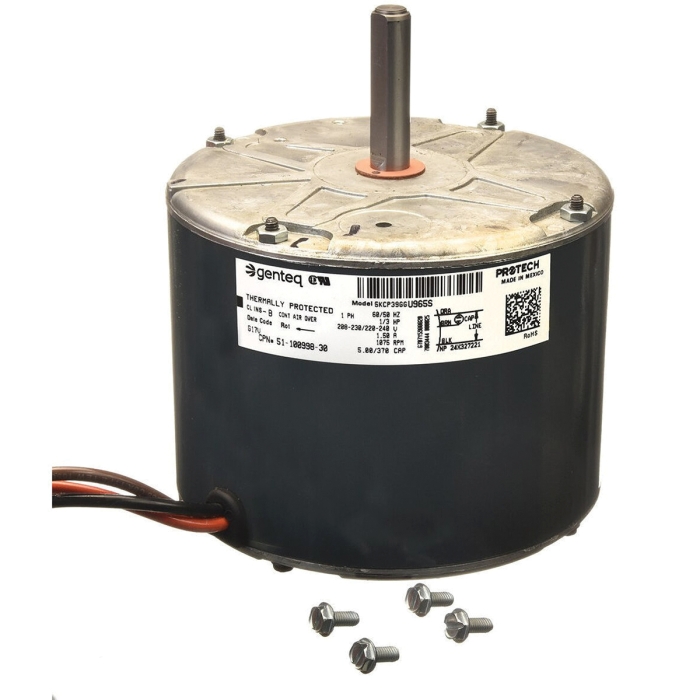

PROTECH™ 51-100998-30 Condenser Motor, 1/3 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1 -Speed, 2 in L Shaft
PROTECH™ 51-100998-30 Condenser Motor, 1/3 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1 -Speed, 2 in L Shaft
| Amperage Rating | : | 3 A |
| Bearing Type | : | Sleeve |
| Compatible Models | : | Model RANC, RAPC, RAKB, RPNK, RPPB |
| Depth | : | 6-1/2 in |
| For Use With | : | RANC, RAPC, RAKB, RPNK and RPPB Air Conditioning Condensing Units |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 1075 rpm |
| Mounting Type | : | End-Boss, Shell Band |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 14.5 in |
| Packaged Height | : | 6.8 in |
| Packaged Width | : | 7.3 in |
| Phase | : | 1 ph |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 2 in |
| Shipping Weight | : | 11.63 lb |
| Voltage Rating | : | 208/230 V |
The ProTech® fan condenser motor transfers heat from the refrigerant system to the outdoor air, preventing your AC air compressor from overheating. This OEM air conditioner motor replacement extends HVAC equipment life by replacing old or damaged fan motors in ventilators, fans and blowers. The HVAC parts match the original manufacturer's condenser motor to ensure seamless installation and consistent performance.
PROTECH™ Condenser Motor, 1/3 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1 -Speed, 1/2 in Dia Shaft, 2 in L Shaft, 6-1/2 in D, CCW, 3 A, 11.63 lb, 6.8 in, 7.3 in, 14.5 in, Compatible Models: RANC, RAPC, RAKB, RPNK, RPPB, For Use With: RANC, RAPC, RAKB, RPNK and RPPB Air Conditioning Condensing Units, Motor, Sleeve Bearing, 50/60 Hz, End-Boss, Shell Band Mounting
- Air conditioner condenser motor
- Thermally protected
- OEM genuine factory authorized part
- Suitable for aftermarket retrofit in many other applications
