| Amperage Rating | : | 2 A |
| Application | : | Thermostat Wiring |
| Electrical Connection Type | : | Wire / Pigtail Leads |
| For Use With | : | HVAC Systems~Thermostat |
| Function Type | : | Wire Extender |
| Installation / Mounting Type | : | In-Wall |
| Insulated | : | Yes |
| Number of Connections | : | 2 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 7.7 in |
| Packaged Height | : | 1.7 in |
| Packaged Width | : | 4.75 in |
| Phase | : | 1 ph |
| Product Family | : | FAST-STAT |
| Product Type | : | Wire Extender |
| Shipping Weight | : | 0.32 lbs |
| Voltage Rating | : | 24 V |

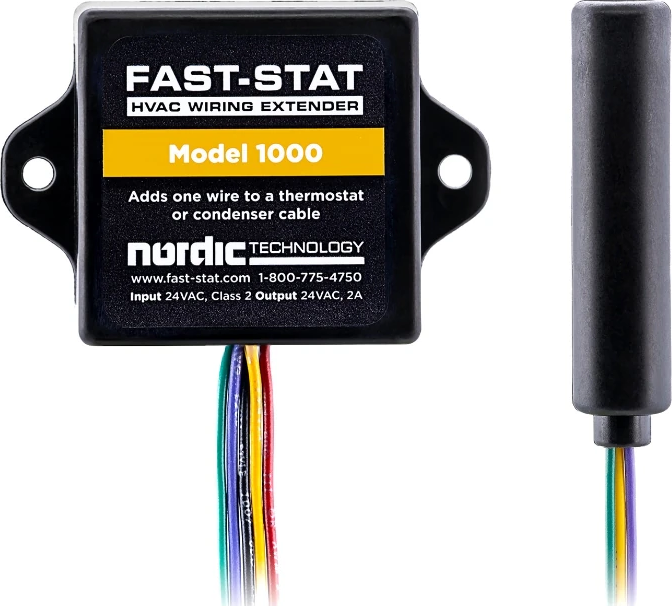

The FAST-STAT 1000 Wire Extender provides a simple and cost-effective solution for adding an extra conductor to an existing thermostat or condenser cable. This device eliminates the need to pull new wire through finished walls, saving significant time and labor during system installations, upgrades, or repairs.
