| Compatible Models | : | RPDC~RPKA~RPLA~RPMB~RPML~RQPL-C |

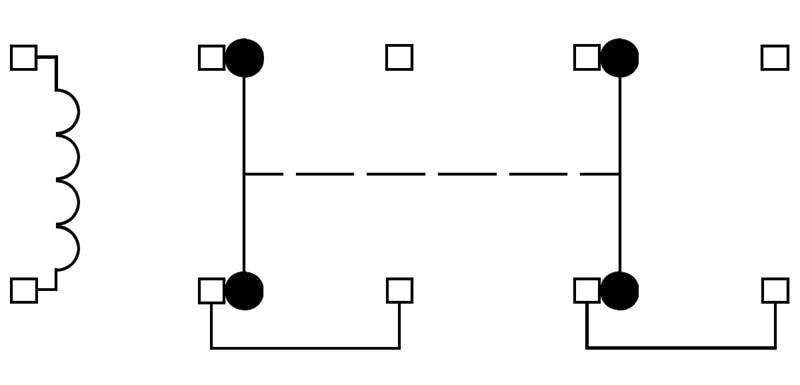

| Contact Configuration | : | 2NO/2NC |
| Control Voltage | : | 24 V |
| Electrical Connection Type | : | Quick-Connect |
| For Use With | : | HVAC Equipment |
| Frequency | : | 50/60 Hz |
| Function Type | : | Relay |
| Number of Poles | : | 2 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 2.65 in |
| Packaged Height | : | 1.95 in |
| Packaged Width | : | 2.2 in |
| Product Family | : | ProTech |
| Product Type | : | Relay |
| Shipping Weight | : | 0.38 lbs |
| Switch Contact Type | : | DPDT |
| Switching Current | : | 13.8~6.9 A |
| UL Listed | : | Yes |

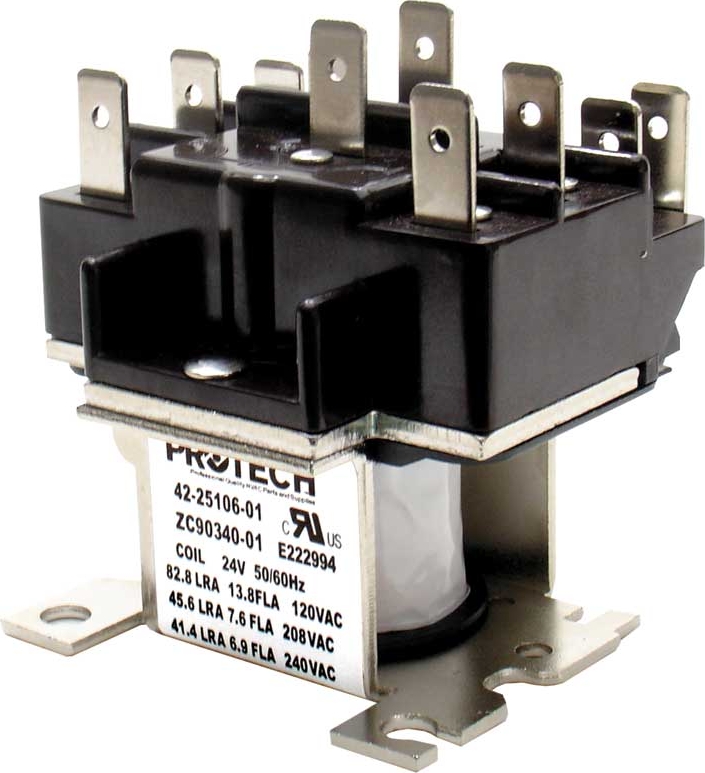

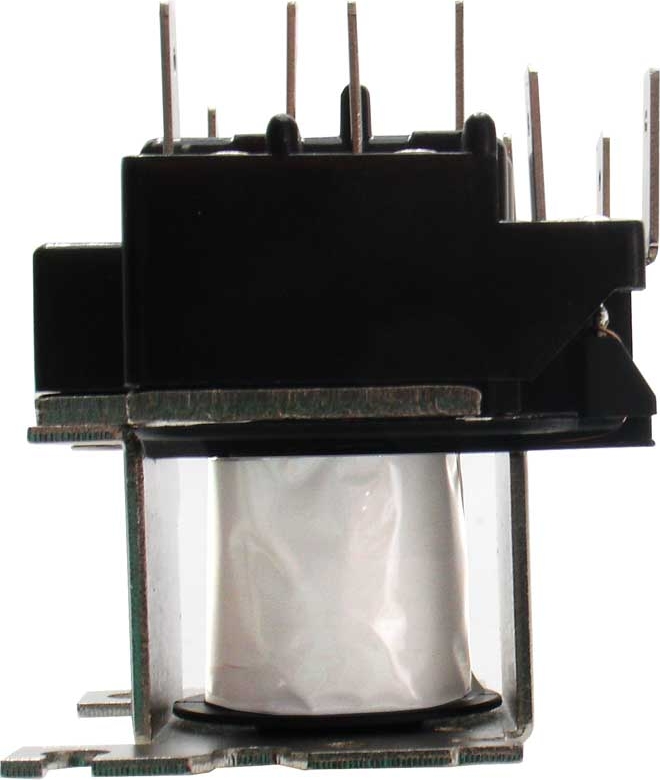

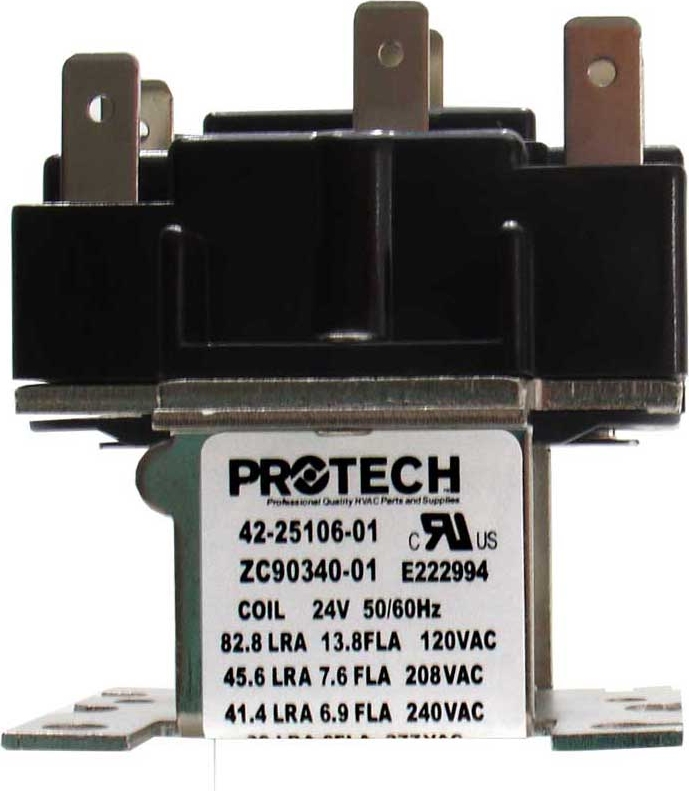

This ProTech control relay is a genuine OEM component designed for reliable switching in Rheem HVAC systems. Featuring a DPDT (2NO/2NC) contact configuration and an open coil design, it is suitable for a variety of control applications where multiple circuits need to be managed.As a direct replacement part, this relay operates on a standard 24V AC coil and is engineered to restore original system performance and ensure proper function with specified equipment.
- Standard Voltage:Operates on a common 24
- VAC, 50/60 Hz control circuit.
- Quick Installation:Features 1/4-inch quick-connect terminals for fast and secure wiring during service.
- Robust Switching:Reliably handles electrical loads with ratings of 13.8 FLA at 120
- V and 6.9 FLA at 230
- V.
- Safety Certified:UL recognized in the US and Canada, ensuring adherence to safety and performance standards.
- Broad Compatibility:Compatible with a range of Rheem equipment, including RPDC, RPKA, RPLA, RPMB, RPML, and RQPL-C models, as well as the RXRX-BFF02
- C economizer.
