| Capacitance (MFD) | : | 80 MFD |
| Capacitor Type | : | Single Run |
| Compatible Models | : | RARL~RPRL |

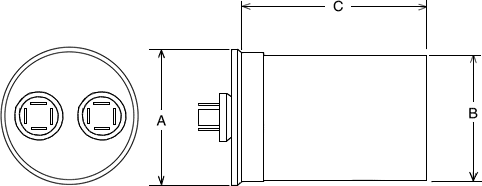

| Depth | : | 2.62 in |
| Diameter | : | 2.62 in |
| Electrical Connection Type | : | Quick-Connect |
| For Use With | : | Air Conditioner |
| Frequency | : | 50/60 Hz |
| Function Type | : | Capacitor |
| Height | : | 5.12 in |
| Package Quantity | : | 1 |
| Packaged Depth | : | 4.8 in |
| Packaged Height | : | 2.7 in |
| Packaged Width | : | 2.7 in |
| Product Family | : | ProTech |
| Shape | : | Round |
| Shipping Weight | : | 0.58 lbs |
| UL Listed | : | Yes |
| Voltage Rating | : | 370 V |
| Width | : | 2.62 in |

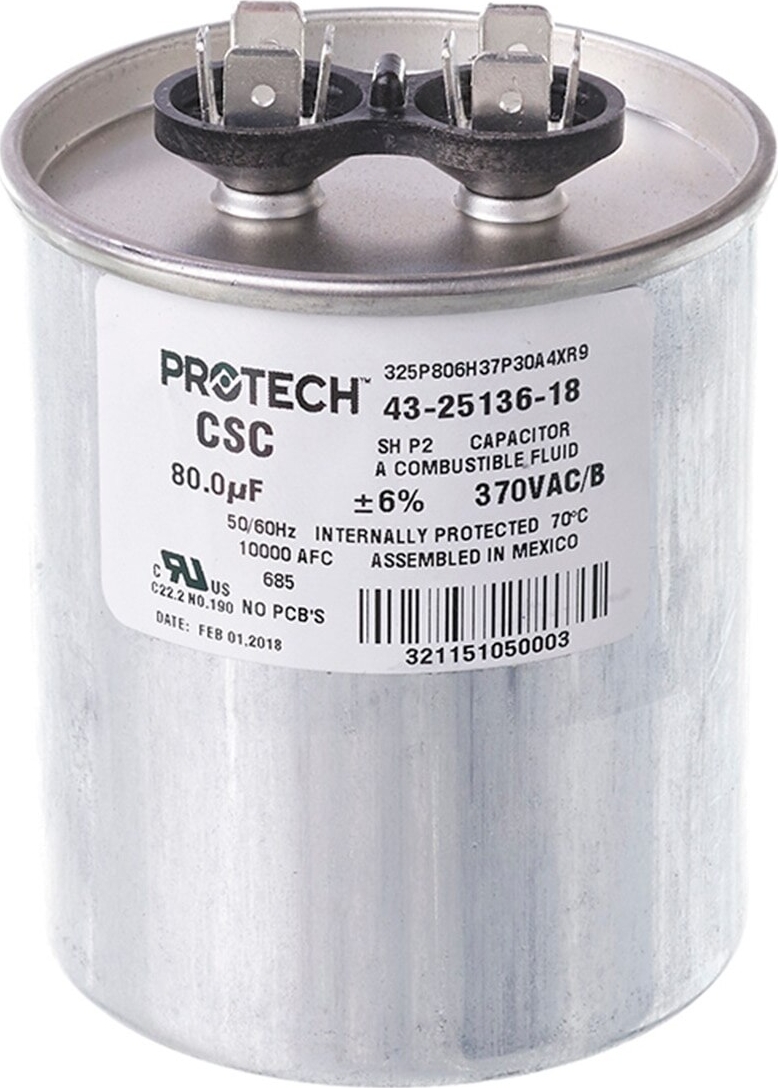

This ProTech single run capacitor is a reliable replacement part designed to store and release the electrical energy needed for smooth startups and operation of air conditioner compressor and fan motors. Each capacitor is built and tested to high standards to ensure safe and dependable performance in compatible HVAC systems.
- Enhanced Safety:Features a physical pressure interrupter to safely disable the capacitor at the end of its service life.
- Quality Assurance:Undergoes 100% electrical testing to guarantee reliable performance right out of the box.
- Certified Reliability:UL 810 certified and tested for up to 5,000 Amps Fault Current (AFC) for dependable operation.
- Direct Compatibility:Designed as a direct replacement component for Rheem RARL and RPRL model series.
- Durable Construction:Built with non-PCB dielectric fluid and housed in a sturdy aluminum case.
