| Compatible Models | : | RKKB |
| Electrical Connection Type | : | Quick-Connect |
| For Use With | : | HVAC System |
| Frequency | : | 50/60 Hz |
| Function Type | : | Transformer |
| Installation / Mounting Type | : | Channel Mount |
| Package Quantity | : | 1 |
| Packaged Depth | : | 7.15 in |
| Packaged Height | : | 3.7 in |
| Packaged Width | : | 5.9 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Shipping Weight | : | 2.82 lbs |
| VA Rating | : | 75 VA |
| Voltage Rating | : | 208/230/24 V |

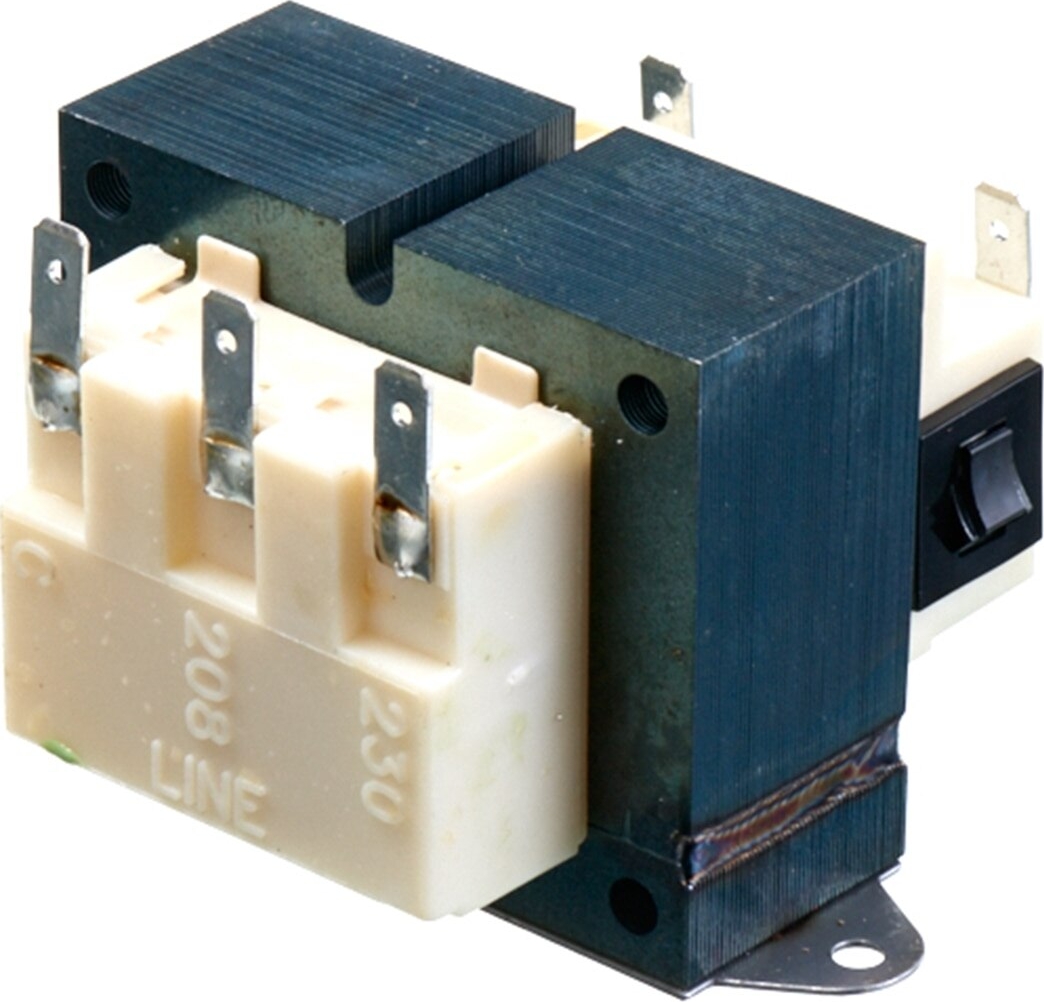

The ProTech 46-42515-01 is a 75 VA transformer designed to reliably power low-voltage components in HVAC systems. It efficiently steps down 208/230V primary voltage to a 24V secondary output, making it suitable for operating thermostats, control boards, and other sensitive electronics. Operating at 50/60 Hz, this transformer is a key component for ensuring the correct power supply within compatible equipment.
- Overcurrent Protection:Features an integrated 3.2
- A circuit breaker to safeguard low-voltage components.
- Power Limiting Design:Rated as a Class 2 transformer, ensuring safe, power-limited output for control circuits.
- Easy Mounting:Designed with a channel 2-hole mount for straightforward and secure installation.
- Simple Wiring:Equipped with 1/4-inch male quick-connect terminals for fast and reliable electrical connections.
- System Compatibility:Specifically designed for use with Rheem RKKB model HVAC units.
