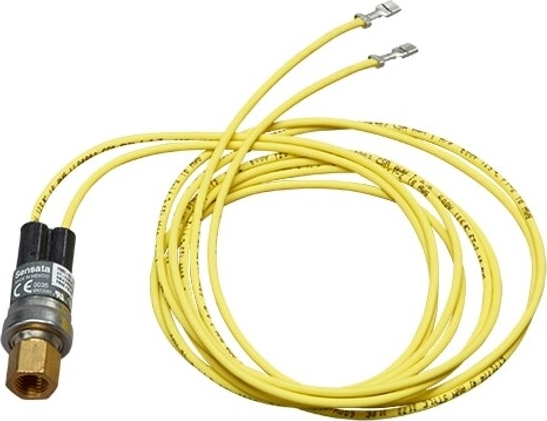

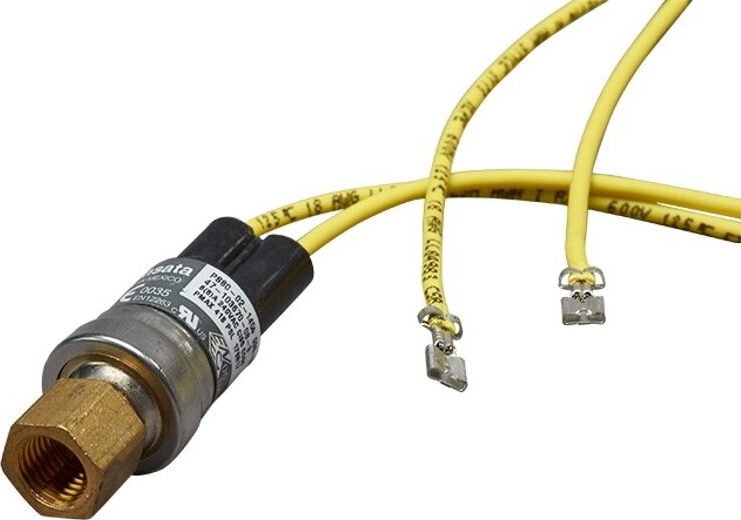

Rheem® 47-103670-08 ProTech Low Pressure Switch - 50 PSI Open, 95 PSI Close, 24V / 120V / 240V, Open on Fall, SPST
Rheem® 47-103670-08 ProTech Low Pressure Switch - 50 PSI Open, 95 PSI Close, 24V / 120V / 240V, Open on Fall, SPST
Manufacturer: Rheem® Manufacturing
Brand: Rheem®
Part #: 304519
MPN: 47-103670-08
CPN:
| Adjustable | : | No |
| Amperage Rating | : | 6 A |
| Close Pressure | : | 95 PSI |
| Connection Size 1 | : | 1/4 in |
| Connection Sizes (Custom) | : | 1/4 in |
| Connection Type 1 | : | SAE Flare |
| Connection Types (Custom) | : | SAE Flare |
| Differential Pressure | : | 45 PSI |
| Electrical Connection Type | : | Wire / Pigtail Leads |
| For Use With | : | HVAC System |
| Function Type | : | Pressure Switch |
| Maximum Working Pressure | : | 600 PSI |
| Open Pressure | : | 50 PSI |
| Package Quantity | : | 1 |
| Packaged Depth | : | 5.45 in |
| Packaged Height | : | 2.1 in |
| Packaged Width | : | 3.1 in |
| Product Family | : | ProTech |
| Product Type | : | Low Pressure Switch |
| Reset Type | : | Auto |
| Shipping Weight | : | 0.2 lbs |
| Switch Action | : | Open on Fall |
| Switch Contact Type | : | SPST |
| Voltage Rating | : | 24~120~240 V |
The ProTech automatic low pressure switch is a durable and reliable safety control designed for a wide variety of applications, including HVAC/R systems, pumps, and compressors. It protects equipment by interrupting the electrical circuit in the event of a significant pressure drop, helping to prevent damage and reduce maintenance costs.This single-pole, single-throw (SPST) switch is engineered for consistent performance with fixed pressure settings and a robust, sealed design to ensure a long service life in demanding environments.
