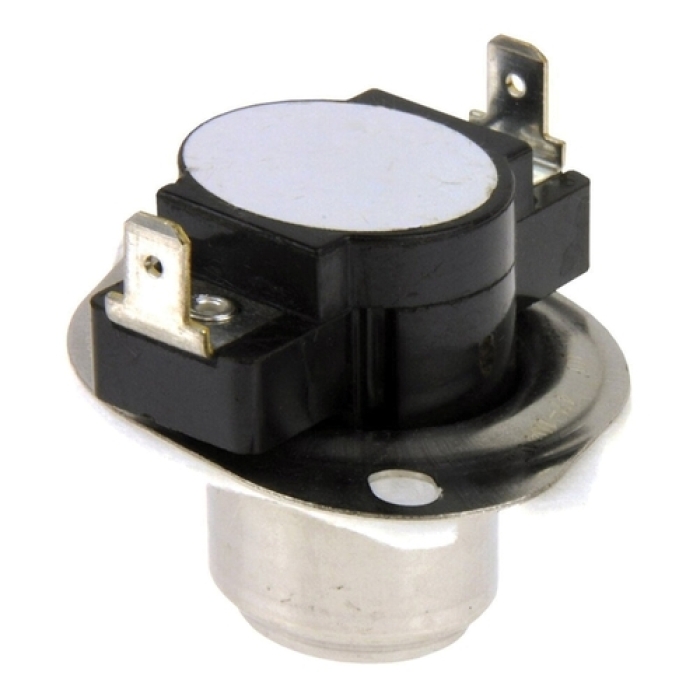

Rheem® 47-104465-01 Limit Switch, 26 V Control, 1-Pole, SPST, Automatic Reset, 115 deg F Cut In, 95 deg F Cut Out
Rheem® 47-104465-01 Limit Switch, 26 V Control, 1-Pole, SPST, Automatic Reset, 115 deg F Cut In, 95 deg F Cut Out
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 304526
MPN: 47-104465-01
CPN:
| Color | : | Yellow |
| Compatible Models | : | R96VA, R97MV, R97V-KSA, R97V-USA, R98MV, R98V-USA |
| Contact Configuration | : | SPST |
| Control Voltage | : | 26 V |
| Cut In Temperature | : | 115 deg F |
| Cut Out Temperature | : | 95 deg F |
| Differential Temperature | : | 20 deg F |
| Function Type | : | Switch |
| Mounting Type | : | Flanged Airstream |
| Number of Poles | : | 1 |
| Product Type | : | Switch |
| Reset Type | : | Automatic |
Rheem® Limit Switch, 26 V Control, 1 Poles, Contact Configuration: SPST, Automatic Reset, 115 deg F Cut In Temperature, 95 deg F Cut Out Temperature, 20 deg F Differential Temperature, Switch Function Type, Yellow, Flanged Airstream Mounting, Compatible Models: R96VA, R97MV, R97V-KSA, R97V-USA, R98MV, R98V-USA
- 60T Series
- Enclosed disc face
- +/- 5 deg F open, +/- 5 deg F close tolerance temperature
- 25/32 in maximum mounting insertion depth
