| Compatible Models | : | R801P-ZSA,ZSB~R801S-ZSA,ZSB~RGLG~RGLH~RGLJ~RGLN~RGPH~RGPJ~RGPN~RGPP~RGVG~RGVH~RGVJ |
| Cut In Temperature | : | 100 F |
| Cut Out Temperature | : | 110 F |
| Differential Temperature | : | 10 F |
| Electrical Connection Type | : | Quick-Connect |
| For Use With | : | Furnace |
| Function Type | : | Limit Switch |
| Number of Poles | : | 1 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 5 in |
| Packaged Height | : | 2.1 in |
| Packaged Width | : | 3.25 in |
| Product Family | : | ProTech |
| Product Type | : | Limit Switch |
| Reset Type | : | Auto |
| Shipping Weight | : | 0.045 lbs |
| Switch Action | : | Limit Open on Rise |
| Switch Contact Type | : | SPST (Normally Closed) |
| Switching Current | : | 25 A |
| Switching Voltage | : | 230 V |

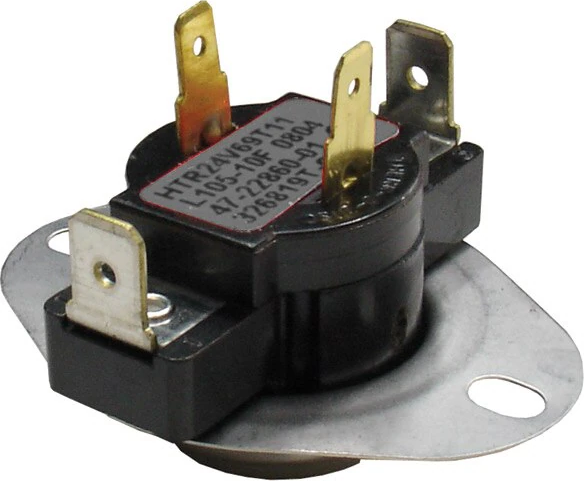

The ProTech 47-22860-04 is a single-pole, single-throw (SPST) limit switch designed to protect HVAC systems from overheating conditions. This normally closed switch automatically opens the electrical circuit when the temperature rises to 110°F and re-closes it when the unit cools down to 100°F.As a genuine OEM replacement part, this switch is rated for 25 amps at 230VAC and is compatible with numerous Rheem furnace models, including the R801, RGL, RGP, and RGV series. Its auto-reset capability ensures continuous operation without the need for manual intervention after a high-temperature event.
- Heat-Assisted Operation:Features a heat-assisted (HALC) design for a rapid and precise response to temperature changes within the blower compartment.

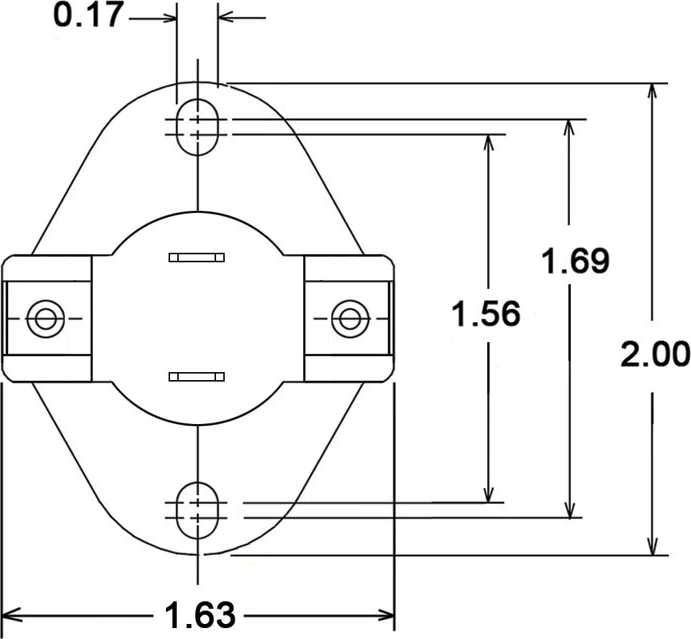

- Flexible Installation:Equipped with a large flanged airstream mount for secure installation and dual quick-connect terminals (1/4-inch outside, 3/16-inch inside) for versatile wiring options.

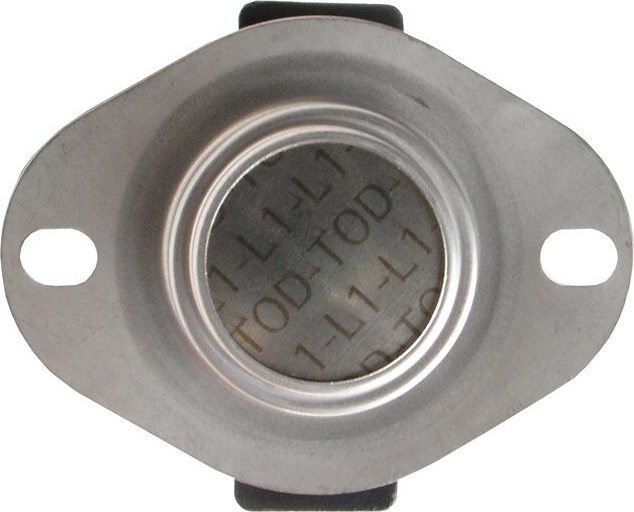

- Reliable Safety:Provides automatic reset functionality and features an exposed disc face for direct and accurate temperature sensing, ensuring dependable system protection.
- OEM Replacement Part:Designed as a genuine Pro
- Tech component to ensure compatibility and performance in a wide range of Rheem gas furnaces.
