| Compatible Models | : | R802P-ZSA~R802P-ZSB~RGDG~RGDJ~RGLK~RGLQ~RGPH~RGPJ~RGPK~RGPL~RGPN~RGPP~RGPQ~RGPR~RGVH~RGVJ~RKKB |
| Cut In Temperature | : | 130 F |
| Cut Out Temperature | : | 150 F |
| Differential Temperature | : | 20 F |
| Electrical Connection Type | : | Quick-Connect |
| For Use With | : | Furnace |
| Function Type | : | Limit Switch |
| Number of Poles | : | 1 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 5.4 in |
| Packaged Height | : | 2.1 in |
| Packaged Width | : | 3.05 in |
| Product Family | : | ProTech |
| Product Type | : | Limit Switch |
| Reset Type | : | Auto |
| Shipping Weight | : | 0.08 lbs |
| Switch Action | : | Limit Open on Rise |
| Switch Contact Type | : | SPST (Normally Closed) |
| Switching Current | : | 15~10 A |
| Switching Voltage | : | 120~230 V |

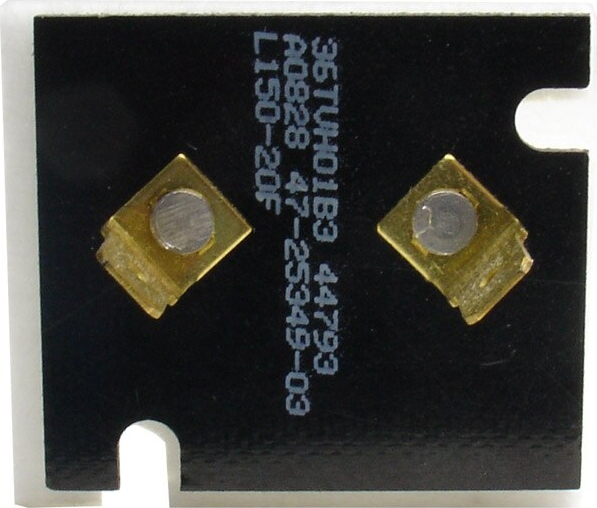

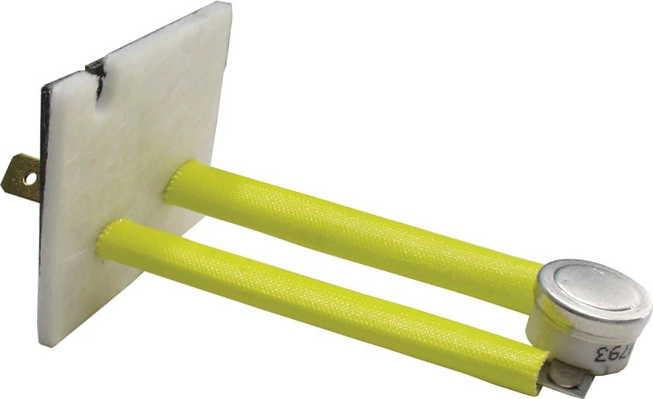

The ProTech high-limit switch provides essential over-temperature protection for a wide range of Rheem HVAC systems. As a factory-specified part, it is engineered to ensure a proper fit and reliable performance, safeguarding critical equipment.This normally closed, single-pole single-throw (SPST) switch is designed to open the electrical circuit when the temperature reaches 150°F. It features an automatic reset that closes the circuit once the temperature falls to 130°F, restoring normal system function without manual intervention.
- Automatic Reset:Automatically restores circuit continuity once the temperature drops to a safe level, eliminating the need for manual resets.
- Precise Protection:Opens the circuit at 150°F and closes at 130°F to accurately protect equipment from overheating conditions.
- Simple Installation:Designed for board mounting and equipped with standard 1/4-inch quick-connect terminals for fast and easy replacement.
- Durable Design:Features an enclosed disc face that protects the internal sensing element from contaminants and physical damage.
- Versatile Electrical Rating:Suitable for a range of applications with a dual voltage rating for 120
- V and 230
- V systems.
