| Amperage Rating | : | 1.5 A |
| Compatible Models | : | RAKB~RALC~RAMC~RAMM~RANC~RAPC~RPKB~RPLB~RPMD~RPMM~RPNK~RPPB |
| Depth | : | 5.609 in |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Height | : | 6.5 in |
| Motor HP | : | 1/3 HP |
| Motor RPM | : | 1,075 RPM |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 14.5 in |
| Packaged Height | : | 6.8 in |
| Packaged Width | : | 7.3 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 2 in |
| Shipping Weight | : | 11.63 lbs |
| Voltage Rating | : | 208/230 V |
| Width | : | 5.609 in |

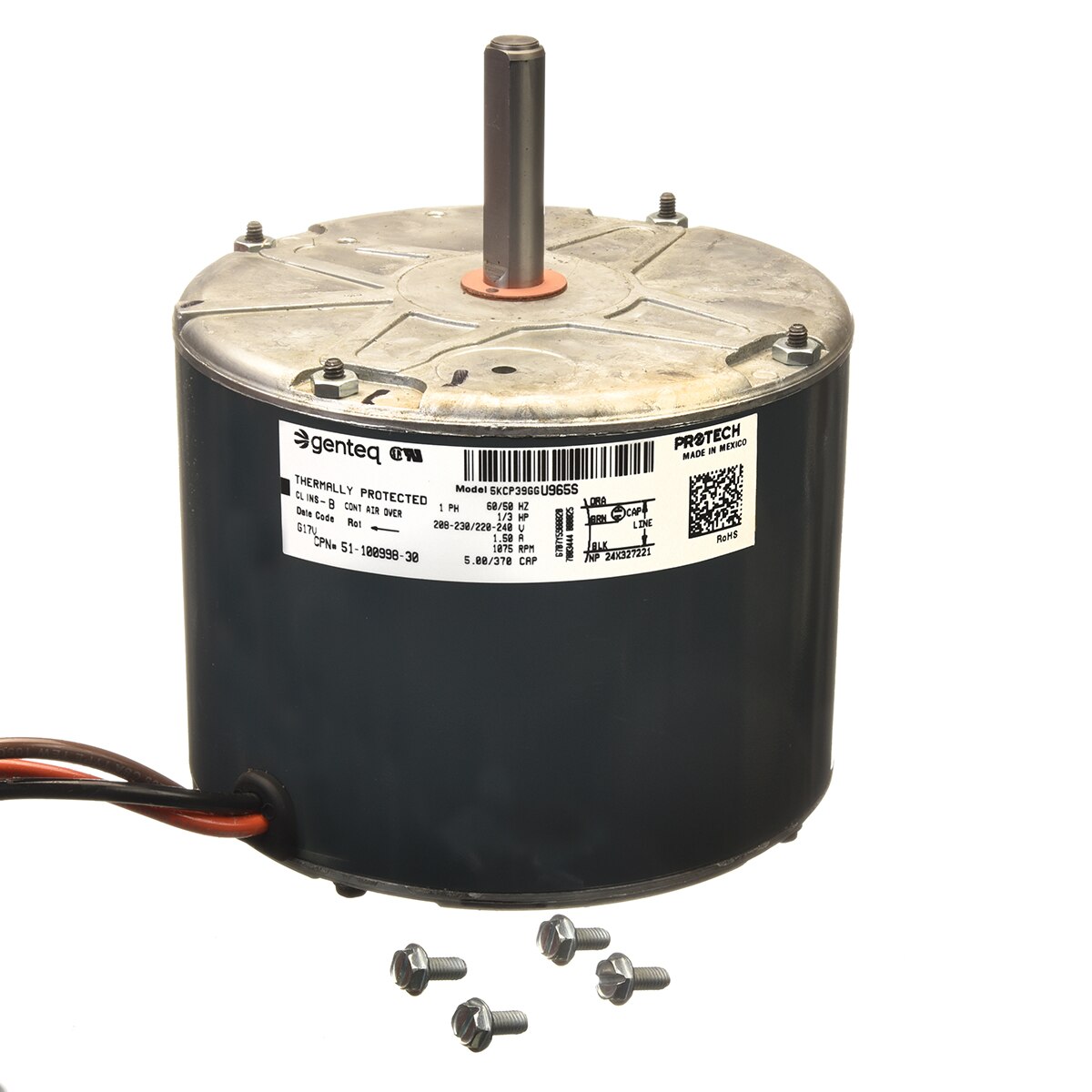

This ProTech condenser fan motor is engineered to efficiently transfer heat from the refrigerant system to the outside air, a critical function for preventing the air compressor from overheating. As an OEM replacement part, it is built to match original manufacturer specifications for a seamless installation and reliable, consistent performance.Replacing a failing motor with this part helps extend the service life of HVAC equipment. It is suitable for use in a variety of ventilators, fans, and blowers that require a motor with its specific ratings.
- OEM Replacement:Designed as a direct OEM replacement for compatible Rheem, Weather
- King, and Sure Comfort units, ensuring proper fit and performance.
- Reliable Operation:Features a Permanent Split Capacitor (PSC) design for consistent and dependable service.
- Durable Construction:Equipped with ball bearings and a totally enclosed non-ventilated (TENV) housing for a long operational life and protection from contaminants.
- Flexible Installation:Offers both end-boss and shell-band mounting options to accommodate various installation requirements.
- Safety Certified:UL Recognized to meet established safety and quality standards.
