| Amperage Rating | : | 0.7~0.8 A |
| Compatible Models | : | RA1324AJ1NA~RA1324AJ1NB~RA1330AJ1NA~RA1330AJ1NB |
| Depth | : | 5.625 in |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Height | : | 5.688 in |
| Motor HP | : | 1/8 HP |
| Motor RPM | : | 1,075 RPM |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 12.9 in |
| Packaged Height | : | 7.45 in |
| Packaged Width | : | 7.65 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 1.75 in |
| Shipping Weight | : | 8.545 lbs |
| Voltage Rating | : | 208/220/230 V |
| Width | : | 5.625 in |

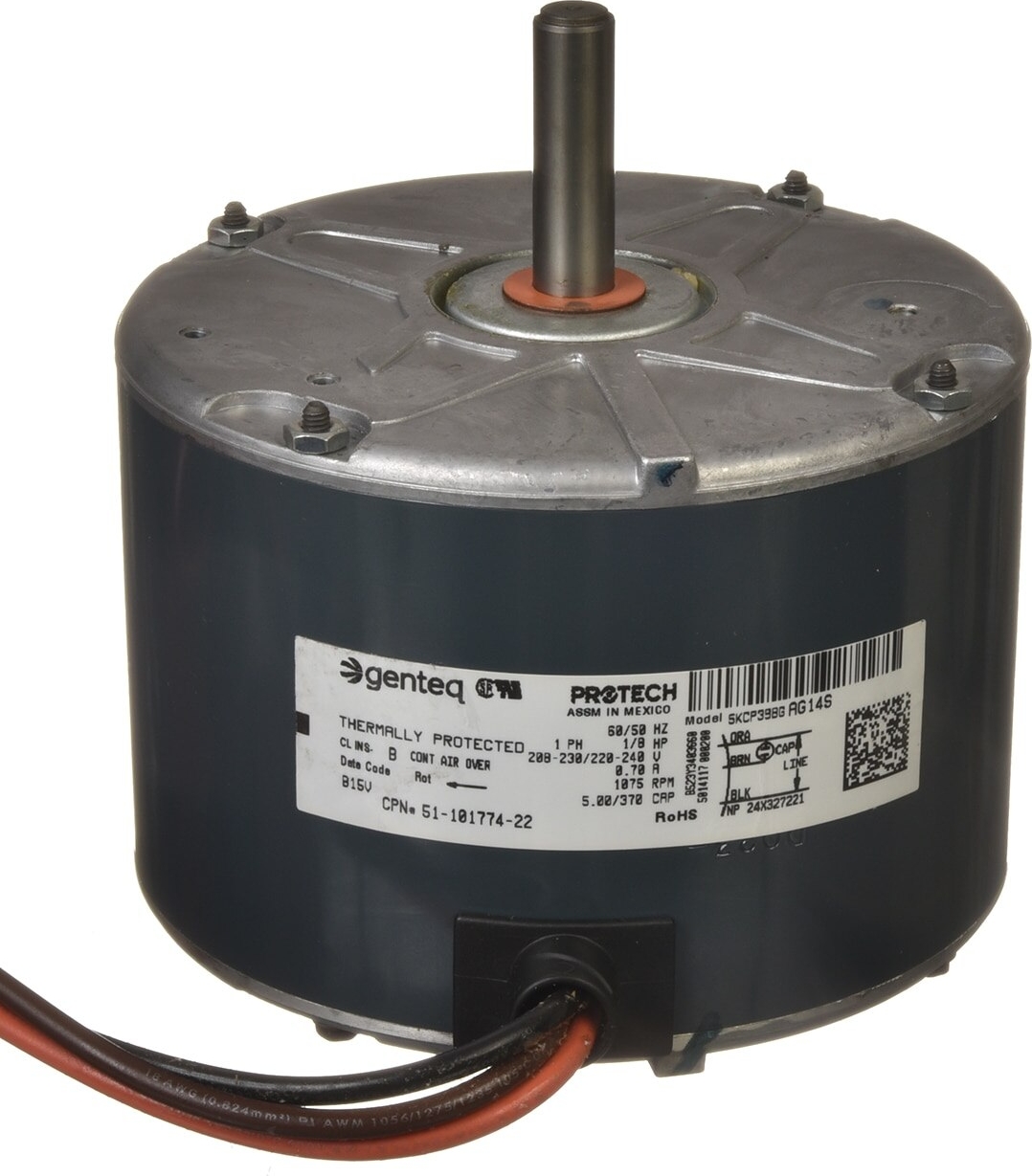

This ProTech 1/8 HP condenser fan motor is a reliable OEM replacement part designed for Rheem and WeatherKing systems. As a single-speed PSC motor, it is engineered to restore original equipment performance by providing the consistent airflow needed for effective condenser operation. This motor is built for direct-drive applications and ensures a proper fit for specified units, simplifying service calls and maintenance.
- OEM Replacement:Serves as a direct replacement motor for a range of Rheem and Weather
- King condenser units.
- Durable Construction:Built with sleeve bearings and a totally enclosed design to withstand demanding outdoor environments.
- Flexible Mounting:Accommodates both end-boss and shell-band mounting configurations for versatile installation.
- Standard Sizing:Features a NEMA 48 frame and a 1/2-inch diameter shaft, ensuring a standard fit for compatible systems.
- Specific Operation:Designed for single-speed operation at 1,075 RPM with a counter-clockwise (CCW) rotation as viewed from the shaft end.
- Direct Compatibility:Engineered for use with specific models, including RA1324
- AJ1
- NA, RA1324
- AJ1
- NB, RA1330
- AJ1
- NA, and RA1330
- AJ1
- NB.
