| Amperage Rating | : | 1 A |
| Compatible Models | : | RAPM~RPQL |
| Depth | : | 5.625 in |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Height | : | 7.313 in |
| Motor HP | : | 1/5 HP |
| Motor RPM | : | 825 RPM |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 14.5 in |
| Packaged Height | : | 6.8 in |
| Packaged Width | : | 7.2 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 2.25 in |
| Shipping Weight | : | 10.6 lbs |
| Voltage Rating | : | 208/230 V |
| Width | : | 5.625 in |

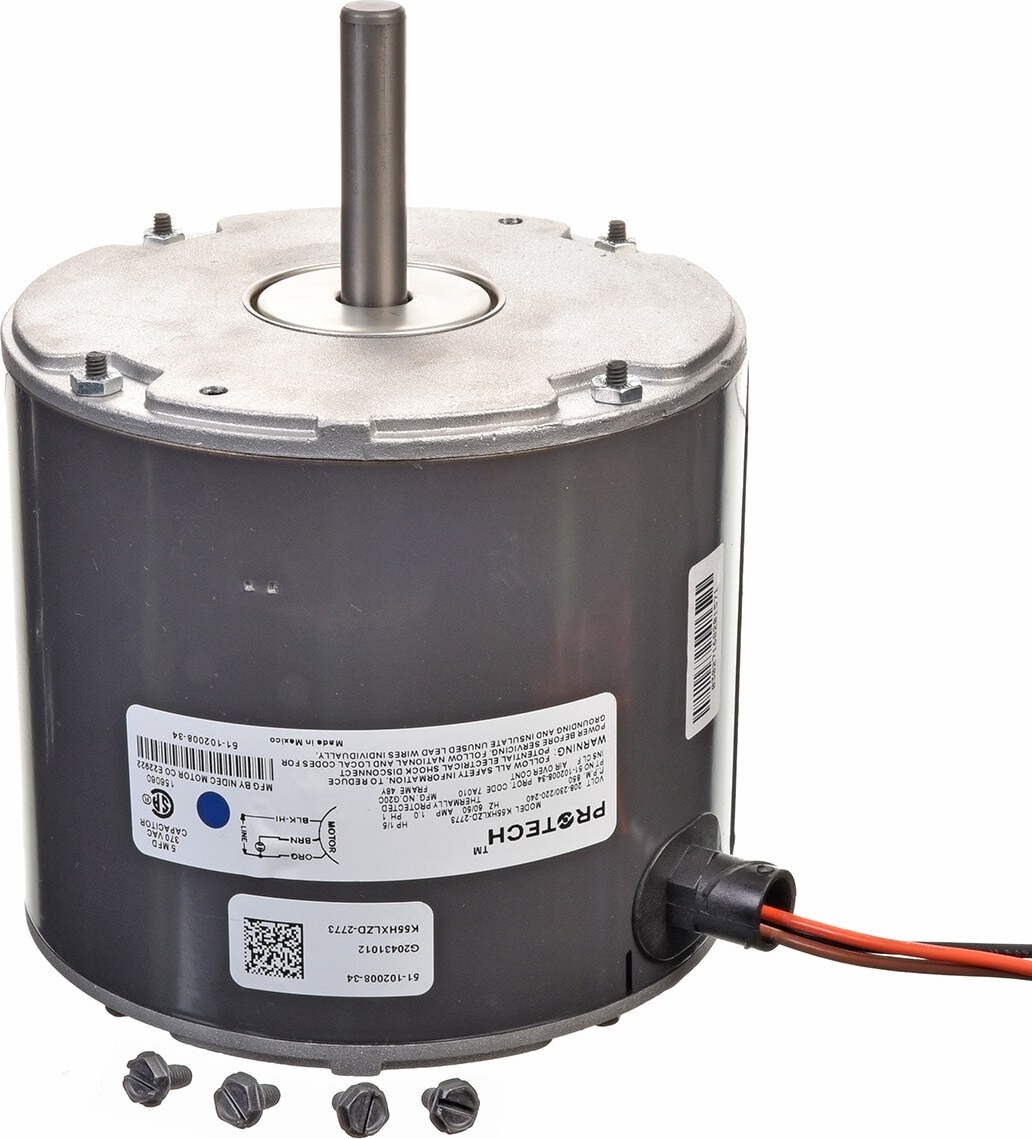

This ProTech 1/5 HP condenser fan motor is a dependable replacement component for single-phase, 208/230V systems. It operates at a single speed of 825 RPM with a counter-clockwise rotation, providing consistent airflow for condenser units.Engineered as a direct drive motor, it is fully compatible with Rheem RAPM and RPQL series models, ensuring a proper fit and restoring original equipment performance.
- Durable Construction:Built with reliable ball bearings for a long service life in demanding outdoor condenser applications.
- Protected Design:Features a Totally Enclosed Non-Ventilated (TENV) motor enclosure to shield internal components from contaminants.
- Versatile Mounting:Supports both end-boss and shell-band mounting configurations for flexible installation.
- Reliable Operation:Utilizes a Permanent Split Capacitor (PSC) design for consistent, single-speed, direct-drive performance.
- Safety Certified:UL Recognized to meet established safety and quality standards for peace of mind.
