| Amperage Rating | : | 3.5 A |
| Depth | : | 5.625 in |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Height | : | 9.063 in |
| Motor HP | : | 1/3 HP |
| Motor RPM | : | 825 RPM |
| Motor Type | : | ECM |
| NEMA Frame Size | : | 39 |
| Number of Speeds | : | Variable |
| Package Quantity | : | 1 |
| Packaged Depth | : | 14.5 in |
| Packaged Height | : | 6.8 in |
| Packaged Width | : | 7.2 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 2.625 in |
| Shipping Weight | : | 10.55 lbs |
| Voltage Rating | : | 208/230 V |
| Width | : | 5.625 in |

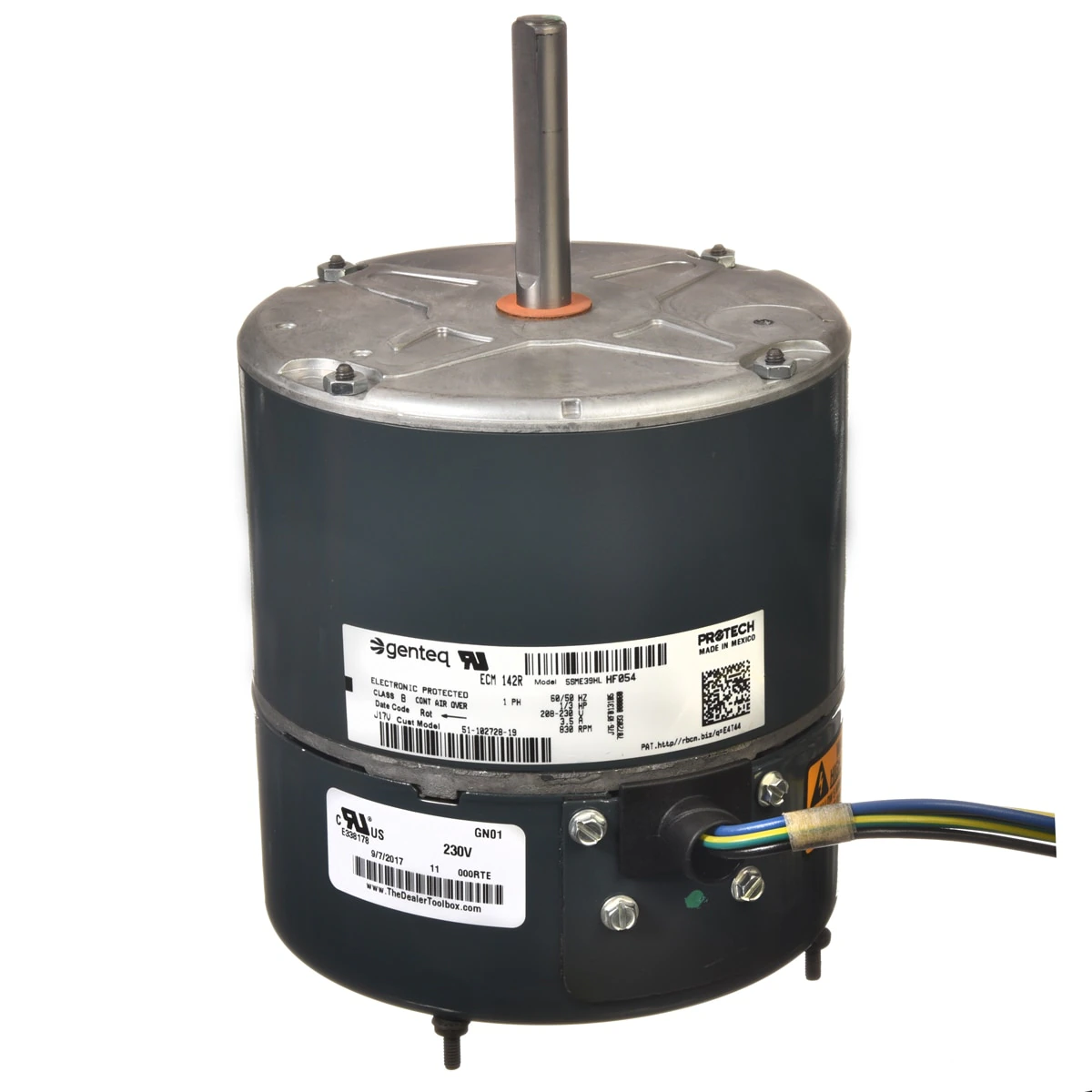

This ProTech 1/3 HP condenser fan motor is a genuine OEM replacement part designed for various Rheem, Ruud, and WeatherKing outdoor units. Featuring an advanced Electronically Commutated Motor (ECM) design, it delivers reliable, variable-speed performance to optimize system efficiency.This motor is an ideal component for two-stage outdoor compressors and heat pumps, helping the overall system reduce energy consumption while enhancing home comfort.
- Energy Savings:Maintains high efficiency across a wide range of operating speeds, resulting in significant reductions in electrical use.
- Improved Comfort:Helps create more even temperatures throughout the home with less swing between cycles and enhanced humidity removal when used in two-stage systems.
- Quiet Operation:Contributes to quieter system performance compared to conventional single-speed motors.
- Durable Design:Equipped with ball bearings for reliable, long-lasting service and continuous duty operation.
- Versatile Installation:Offers flexible mounting options, supporting both shell-band and thru-bolt configurations.
