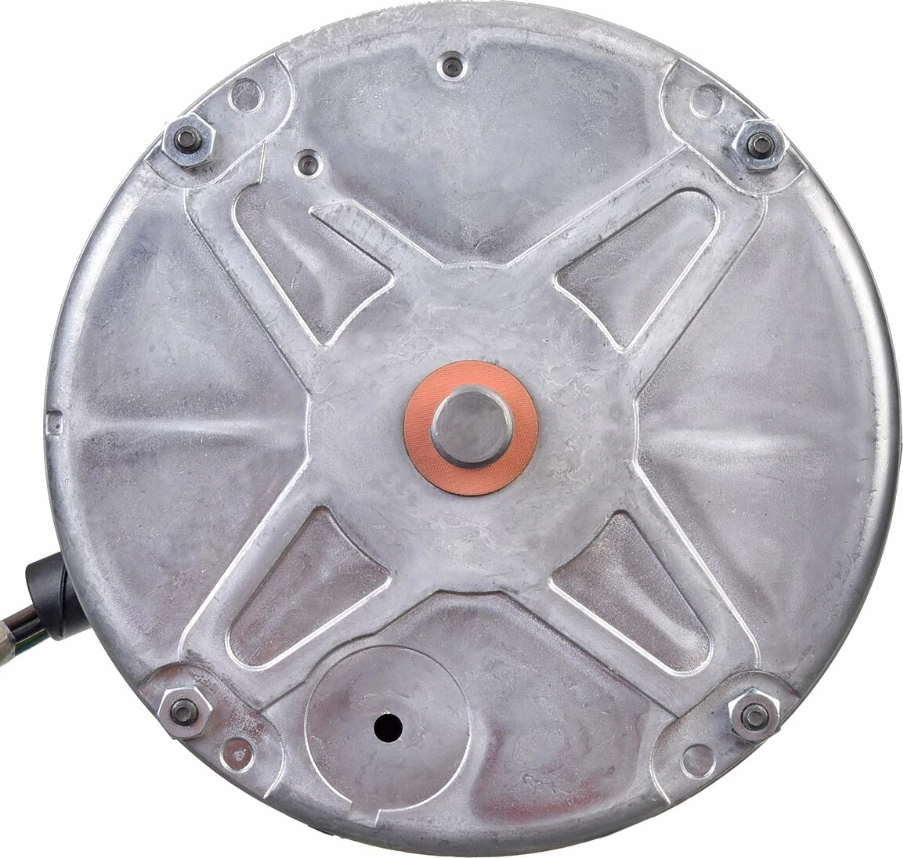

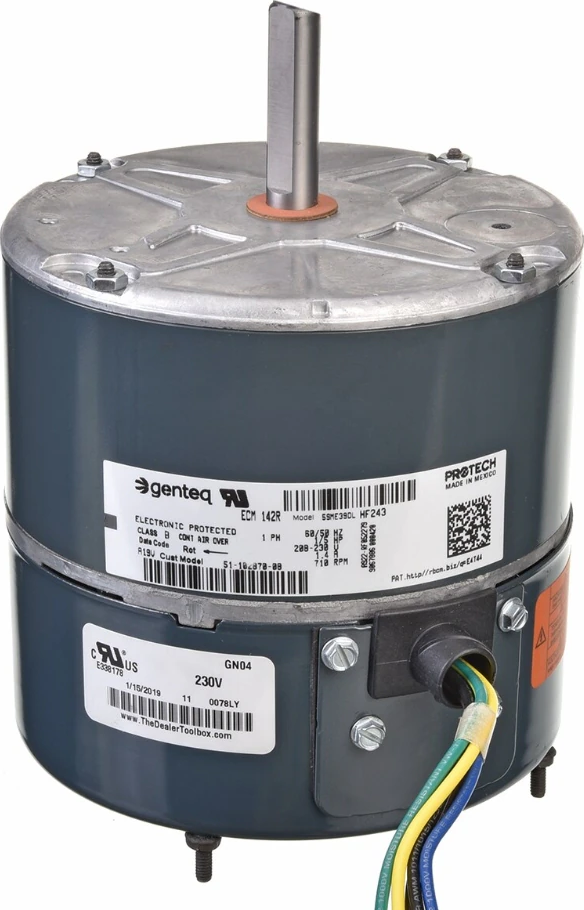

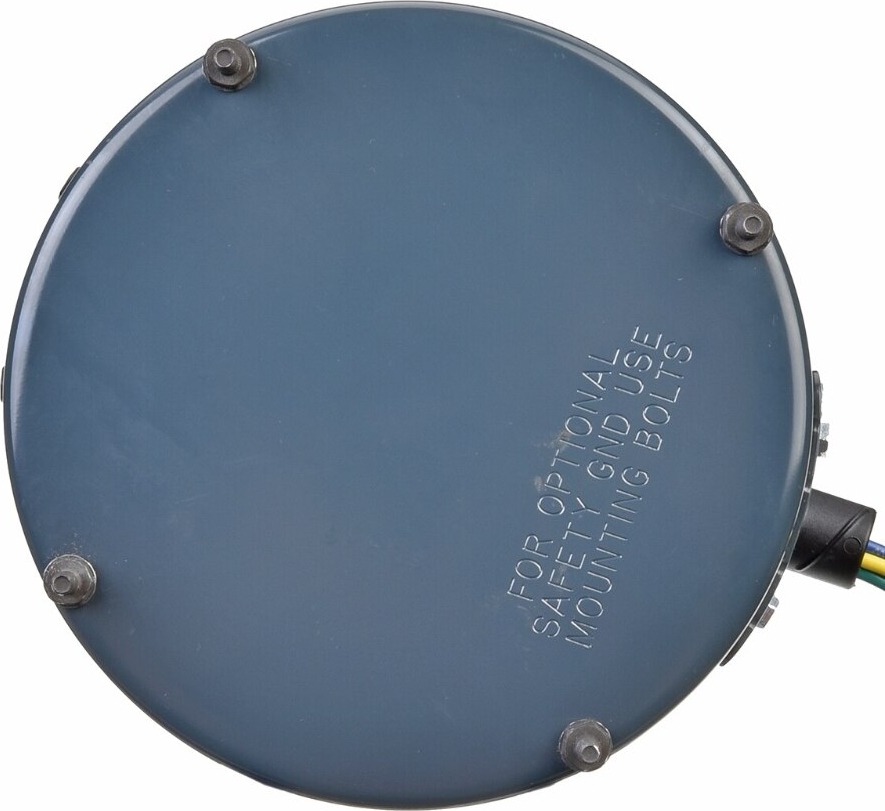

Rheem® 51-102870-08 ProTech 1/5 HP Variable-Speed ECM Condenser Fan Motor - 1,075 RPM, 208/230V, 1 ph, CCW
Rheem® 51-102870-08 ProTech 1/5 HP Variable-Speed ECM Condenser Fan Motor - 1,075 RPM, 208/230V, 1 ph, CCW
Manufacturer: Rheem® Manufacturing
Brand: Rheem®
Part #: 304786
MPN: 51-102870-08
CPN:
| Compatible Models | : | RPQL |
| Depth | : | 5.625 in |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Height | : | 5.5 in |
| Motor HP | : | 1/5 HP |
| Motor RPM | : | 1,075 RPM |
| Motor Type | : | ECM |
| Number of Speeds | : | Variable |
| Package Quantity | : | 1 |
| Packaged Depth | : | 14.5 in |
| Packaged Height | : | 6.85 in |
| Packaged Width | : | 7.3 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 1.75 in |
| Shipping Weight | : | 10.12 lbs |
| Voltage Rating | : | 208/230 V |
| Width | : | 5.625 in |
This ProTech ECM condenser fan motor is engineered to maintain high efficiency across a broad range of operating speeds. Its ability to run at reduced speeds results in significant energy savings and improved overall system performance.Ideal for creating two-stage outdoor compressors and heat pumps, this motor enhances indoor comfort by enabling better humidity removal, reducing temperature swings, and ensuring more even temperatures throughout the conditioned space.
