| Compatible Models | : | RA17~RAPM |
| Depth | : | 5.625 in |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Height | : | 8 in |
| Motor HP | : | 1/5 HP |
| Motor RPM | : | 825 RPM |
| Motor Type | : | ECM |
| NEMA Frame Size | : | 39 |
| Number of Speeds | : | Variable |
| Package Quantity | : | 1 |
| Packaged Depth | : | 14.5 in |
| Packaged Height | : | 6.9 in |
| Packaged Width | : | 7.3 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 2 in |
| Shipping Weight | : | 10.55 lbs |
| Voltage Rating | : | 208/230 V |
| Width | : | 5.625 in |

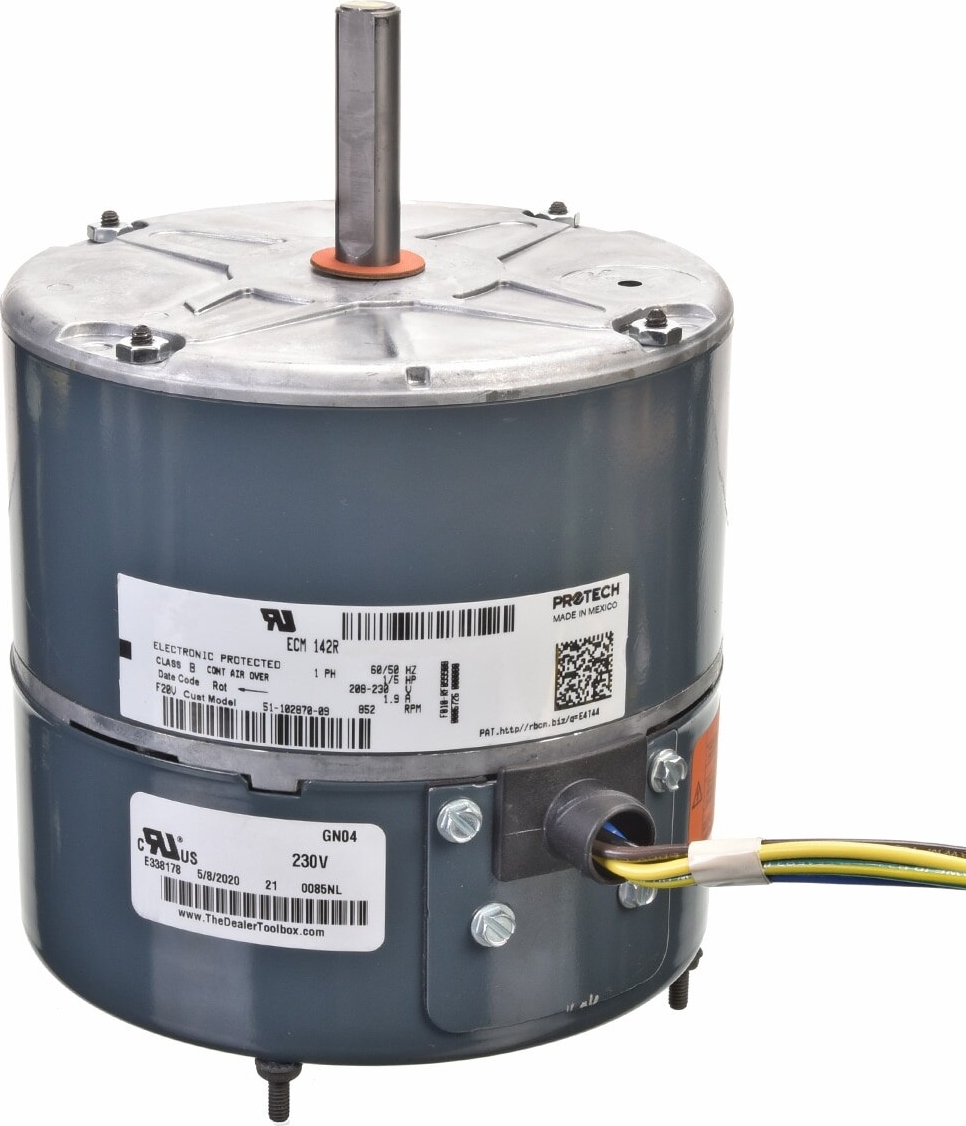

This ProTech ECM condenser fan motor is a genuine replacement part designed to restore original performance and efficiency. Its variable-speed capability allows it to deliver precise airflow, reducing energy usage while improving overall system operation.Ideal for use in two-stage outdoor compressors and heat pumps, this motor helps create a more comfortable indoor environment by contributing to quieter operation, enhanced humidity control, and more consistent temperatures.
- Variable-Speed Efficiency:Maintains high efficiency across a range of operating speeds to significantly reduce energy consumption.
- Enhanced Comfort:Improves system performance by enabling better humidity removal, more even temperatures, and reduced temperature swings between cycles.
- Quiet Performance:Contributes to quieter overall operation of the outdoor unit for minimal disturbance.
- Durable Design:Equipped with ball bearings for reliable, long-lasting performance.
- Direct Fit:Designed as a genuine Pro
- Tech part for use with Rheem condenser models RA17 and RAPM.
