| Amperage Rating | : | 5.3 A |
| Compatible Models | : | RA17~RA20~RP20 |
| Depth | : | 5.625 in |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Height | : | 8.875 in |
| Motor HP | : | 1/2 HP |
| Motor Type | : | ECM |
| NEMA Frame Size | : | 39 |
| Number of Speeds | : | Variable |
| Package Quantity | : | 1 |
| Packaged Depth | : | 17.2 in |
| Packaged Height | : | 8.4 in |
| Packaged Width | : | 8.5 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 1.25 in |
| Shipping Weight | : | 16.425 lbs |
| Voltage Rating | : | 208/230 V |
| Width | : | 5.625 in |

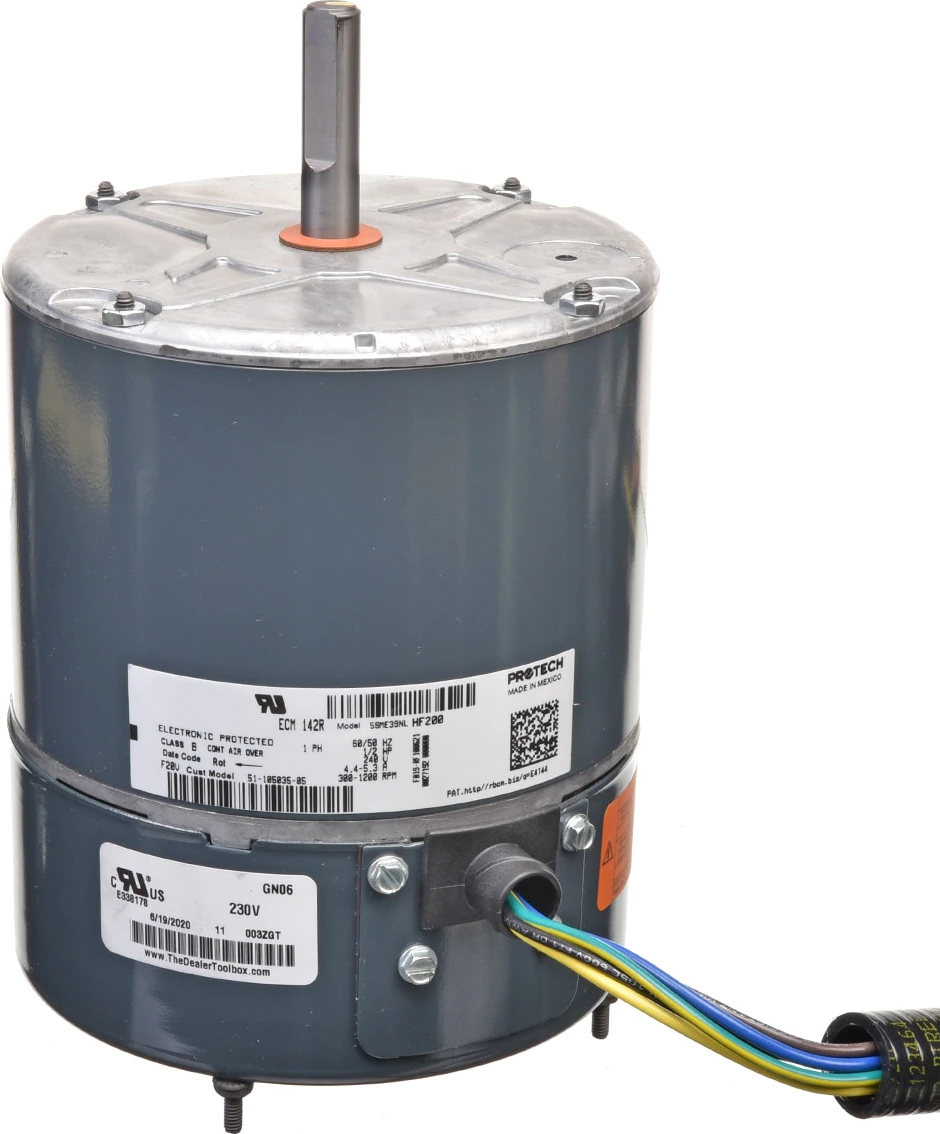

This ProTech variable-speed ECM condenser fan motor is a genuine replacement part designed for high-efficiency performance. It allows outdoor units to operate at lower speeds, reducing energy usage and enhancing overall system comfort.Ideal for creating two-stage operation in compatible air conditioners and heat pumps, this motor helps deliver more even temperatures, better humidity removal, and significantly quieter operation compared to single-speed motors.
- Energy Savings:High-efficiency ECM technology maintains performance across a range of operating speeds, significantly reducing energy consumption.
- Direct High-Voltage Operation:Designed to bring the benefits of ECM technology to 208/230
- V applications without requiring a step-down transformer.
- Durable Design:Equipped with ball bearings to ensure smooth, reliable operation and a long service life.
- System Compatibility:Serves as a direct replacement for condenser fan motors in Rheem models RA17, RA20, and RP20.
- Enhanced Comfort:Enables two-stage operation in outdoor compressors and heat pumps, leading to quieter performance and improved humidity control.
