| Amperage Rating | : | 3.6 A |
| Bearing Type | : | Ball |
| Compatible Models | : | RKKA |
| Depth | : | 6.5 in |
| For Use With | : | Packaged Unit |
| Function Type | : | Blower Motor |
| Height | : | 8.875 in |
| Motor HP | : | 1 HP |
| Motor RPM | : | 1,725 RPM |
| Motor Type | : | Belt Drive |
| NEMA Frame Size | : | 56 |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 14.1 in |
| Packaged Height | : | 7.6 in |
| Packaged Width | : | 8.4 in |
| Phase | : | 3 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 0.625 in |
| Shaft Length | : | 1.875 in |
| Shipping Weight | : | 23.05 lbs |
| Voltage Rating | : | 208/230~460 V |
| Width | : | 6.5 in |

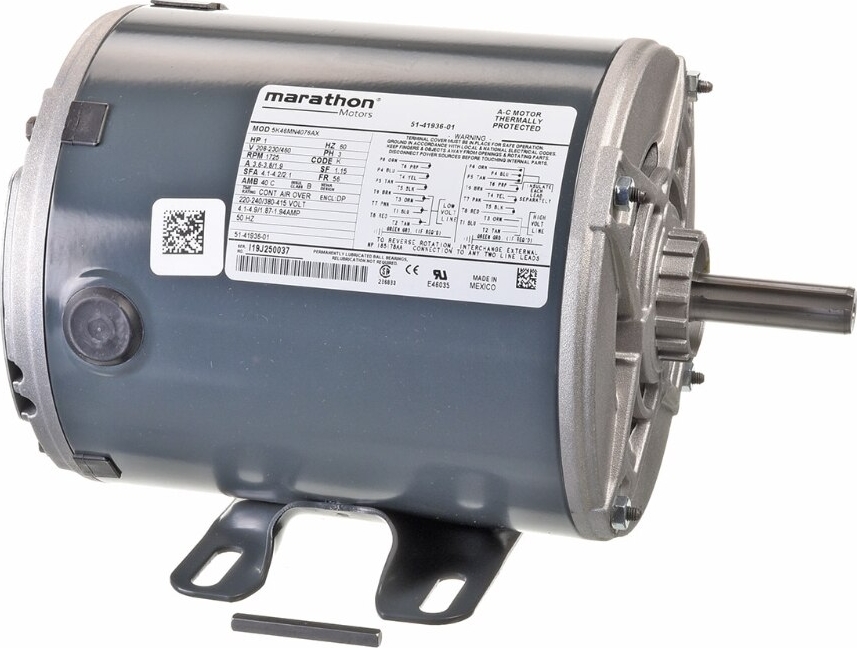

This ProTech® 1 HP belt drive blower motor is an OEM component designed to ensure efficient and reliable performance in HVAC systems. Engineered for versatility, it operates on 208V, 230V, or 460V 3-phase power, making it a dependable choice for both original equipment replacement and aftermarket retrofit applications.
