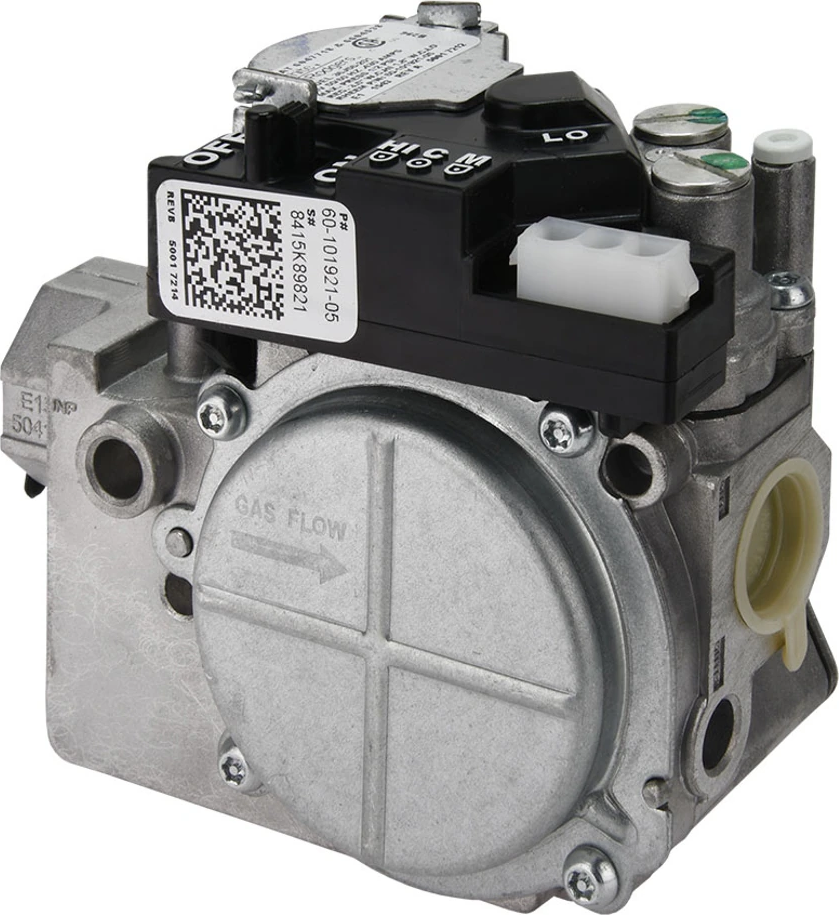

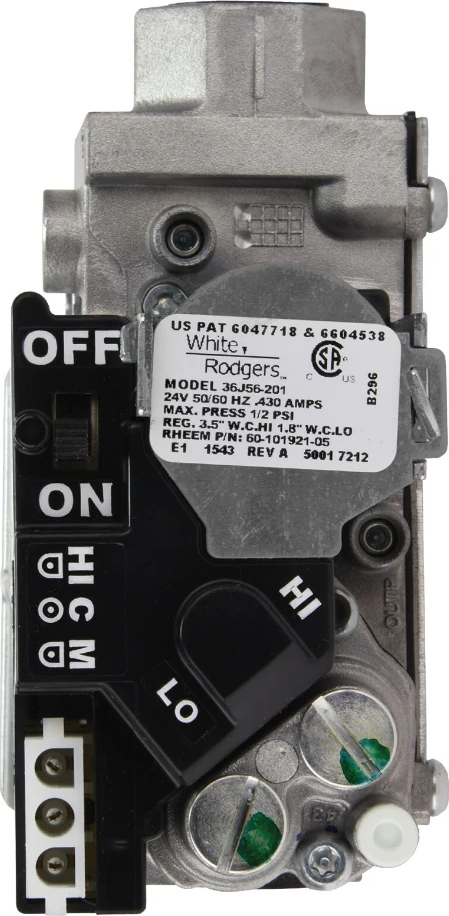

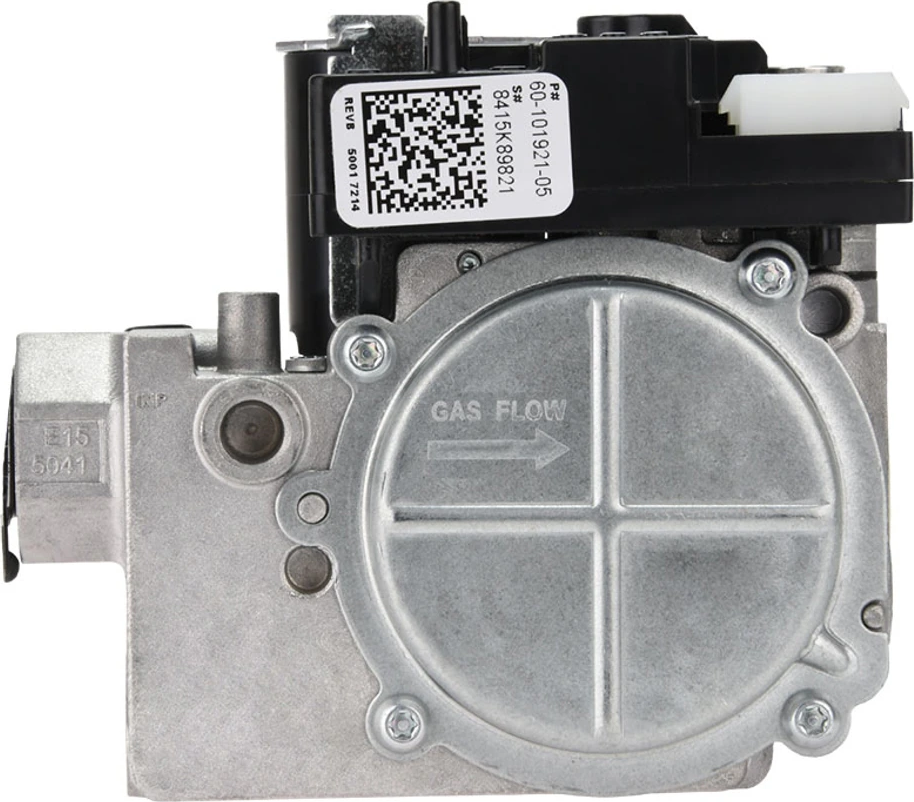

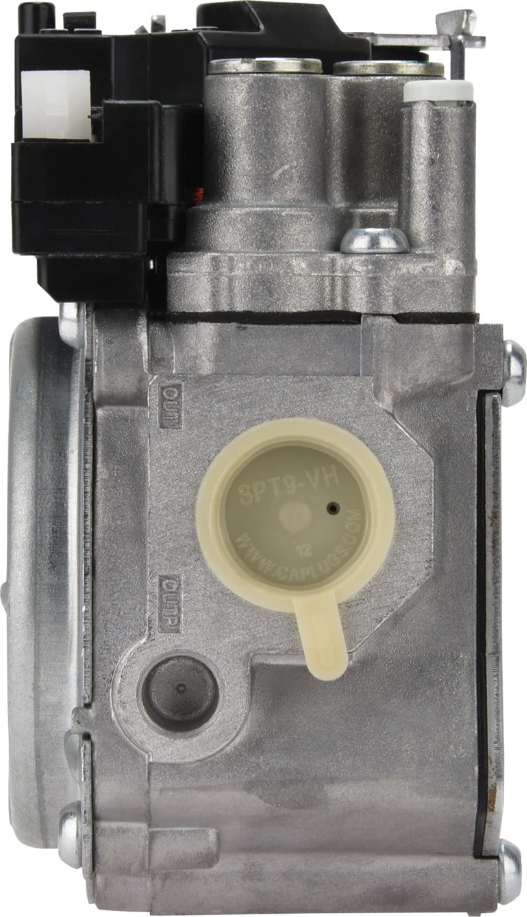

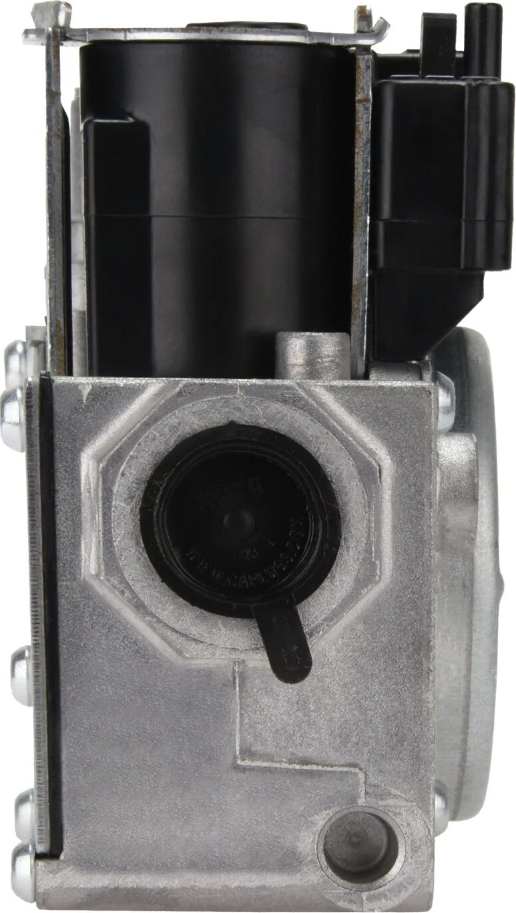

Rheem® 60-101921-05 36J Series Two-Stage Hot Surface / Direct Spark Gas Valve - 140,000 BTU/h, 1/2 in Inlet, 24V, For R96VA
Rheem® 60-101921-05 36J Series Two-Stage Hot Surface / Direct Spark Gas Valve - 140,000 BTU/h, 1/2 in Inlet, 24V, For R96VA
Manufacturer: Rheem® Manufacturing
Brand: Rheem®
Part #: 305349
MPN: 60-101921-05
CPN:
| BTU Rating (Custom) | : | 144,000 BTU/h |
| BTU Rating | : | 140,000 BTU/h |
| Compatible Models | : | R96VA |
| Compatible Unit Tonnage (Custom) | : | 12.0 Ton |
| Compatible Unit Tonnage | : | 12 Ton |
| Depth | : | 4.75 in |
| For Use With | : | Furnace |
| Fuel Type | : | Natural Gas |
| Function Type | : | Gas Valve |
| Gas Valve Inlet Size | : | 1/2 in |
| Gas Valve Inlet Type | : | NPT |
| Gas Valve Outlet Size | : | 1/2 in |
| Gas Valve Outlet Type | : | NPT |
| Height | : | 4.25 in |
| Ignition Type | : | Hot Surface~Direct Spark |
| Number of Stages | : | Two-Stage |
| Operator Type | : | Solenoid Operator |
| Package Quantity | : | 1 |
| Packaged Depth | : | 7.05 in |
| Packaged Height | : | 4.35 in |
| Packaged Width | : | 6.3 in |
| Product Family | : | 36J Series |
| Product Type | : | Gas Valve |
| Shipping Weight | : | 2.04 lbs |
| Voltage Rating | : | 24 V |
| Width | : | 2.438 in |
This Rheem® ProTech® 36J Series gas valve is a genuine replacement component for compatible two-stage furnaces, including R96VA models. It is engineered for use with Hot Surface Ignition (HSI) or Direct Spark Ignition (DSI) systems, providing reliable performance.Designed for high efficiency, this two-stage valve offers more precise control over heating output compared to single-stage alternatives, resulting in improved comfort and consistent temperatures.
