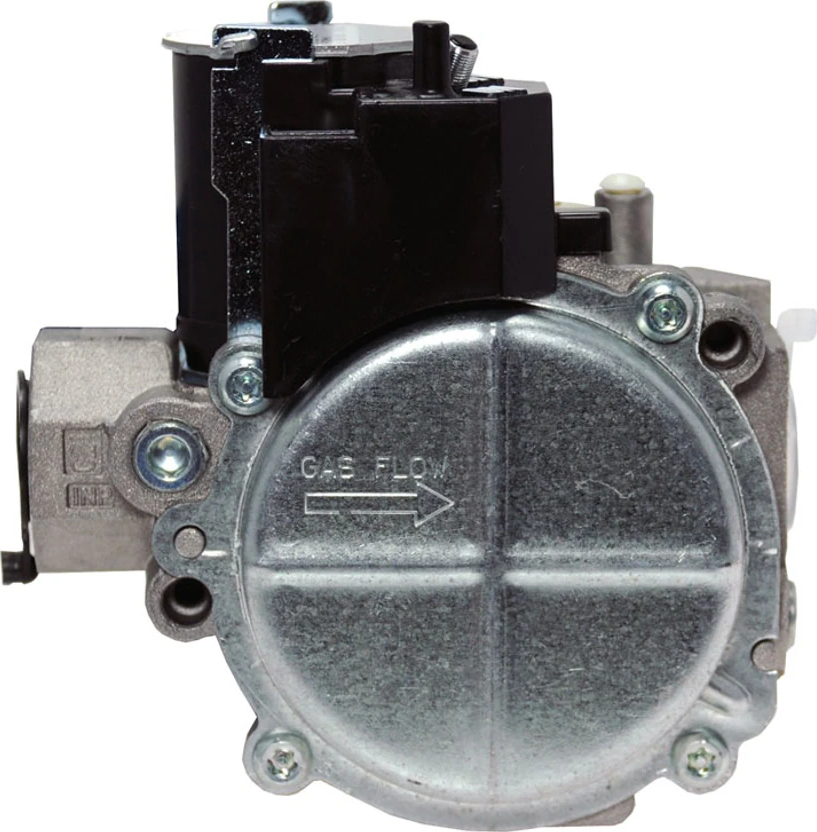

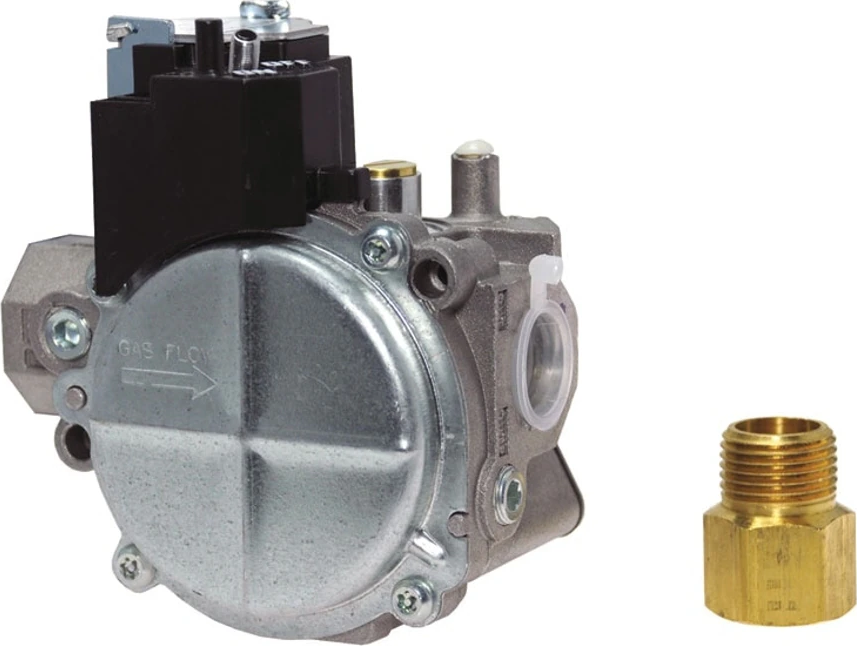

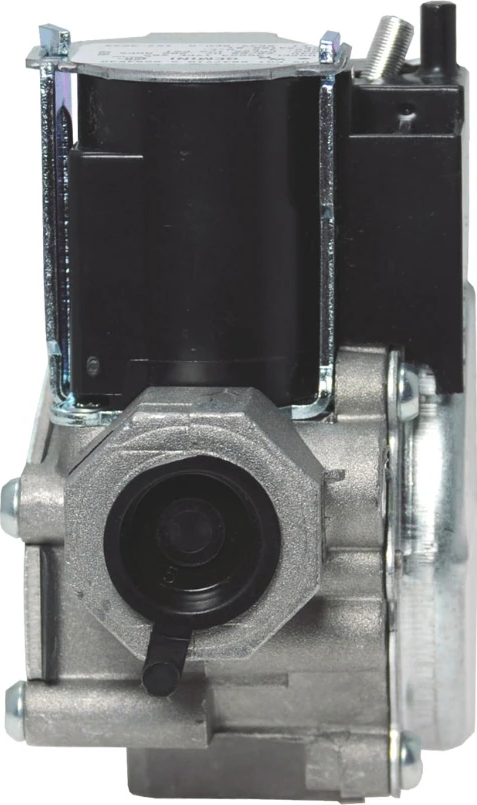

Rheem® 60-24180-81 36G Series Single-Stage Hot Surface / Direct Spark Gas Valve - 140,000 BTU/h, 1/2 in Inlet, 24V, For Models Incl RGLJ / RGLN / RGVJ
Rheem® 60-24180-81 36G Series Single-Stage Hot Surface / Direct Spark Gas Valve - 140,000 BTU/h, 1/2 in Inlet, 24V, For Models Incl RGLJ / RGLN / RGVJ
Manufacturer: Rheem® Manufacturing
Brand: Rheem®
Part #: 305367
MPN: 60-24180-81
CPN:
| BTU Rating (Custom) | : | 144,000 BTU/h |
| BTU Rating | : | 140,000 BTU/h |
| Compatible Models | : | RGDG~RGDJ~RGLG~RGLH~RGLJ~RGLN~RGPH~RGPJ~RGPN~RGPP~RGRA~RGRB~RGRJ~RGTA~RGTJ~RGVG~RGVH~RGVJ~RKKA~RRKA-A~RRMA-A |
| Compatible Unit Tonnage (Custom) | : | 12.0 Ton |
| Compatible Unit Tonnage | : | 12 Ton |
| Depth | : | 4 in |
| For Use With | : | Furnace |
| Fuel Type | : | Natural Gas |
| Function Type | : | Gas Valve |
| Gas Valve Inlet Size | : | 1/2 in |
| Gas Valve Inlet Type | : | NPT |
| Gas Valve Outlet Size | : | 1/2 in |
| Gas Valve Outlet Type | : | NPT |
| Height | : | 4.25 in |
| Ignition Type | : | Hot Surface~Direct Spark |
| Number of Stages | : | Single-Stage |
| Operator Type | : | Solenoid Operator |
| Package Quantity | : | 1 |
| Product Family | : | 36G Series |
| Product Type | : | Gas Valve |
| Product Weight | : | 1.665 lbs |
| Voltage Rating | : | 24 V |
| Width | : | 2.438 in |
This 36G Series gas valve is a single-stage control designed for modern, high-efficiency natural gas heating systems. It is engineered for use with non-piloted intermittent ignition systems, supporting both hot surface and direct spark applications. The valve's compact design is built to deliver maximum capacity and ensure reliable, efficient furnace operation.
