| Amperage Rating | : | 60 A |
| Depth | : | 2.84 in |
| Fused | : | No |
| Installation / Mounting Type | : | Wall Mount |
| Length | : | 7.38 in |
| Material | : | Steel |
| NEMA Enclosure Type | : | Type 3R |
| Package Quantity | : | 1 |
| Packaged Depth | : | 0.84 in |
| Packaged Height | : | 0.35 in |
| Packaged Width | : | 0.74 in |
| Phase | : | 1 ph |
| Product Type | : | DISCONNECTS |
| Shipping Weight | : | 2.45 lbs |
| Voltage Rating | : | 230 V |
| Width | : | 5.19 in |

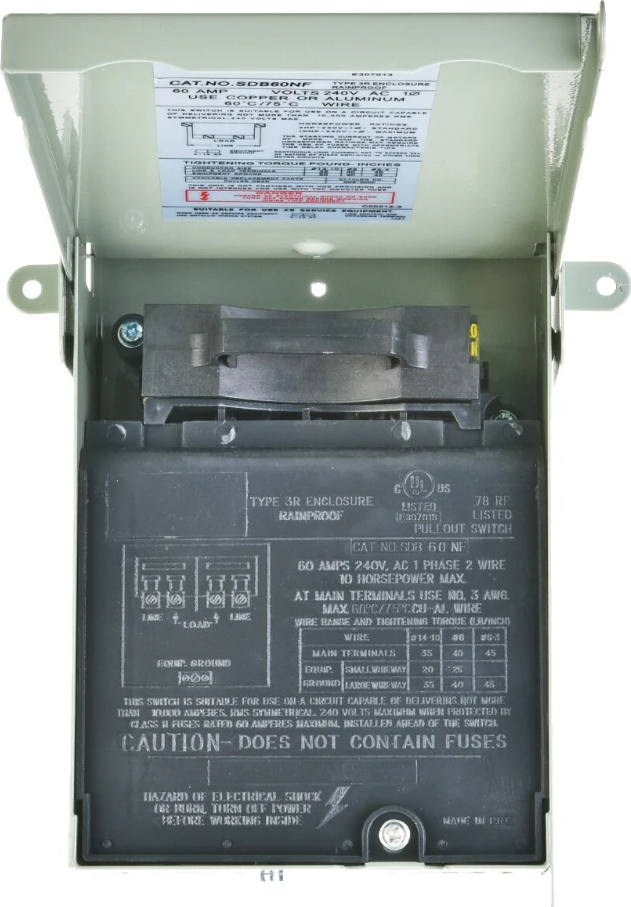

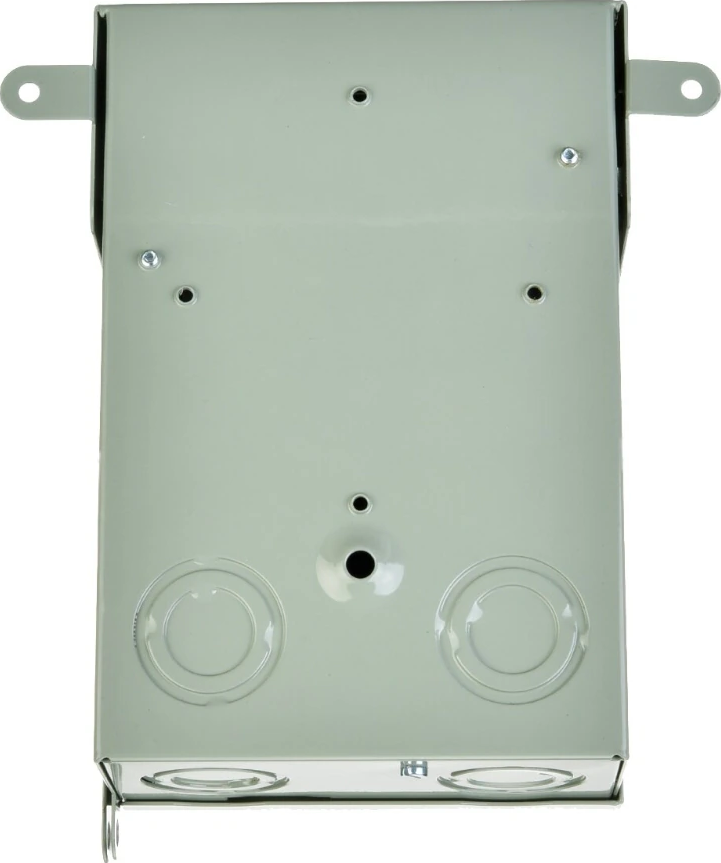

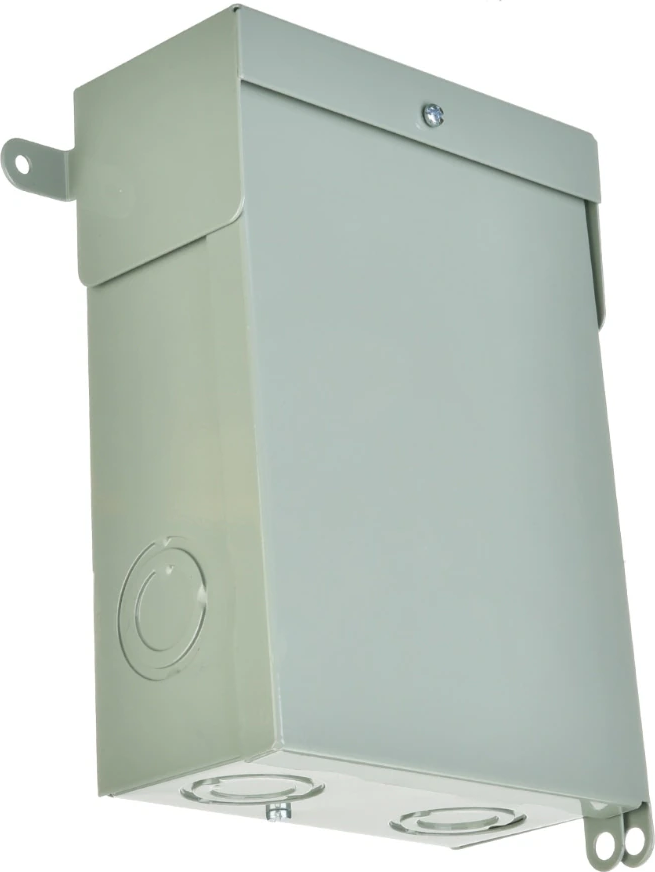

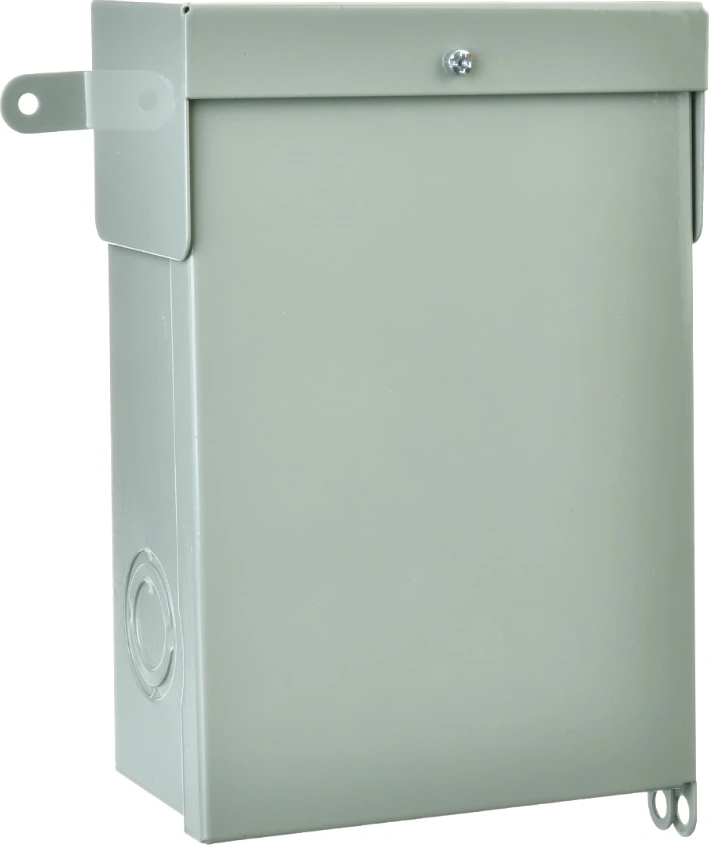

This 60A non-fused pullout disconnect provides a safe and reliable method for servicing high-voltage HVAC appliances. It is designed to completely de-energize an electrical circuit, giving technicians a clear and visible confirmation that the power is off before beginning work.Constructed from durable steel with a NEMA 3R rated enclosure, this disconnect is suitable for outdoor installations where it will be exposed to rain or sleet. It is rated for 230V, single-phase applications.
