| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 34,200 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 29.75 in |
| EER (Custom) | : | 10.0~11.0~12.0 |
| EER | : | 10.0-12.5 |
| ENERGY STAR Certified | : | No |
| Height | : | 27 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 20 A |
| Minimum Circuit Ampacity (MCA) | : | 15 A |
| Model Number | : | RA13 |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 32.38 in |
| Packaged Height | : | 28.75 in |
| Packaged Width | : | 32.38 in |
| Phase | : | 3 ph |
| Product Family | : | Classic |
| Product Weight | : | 157 lbs |
| Refrigerant Type | : | R-410A |
| SEER (Custom) | : | 13.0~14.0~15.0 |
| SEER | : | 13.0-15.0 |
| Shipping Weight | : | 164 lbs |
| Sound Level | : | 77 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 29.75 in |

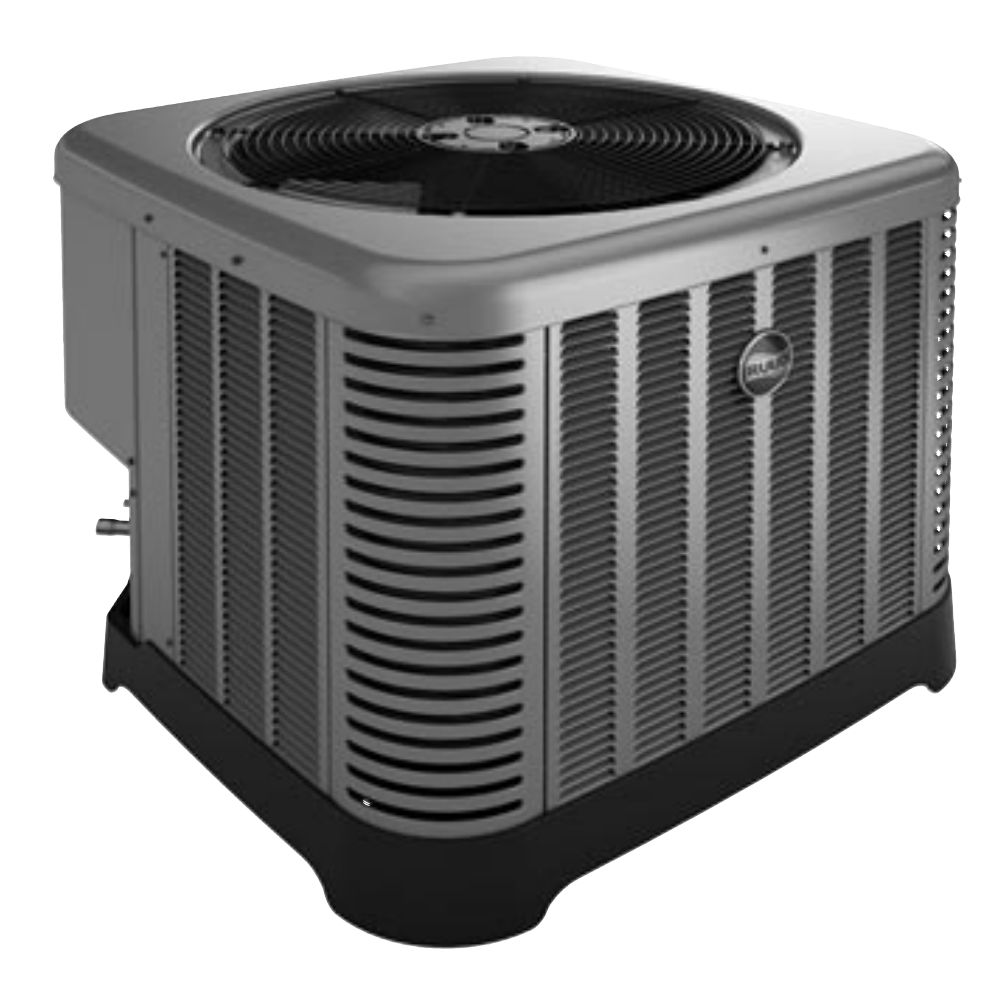

The Rheem Classic RA13 Series air conditioner is a reliable single-stage condenser designed for consistent, efficient cooling. It features a durable scroll compressor and a robust cabinet with a powder-coat finish to ensure a long service life.This unit is engineered to simplify installation and maintenance, with features like the PlusOne™ expanded valve space and triple service access. The composite base pan not only enhances durability by eliminating corrosion but also helps reduce operational sound.
- Durable Construction:Built with a powder-coated paint finish, rust-resistant screws, and curved louver panels for long-lasting coil protection and cabinet strength.
- Reliable Compressor:Features a scroll compressor with 70% fewer moving parts for higher efficiency and increased reliability over the unit's lifespan.
- Simplified Service:Designed for technicians with Plus
- One™ features, including expanded valve space and triple service access for faster and easier repairs.
- Quiet Operation:A composite base pan dampens sound and eliminates corrosion, contributing to quieter performance and enhanced durability.
- Easy Maintenance:The single-row condenser coil design and quick-release louver panels allow for thorough cleaning to maintain out-of-the-box performance.
- Quick Information Access:An on-unit QR code provides immediate access to technical information, streamlining service calls.
